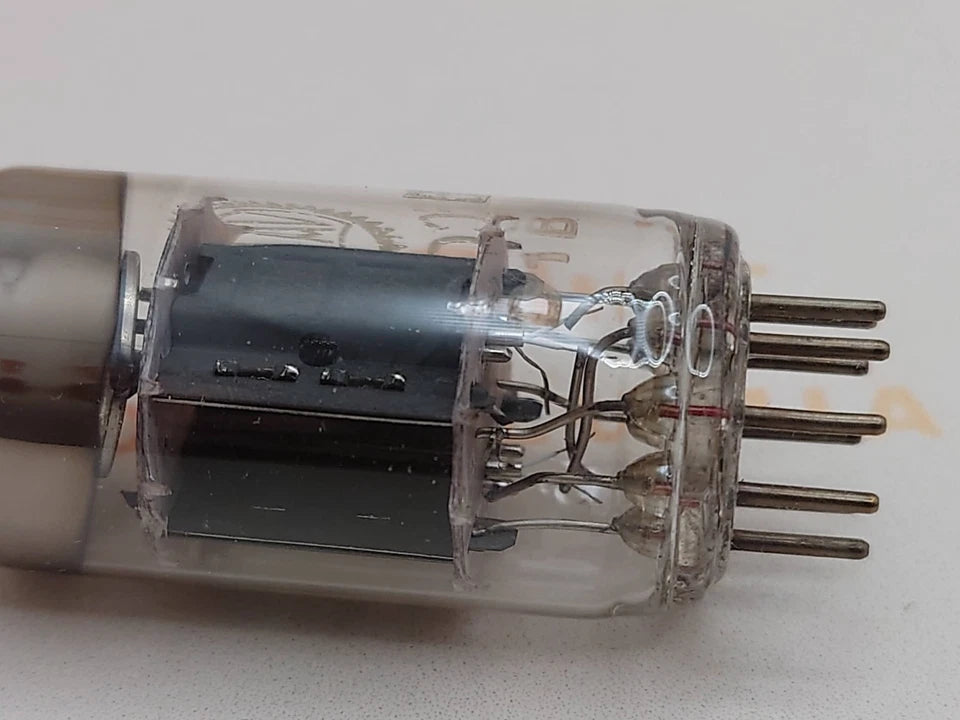

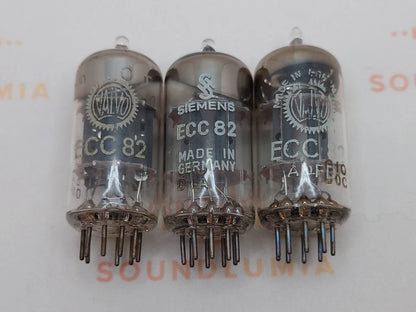

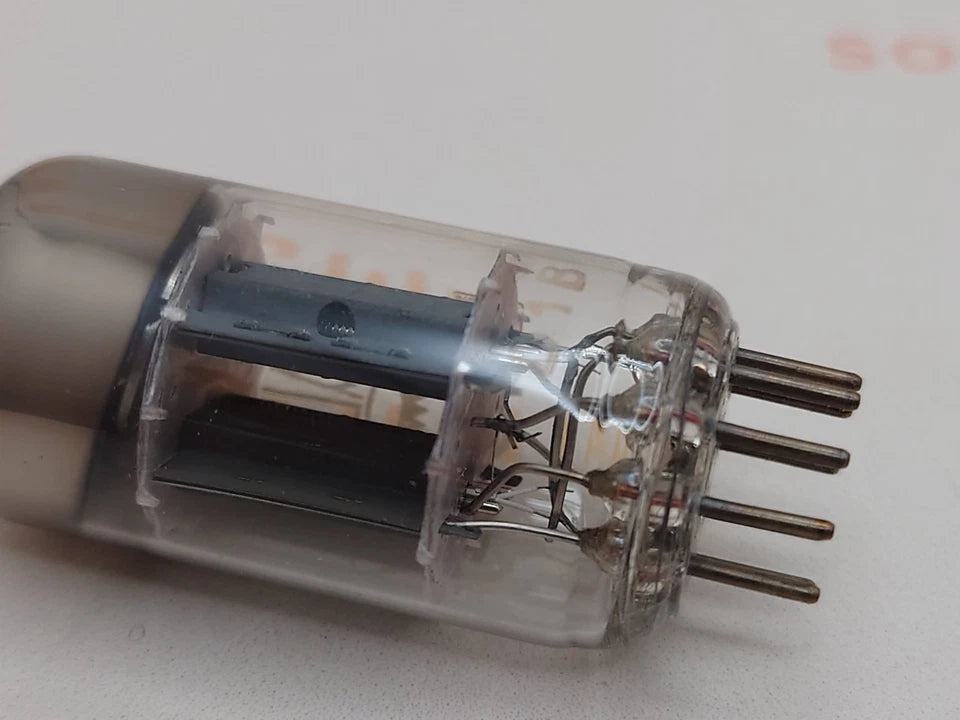

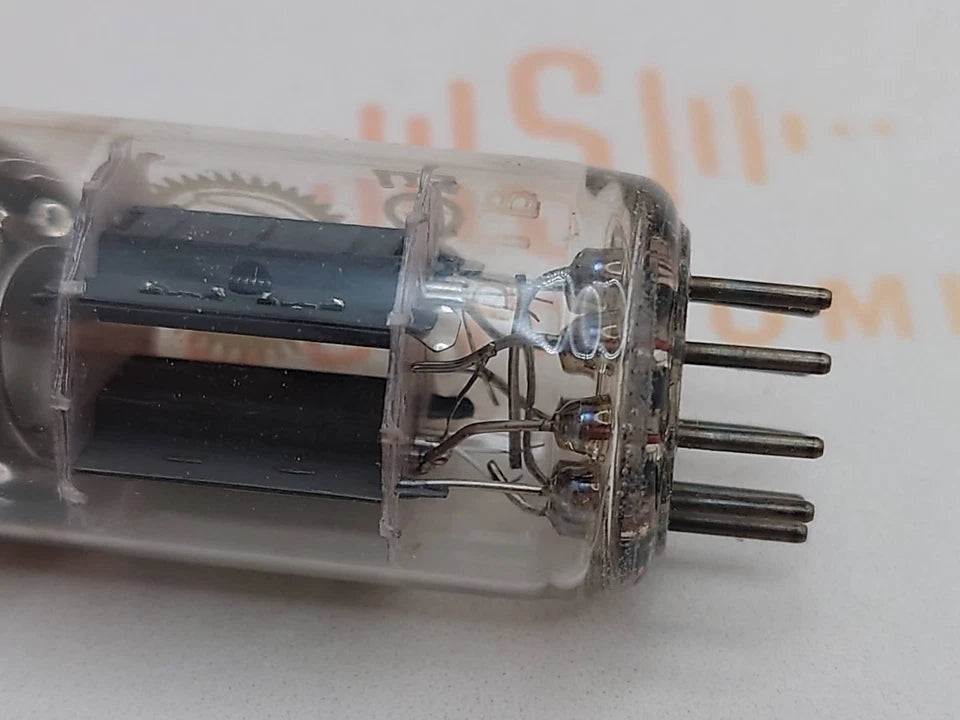

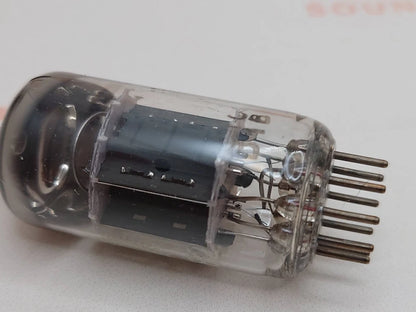

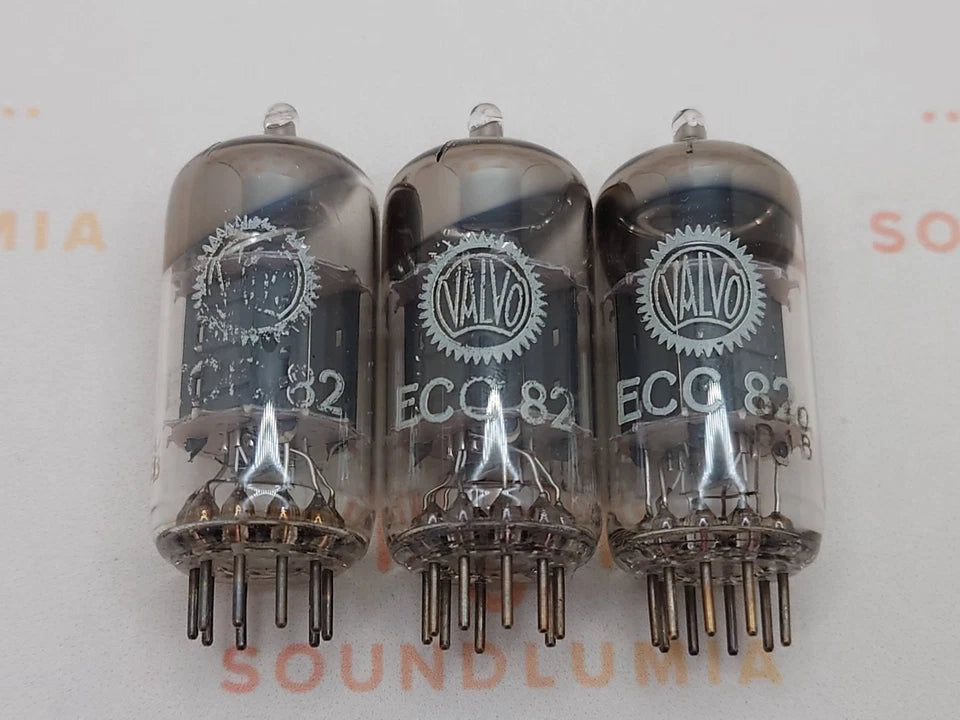

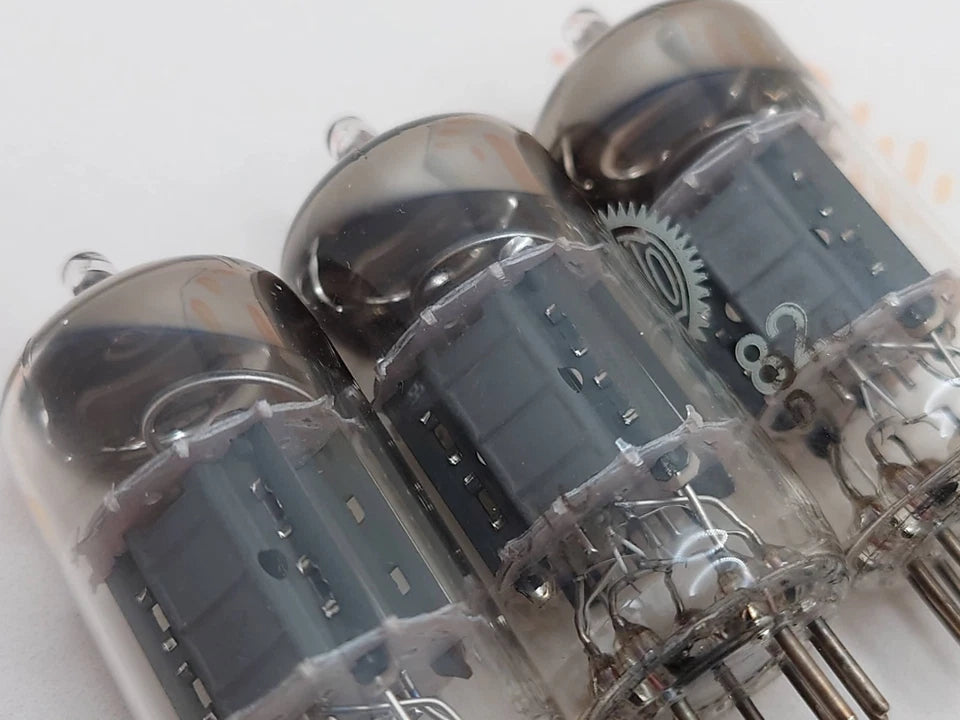

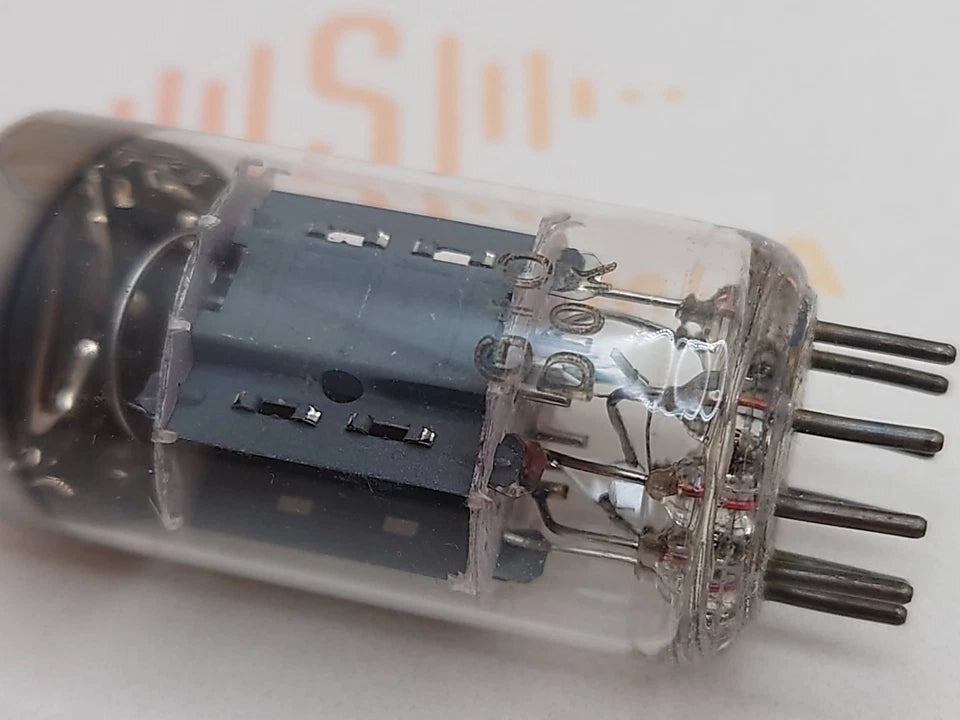

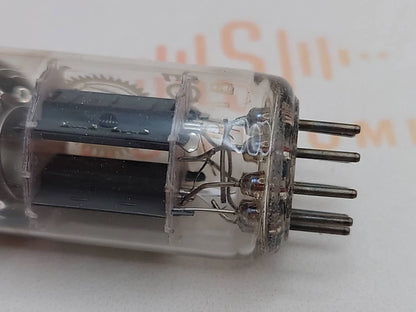

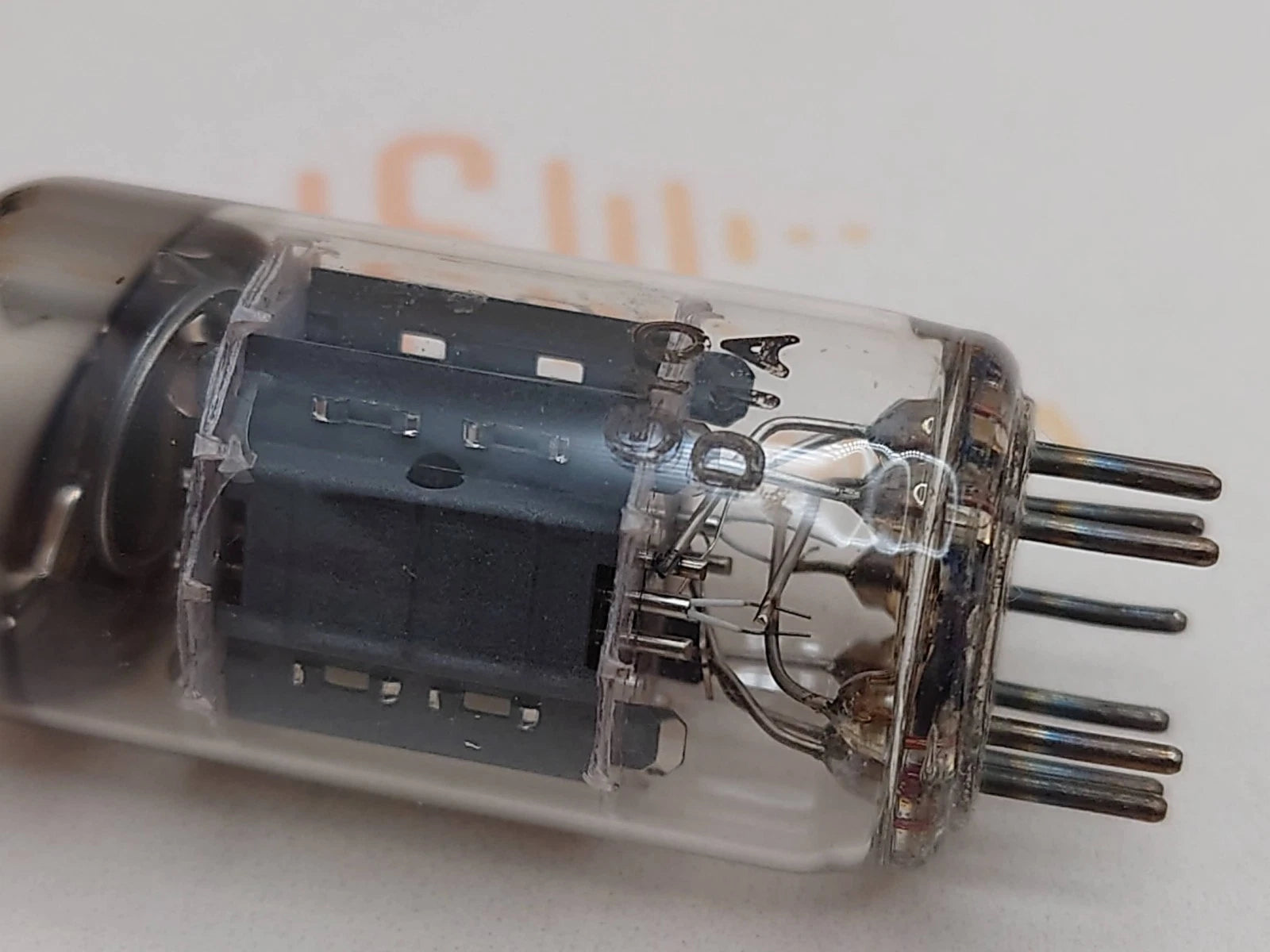

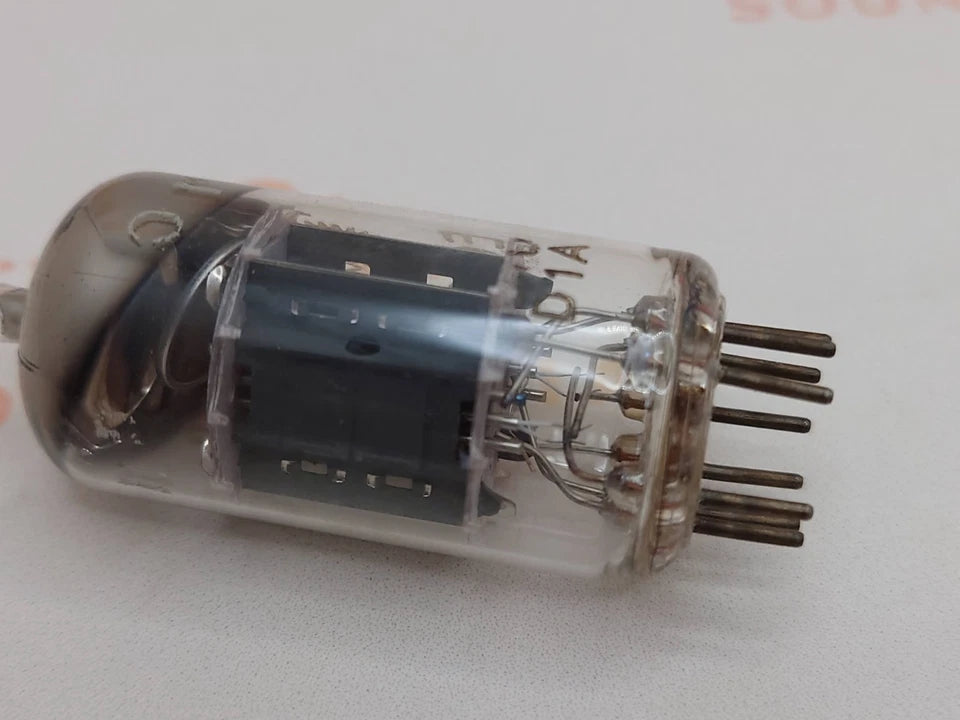

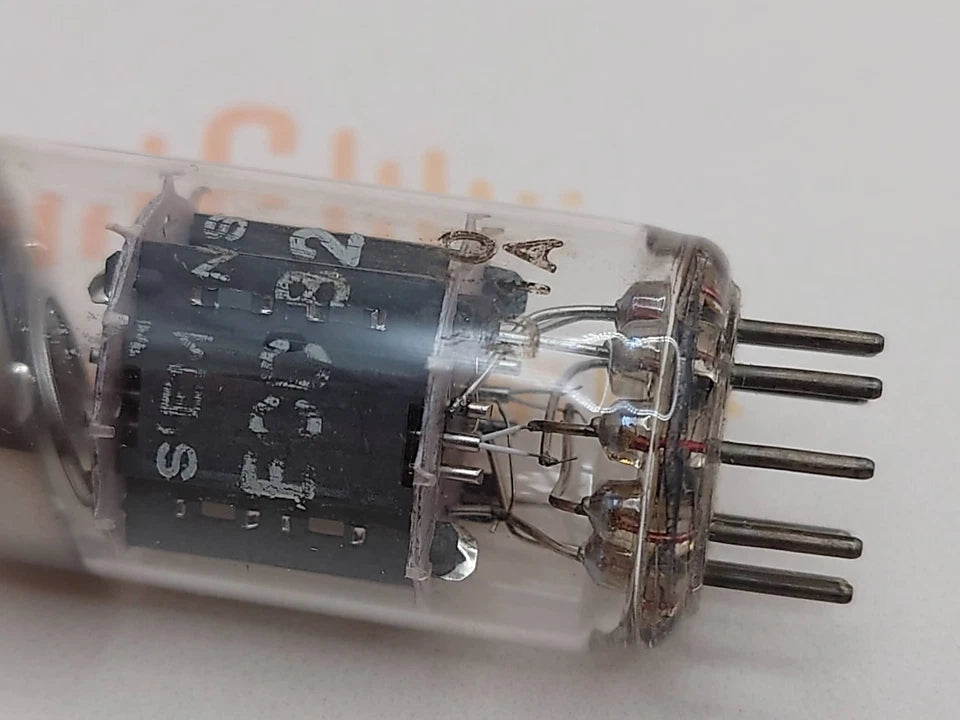

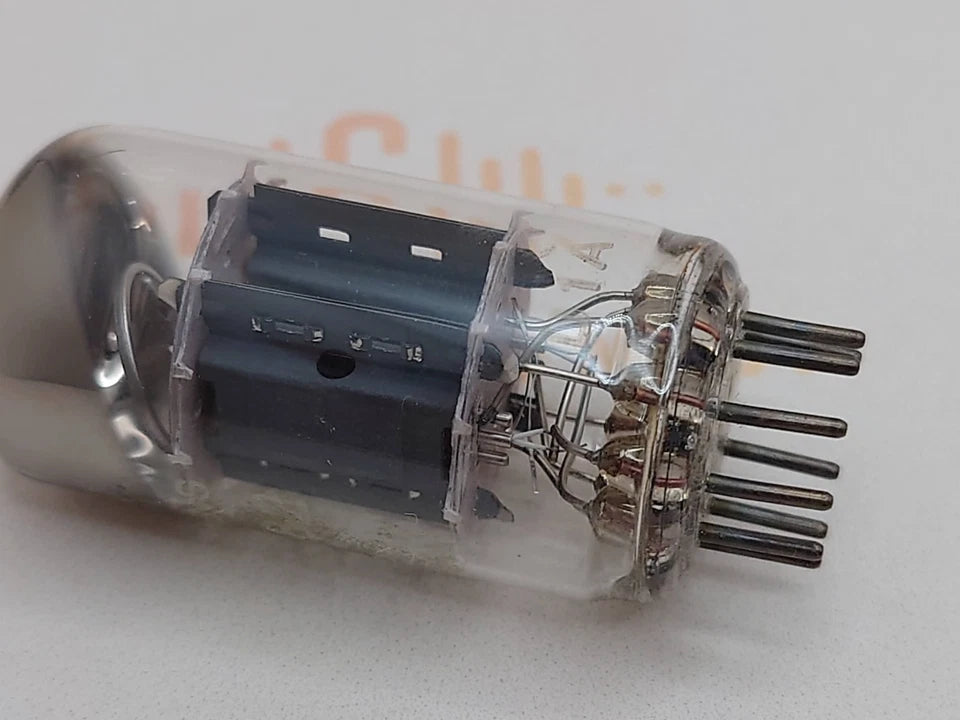

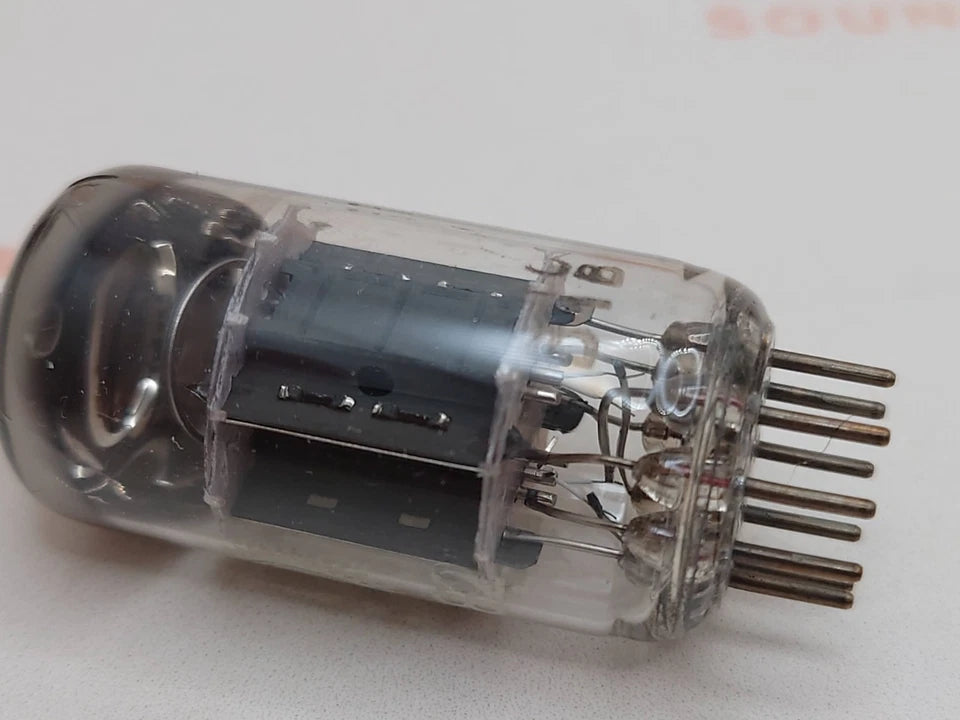

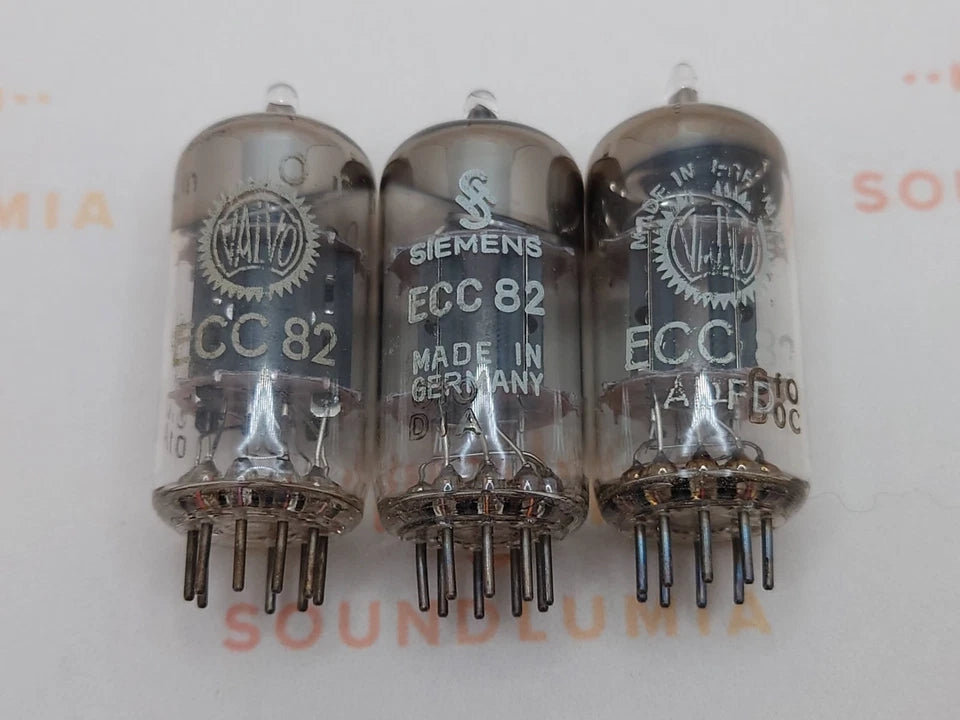

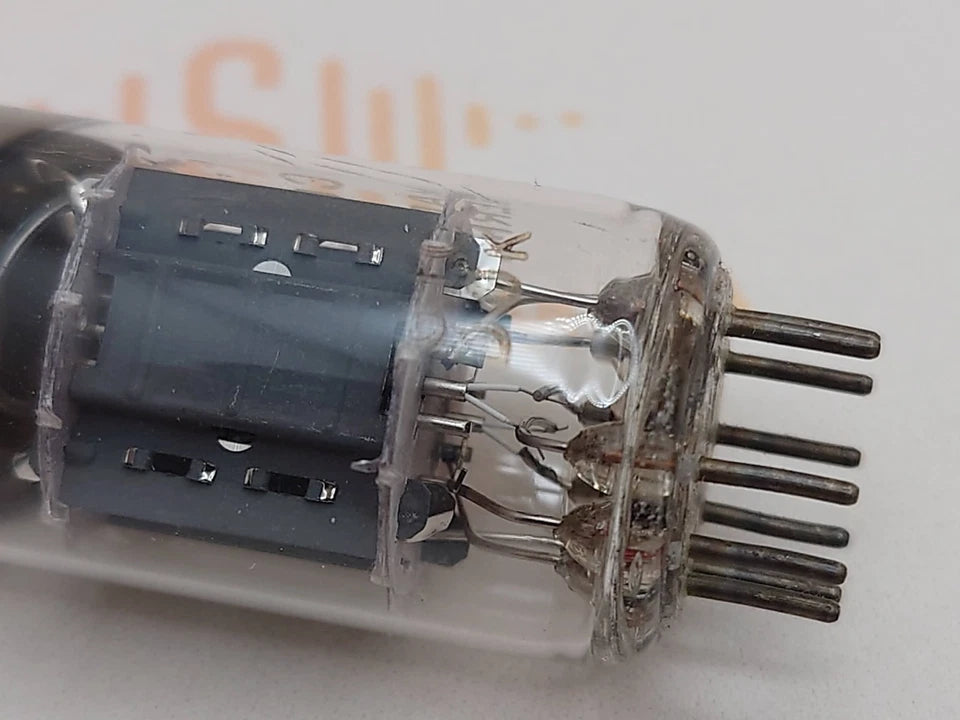

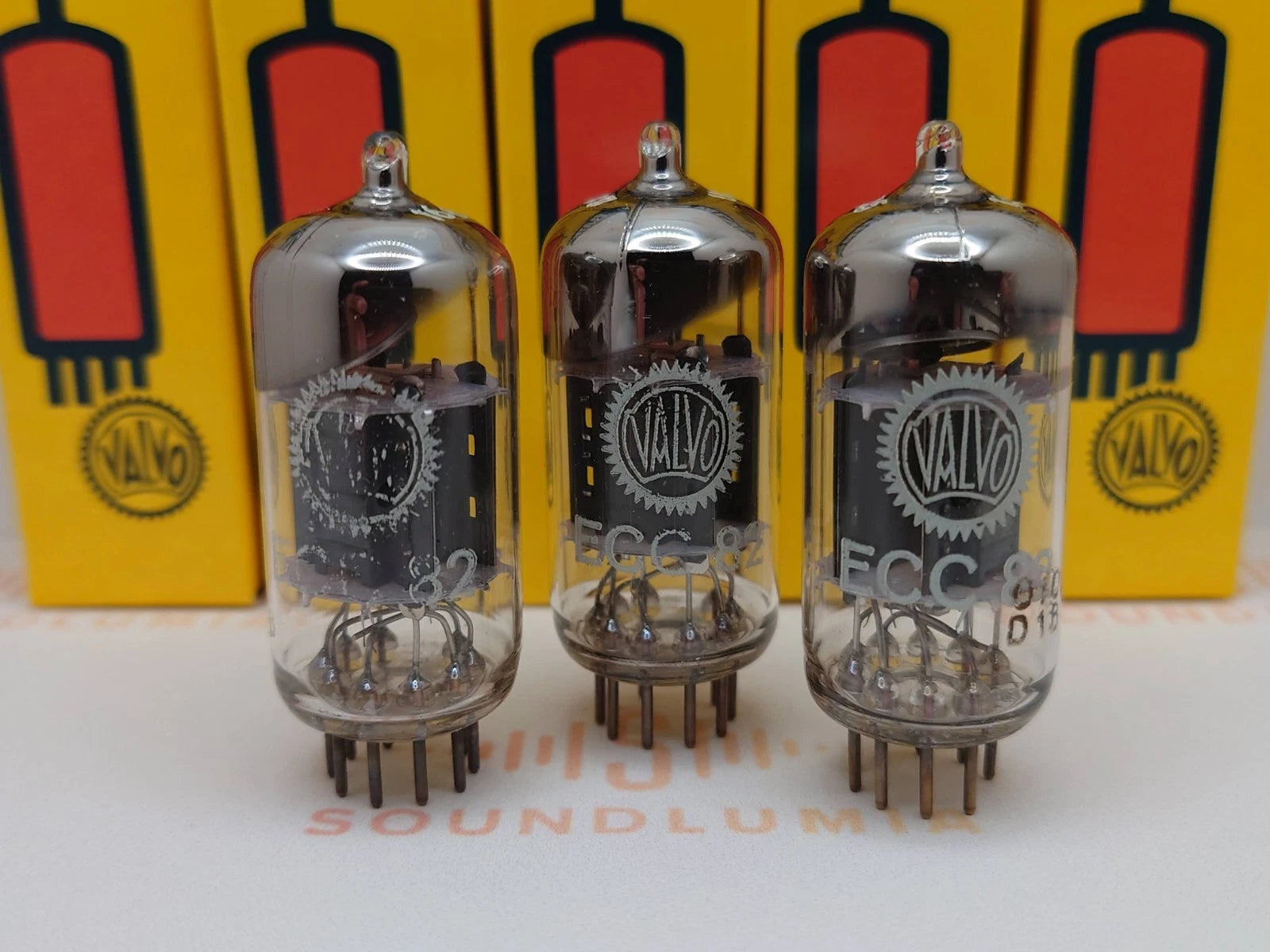

Valvo Hamburg ECC82 Short Plates 30° O-Getter

Soundlumia's Opinion

Compared to their 45° angled big brother, these "ultra clarity" tubes are much more merciful at lossy digital sound sources such as high-definition streaming video/audio. Yet distortion in lossy sound during playback can still be heard. Dedicated CD transport or lossless playback on PC/Mac (not on mobile devices) are recommended if you want to fully unleash these tubes' amazing power in your system. Phono, if available, is highly recommended to be used as sound source because analog input is lossless by definition.

To get everyone on the same page, we will be comparing these to the Hamburg-made Valvo ECC82's with the regular getter support only, which is already an excellent choice for audiophiles looking for distinctive German tube sound: the grip is tighter with a great deal of substance added to the overall sound presentation, especially to the midrange, which feels much warmer and more intimate; the 30° getter support seems to have "bent" the sound stage into a flattened panoramic view, which is still holographic but is much wider and holds so much more information about your sound: everything can be heard (or rather "seen"), whether you knew it existed before or not, or whether you think it should exist or not; the naturalness of sound is not heard on any other tubes in the sense that these tubes tell you what IS and what IS NOT in your sound, e.g. you can tell the differences between the sound of natural rain in some movies and the sound of fake rain (water poured from hoses above the stage) in other movies; the clarity of sound is "clinical" - as in how your doctor would say you are either sick or not sick and absolutely no muddiness or ambiguity in between should be allowed - perhaps that's why they can get punishing (luckily not as much as the 45° angled version) to lossy digital sound sources; the musicality is unequalled as by now the only thing left in your music for you to hear is EVERYTHING in your music as long as the sound source is right.

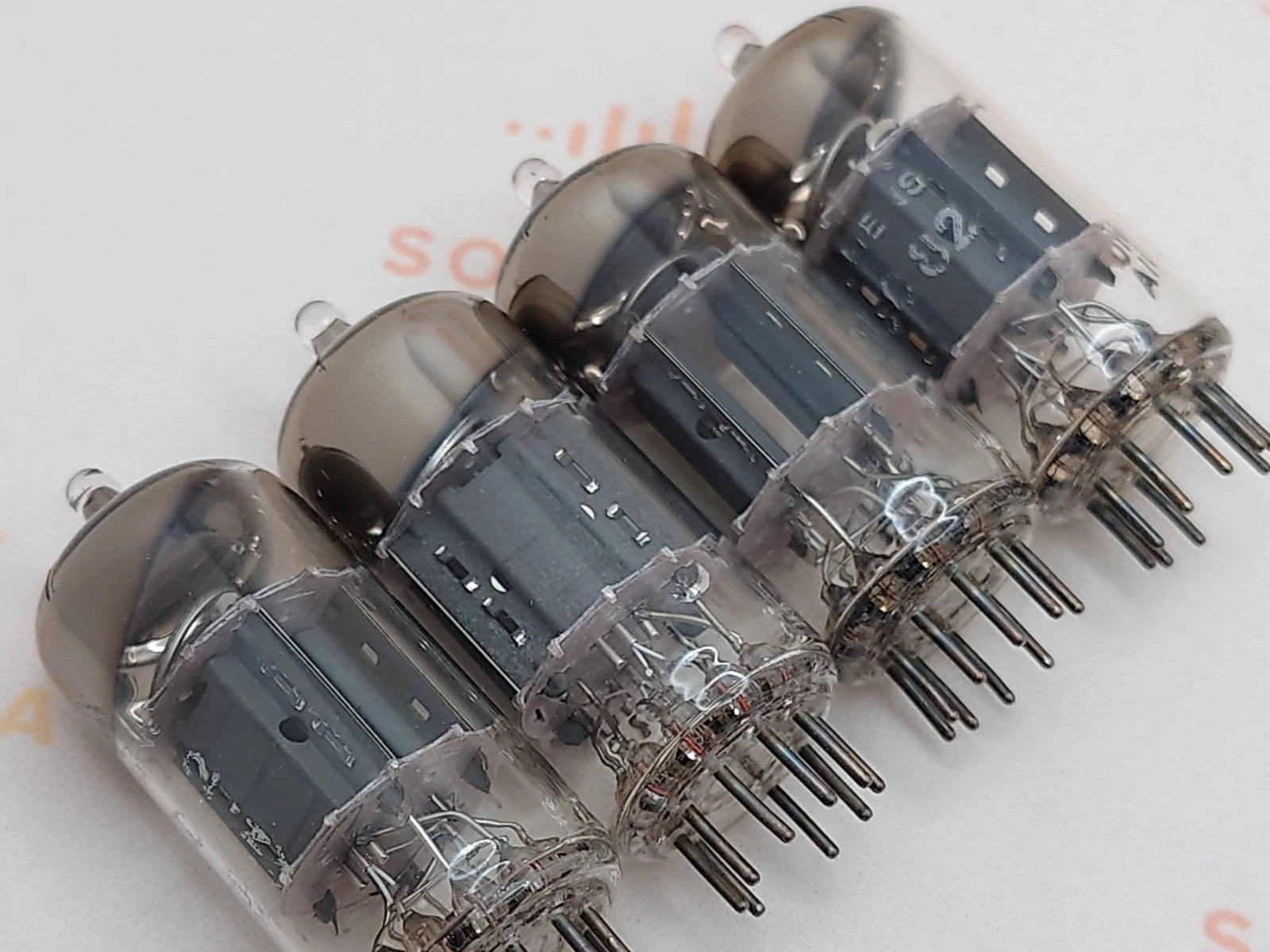

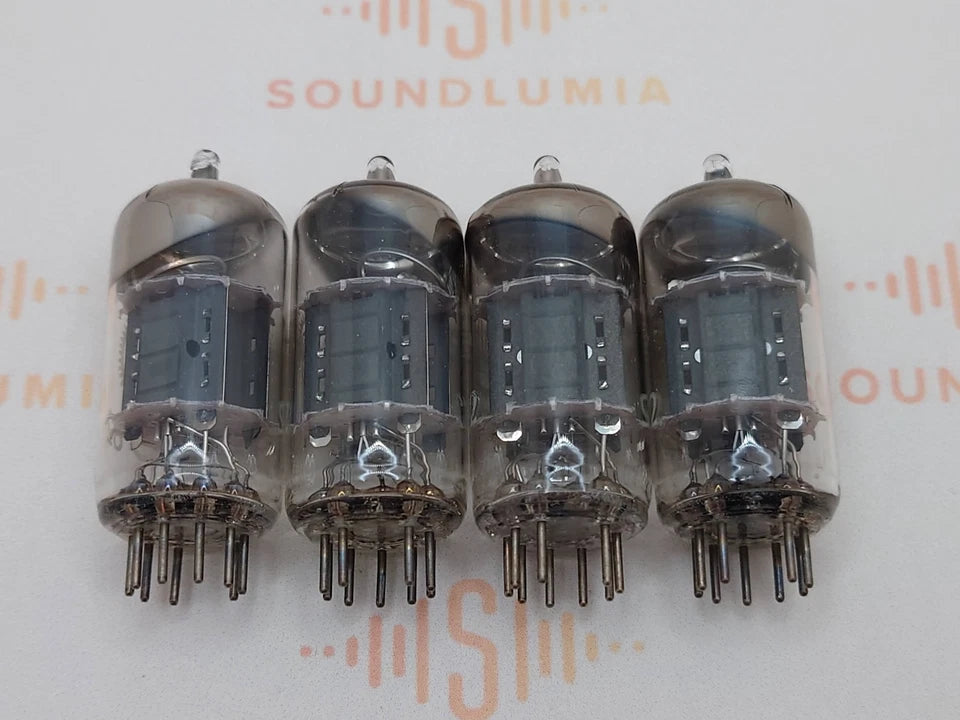

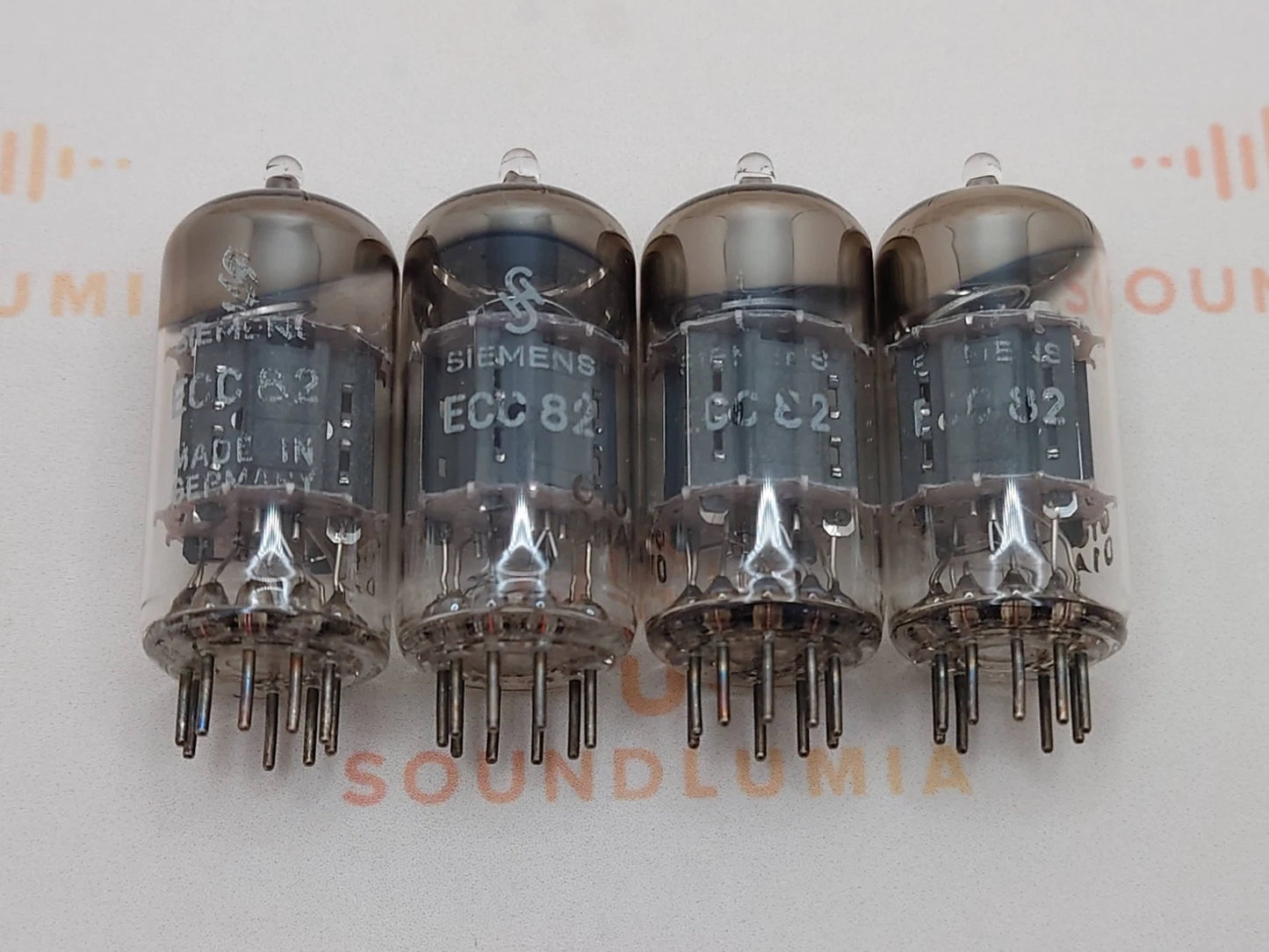

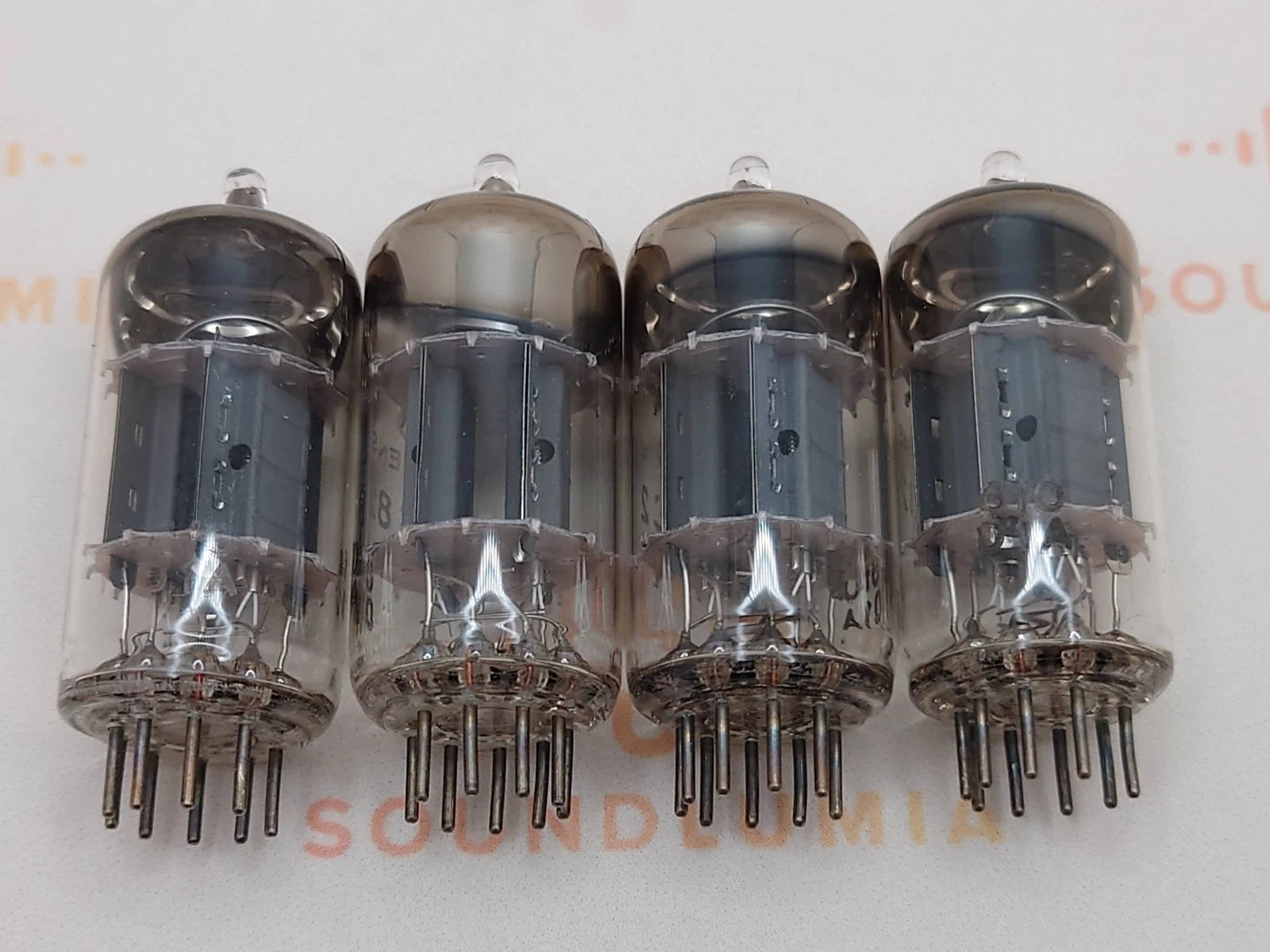

Matched Quad ( 1961 Gf0 - Strong )

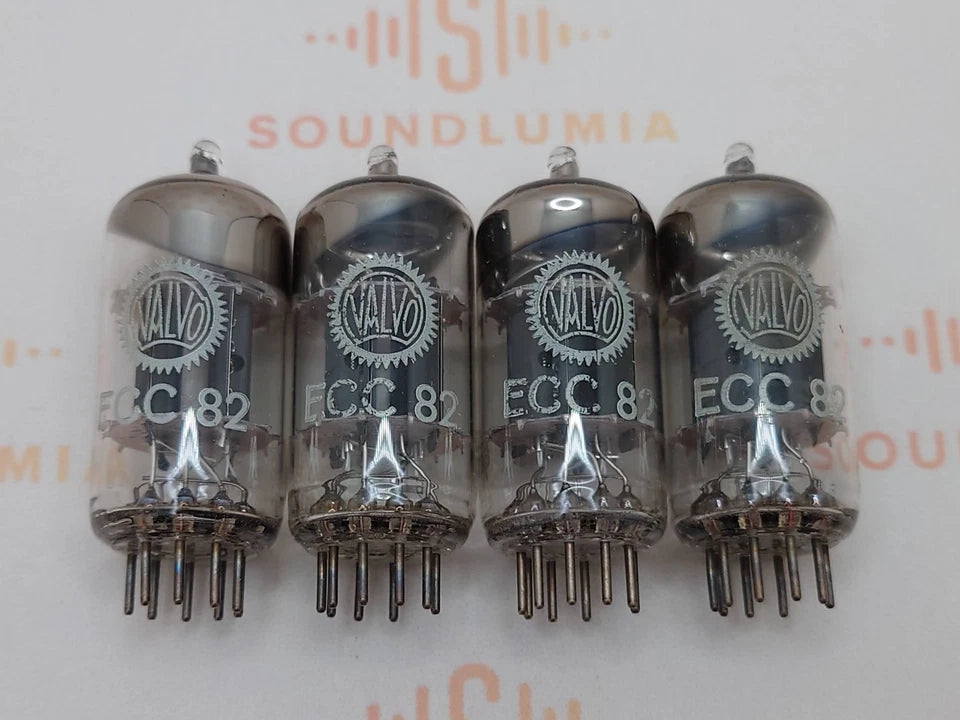

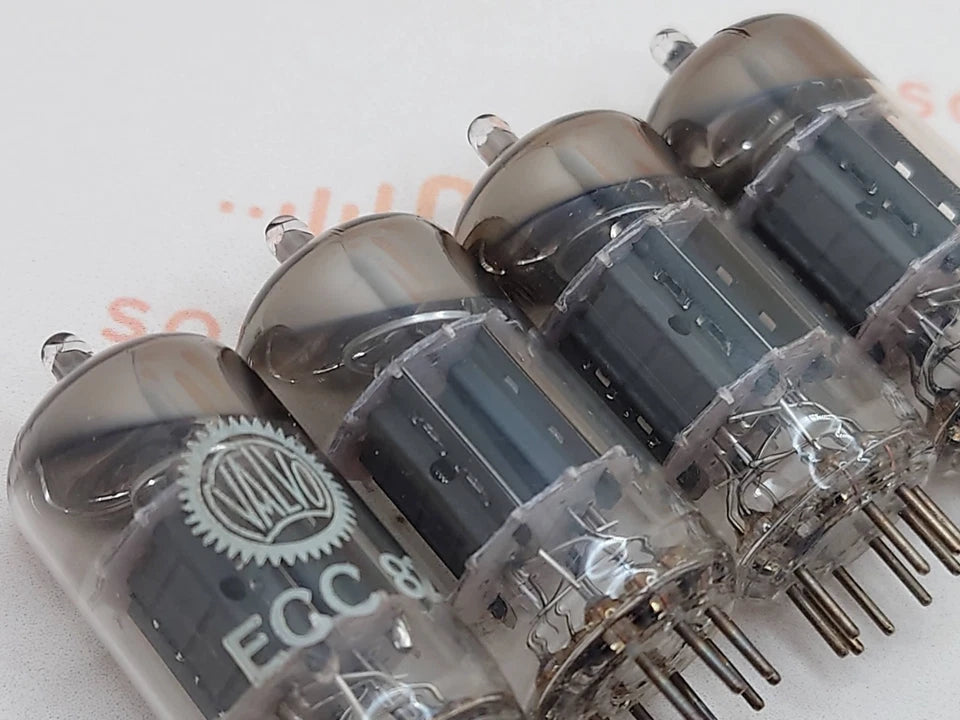

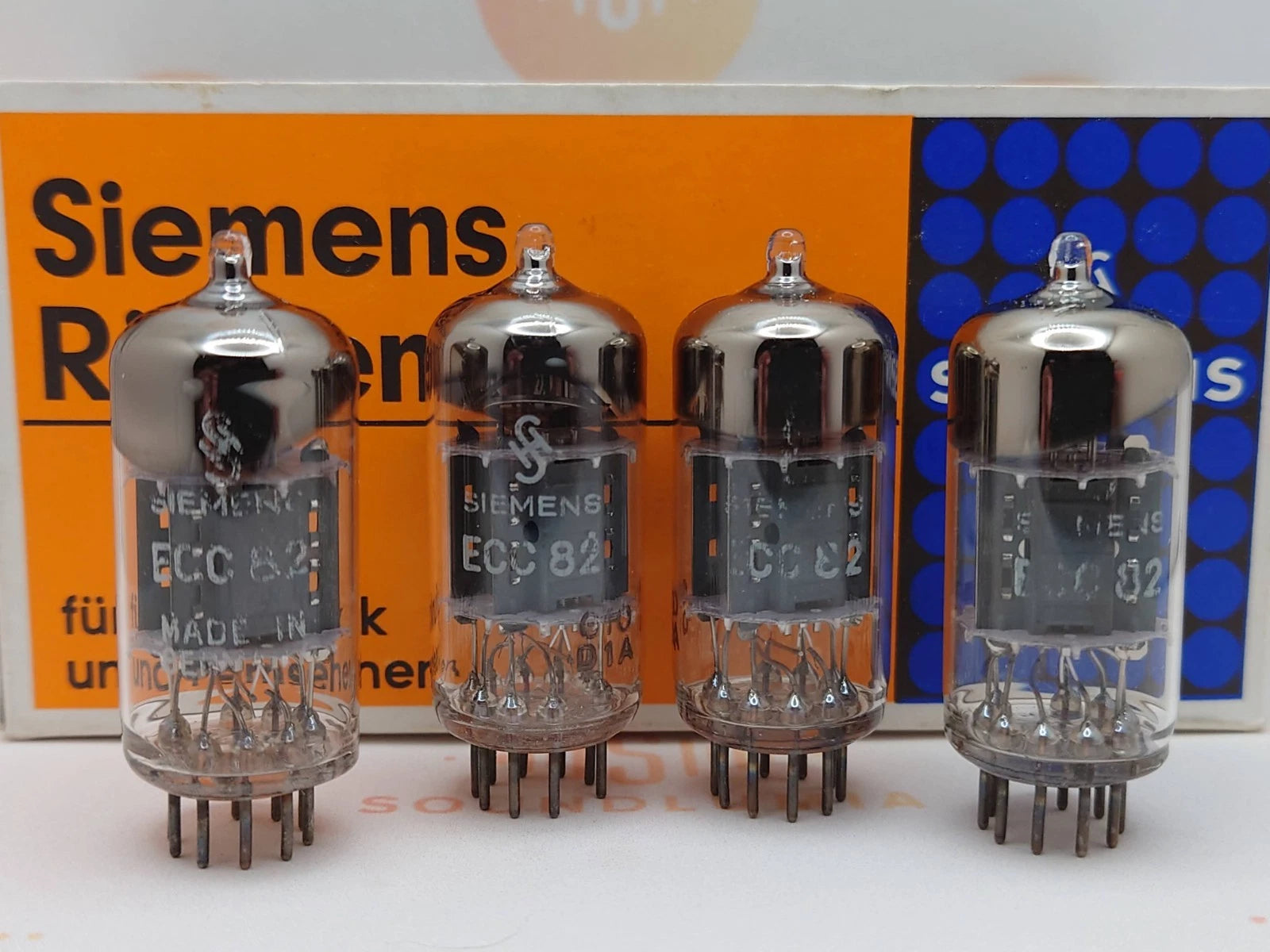

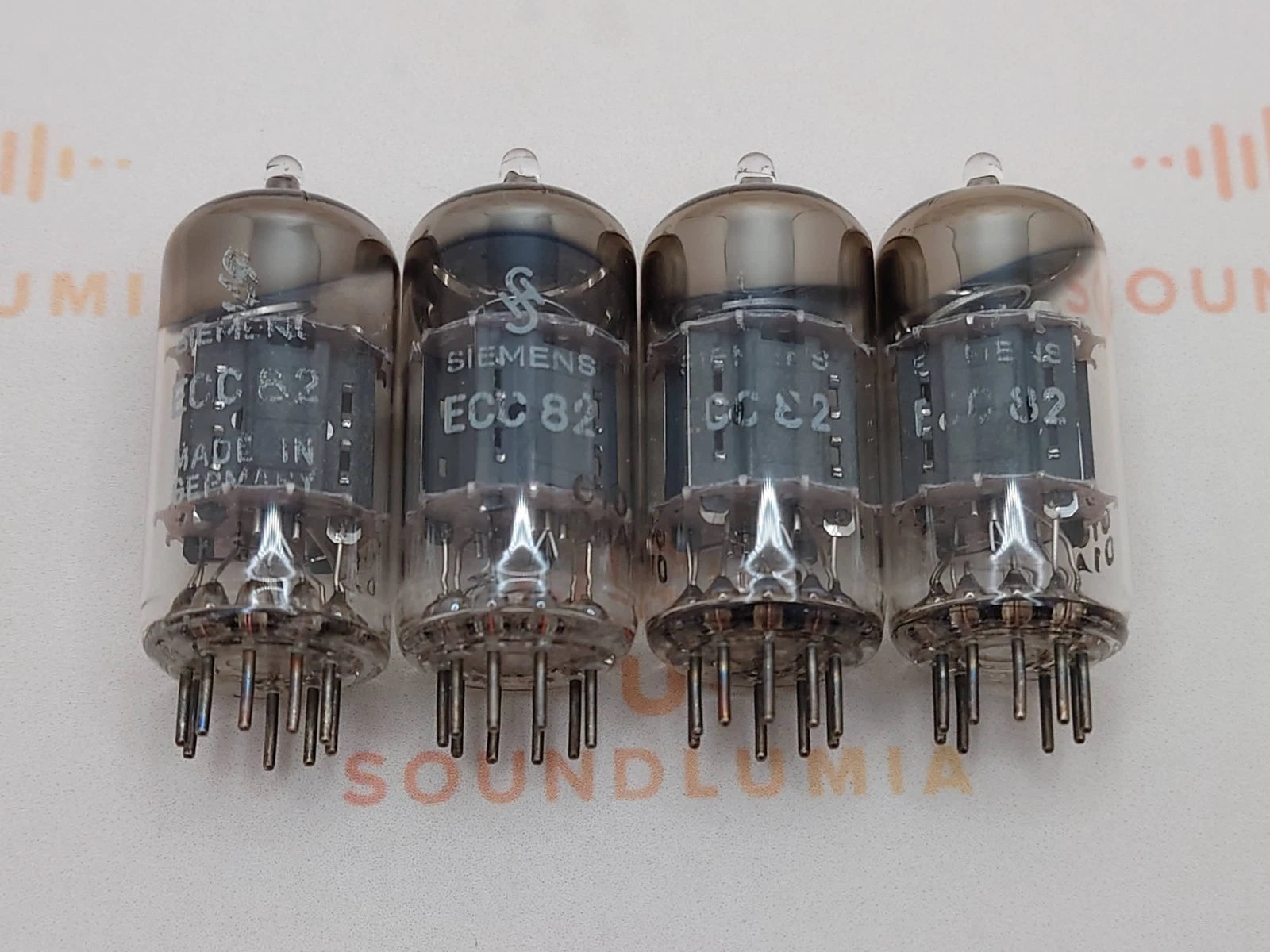

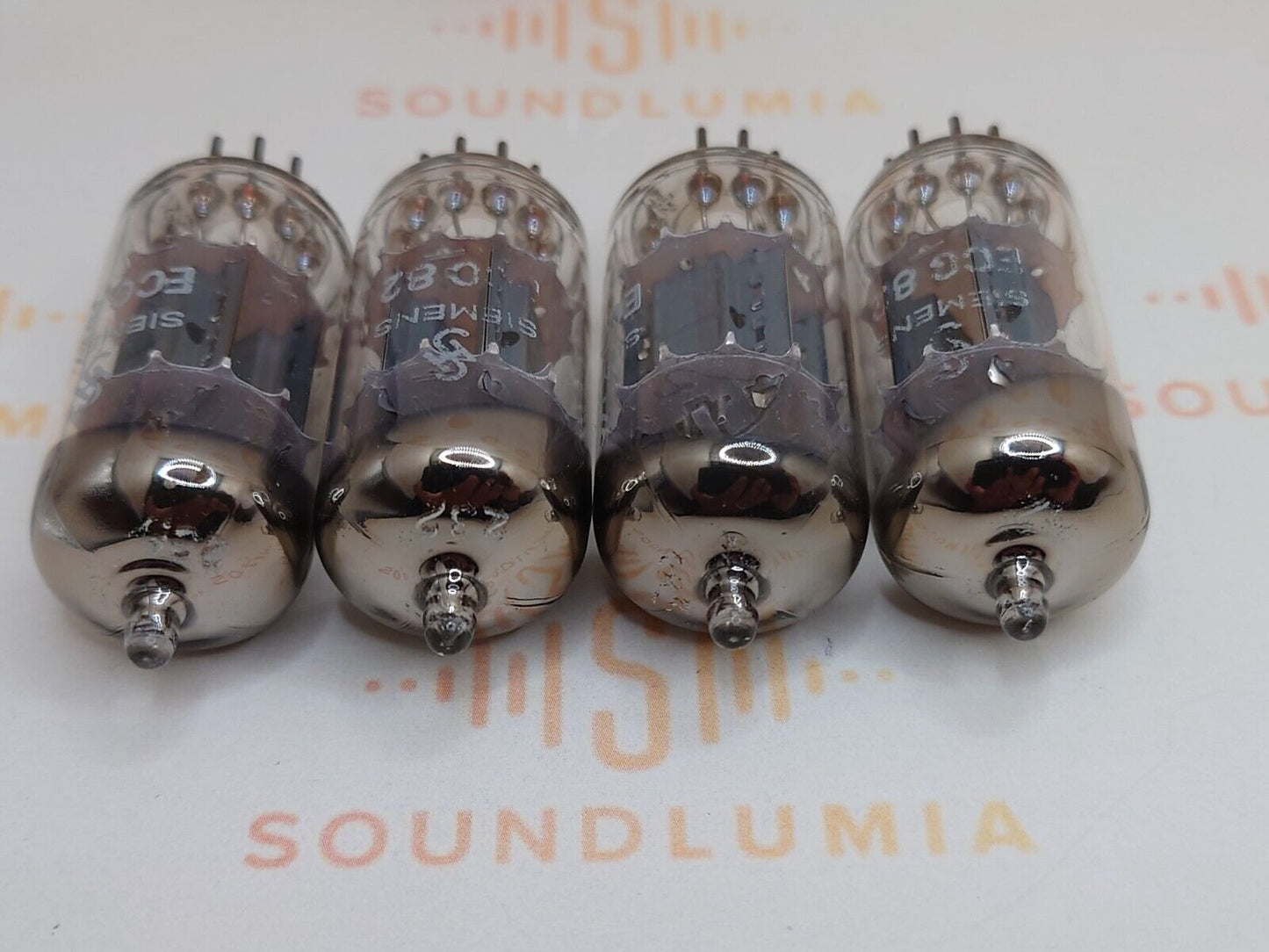

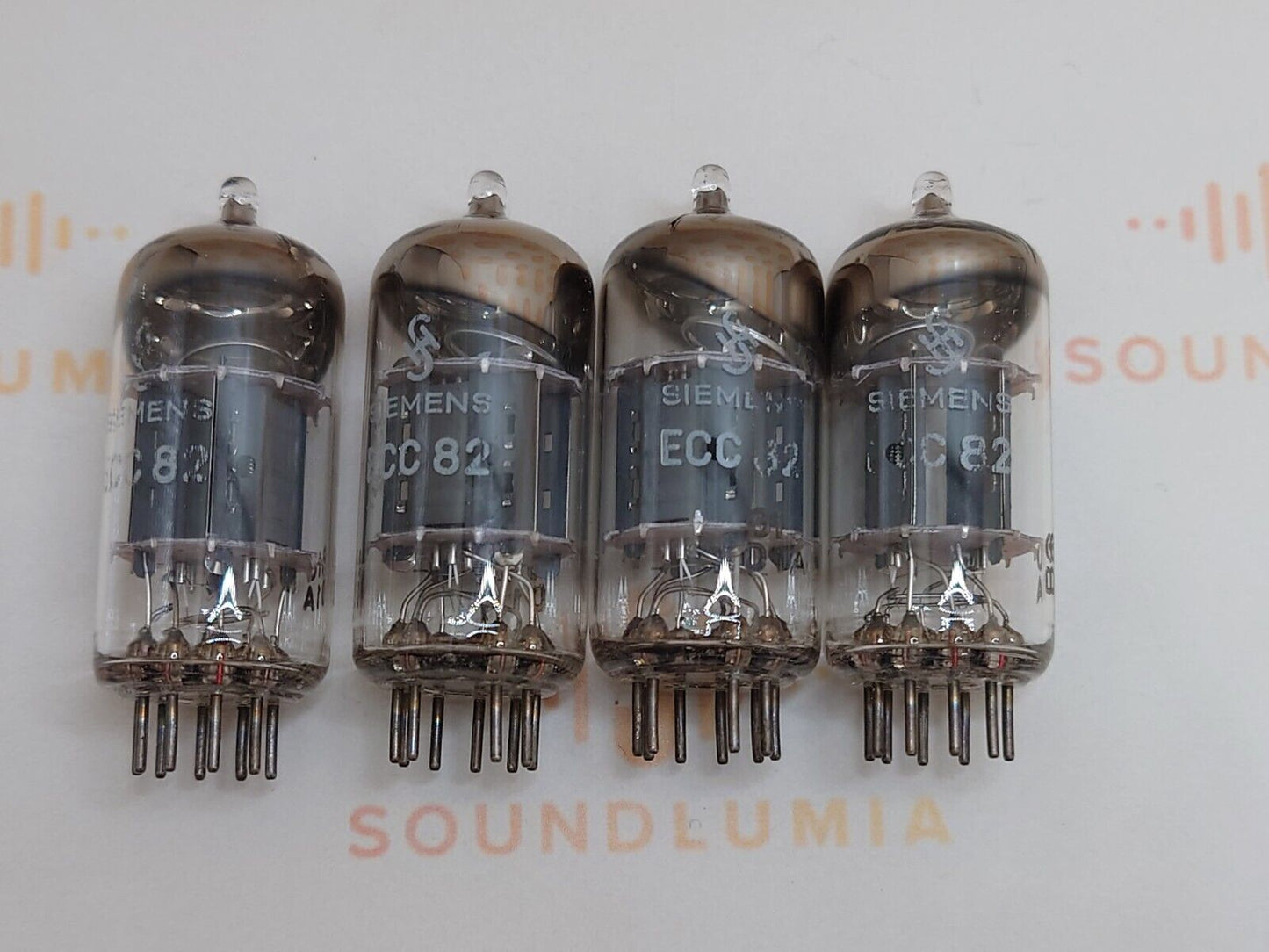

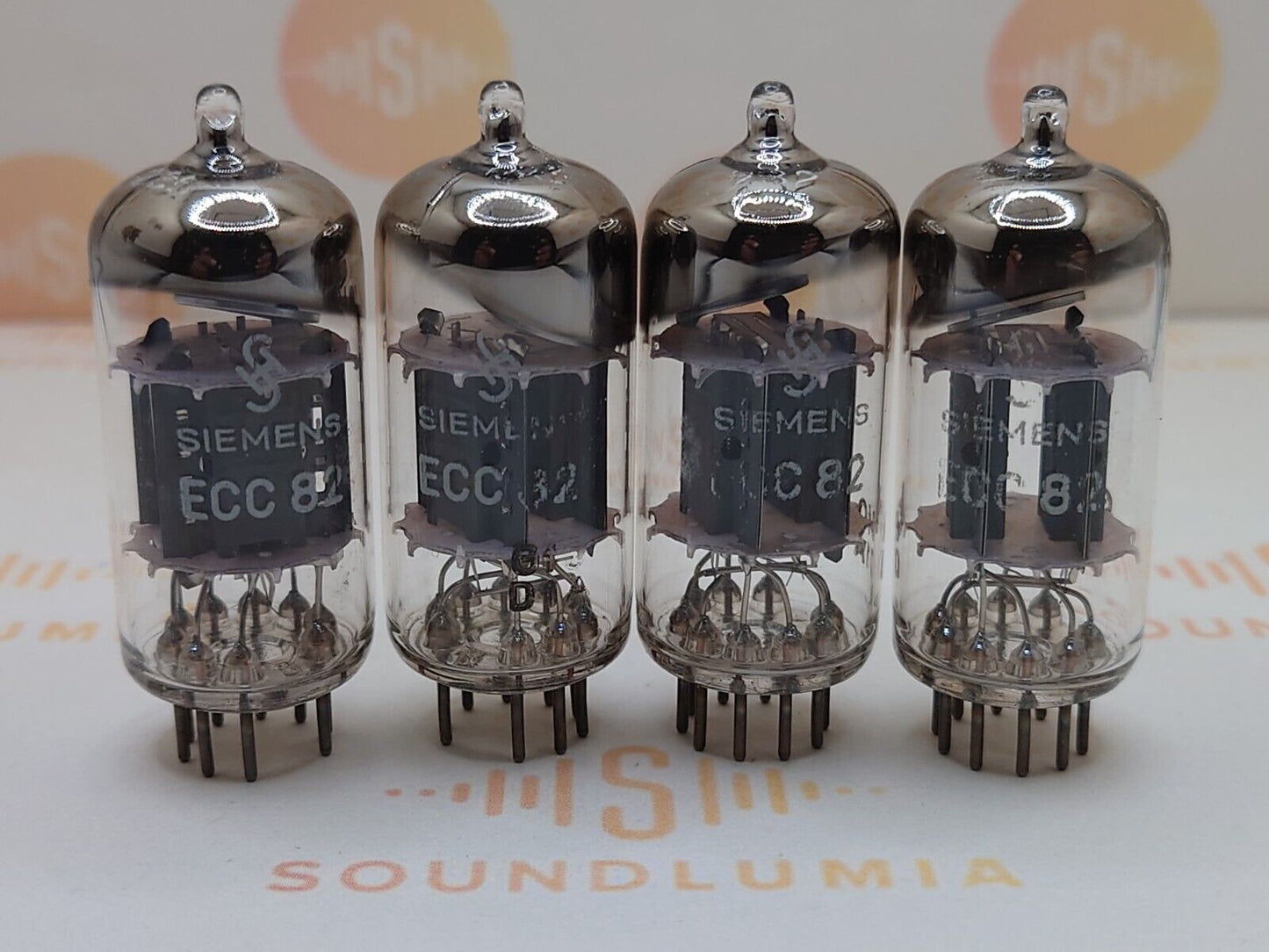

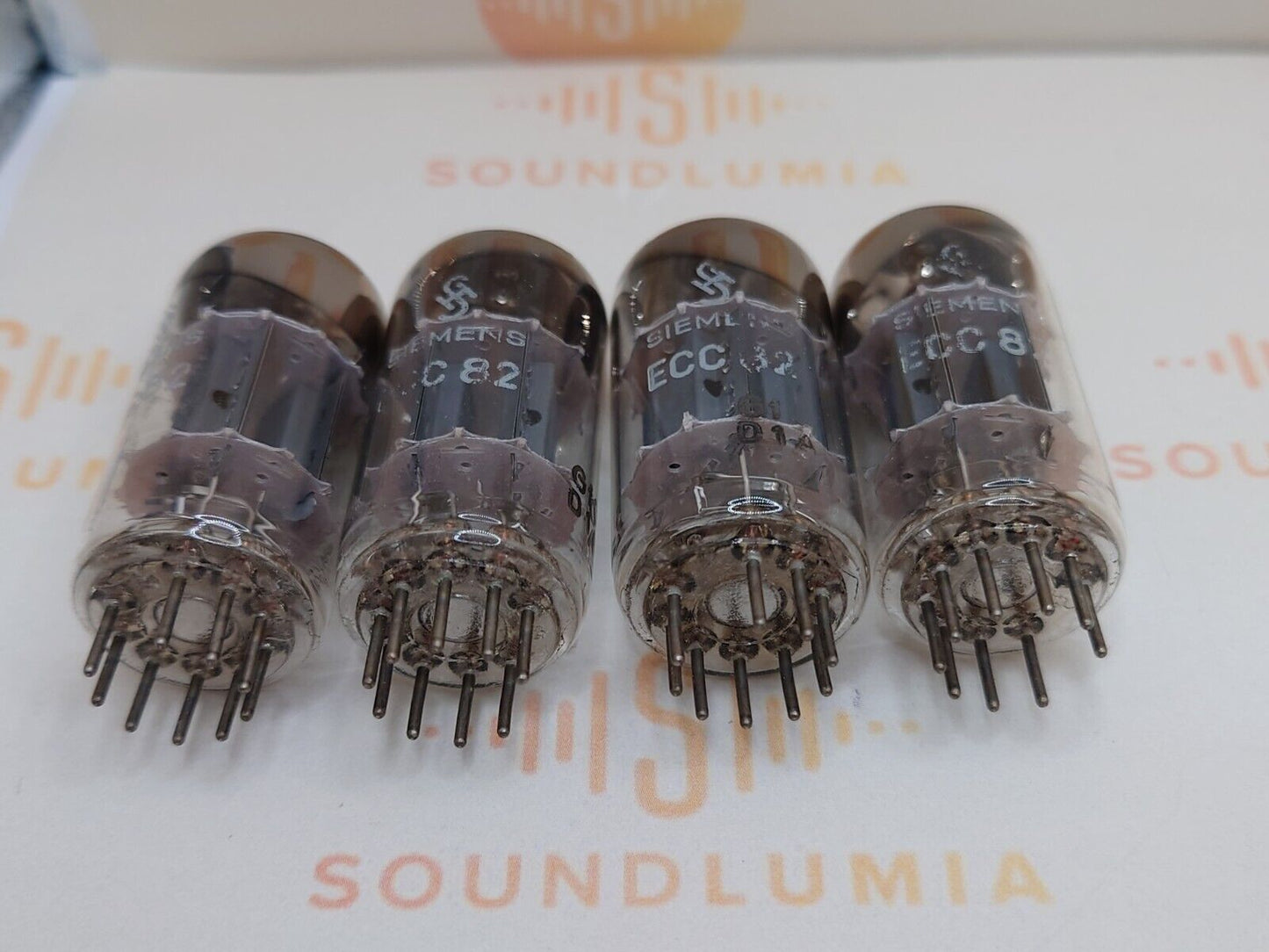

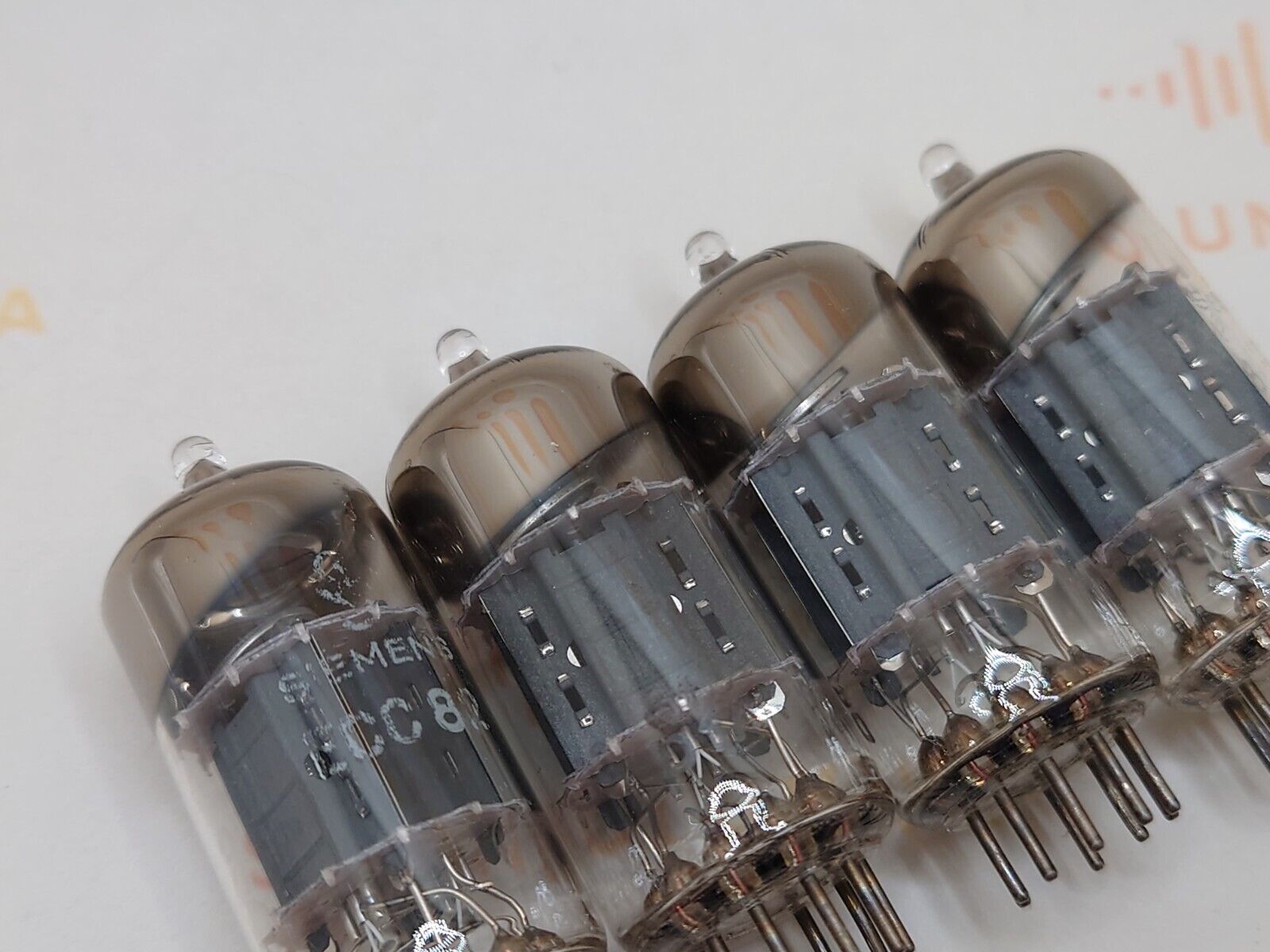

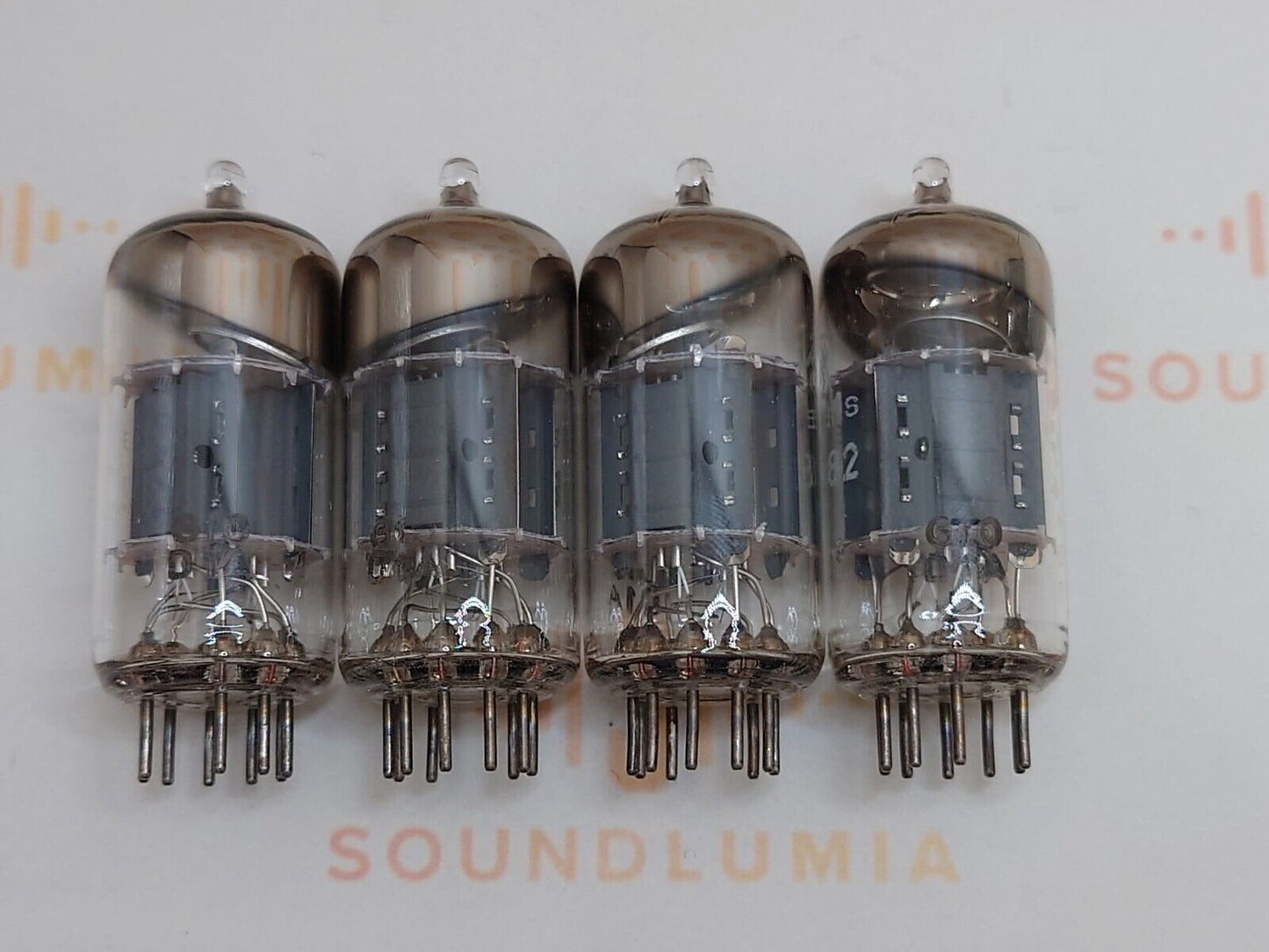

Siemens Valvo ECC82 Short Plates 30° O-Getter Matched Quad - Hamburg '61 Gf0

$749.75

Professional testing & sound evaluation

This set was tested and certified by RoeTest V11 tester with the following result:

Tube 1:

Measured transconductance(GM): 1.89/1.81 mA/V - 86%/82% (100% = 2.2 mA/V)

Measured plate current(IA): 9.137/8.417 mA - 87%/80% (100% = 10.5 mA)

Tube 2:

Measured transconductance(GM): 2.09/1.88 mA/V - 95%/85% (100% = 2.2 mA/V)

Measured plate current(IA): 10.39/9.947 mA - 99%/95% (100% = 10.5 mA)

Tube 3:

Measured transconductance(GM): 1.89/1.84 mA/V - 86%/84% (100% = 2.2 mA/V)

Measured plate current(IA): 8.927/8.852 mA - 85%/84% (100% = 10.5 mA)

Tube 4:

Measured transconductance(GM): 1.81/1.8 mA/V - 82%/82% (100% = 2.2 mA/V)

Measured plate current(IA): 8.545/8.732 mA - 81%/83% (100% = 10.5 mA)

NO shorts, leakage or gas. NO noise or microphonics.

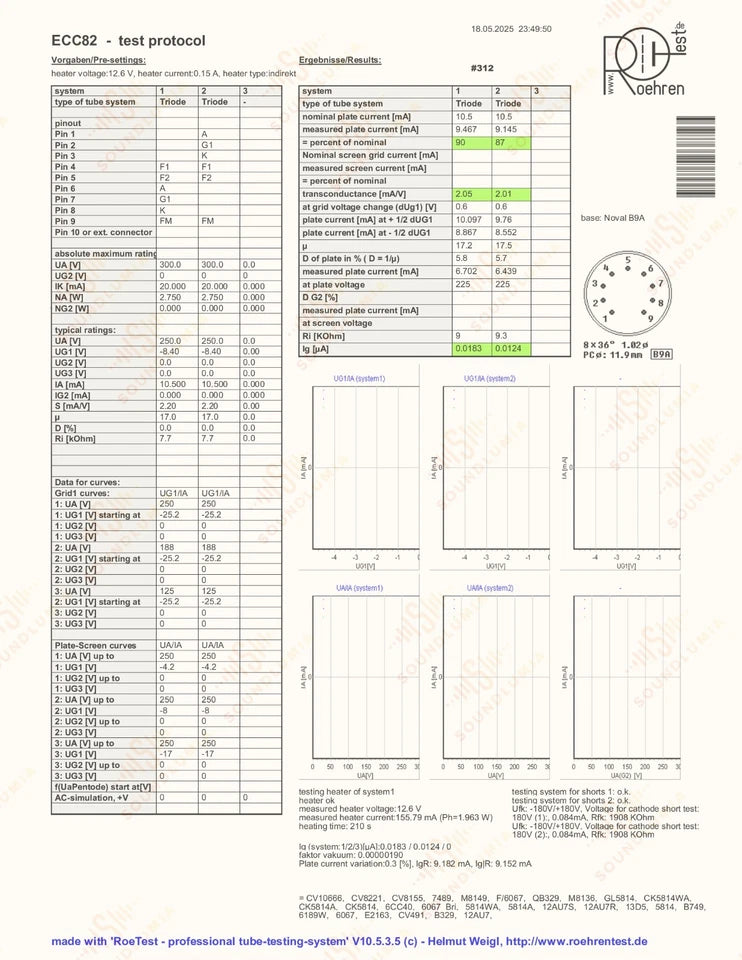

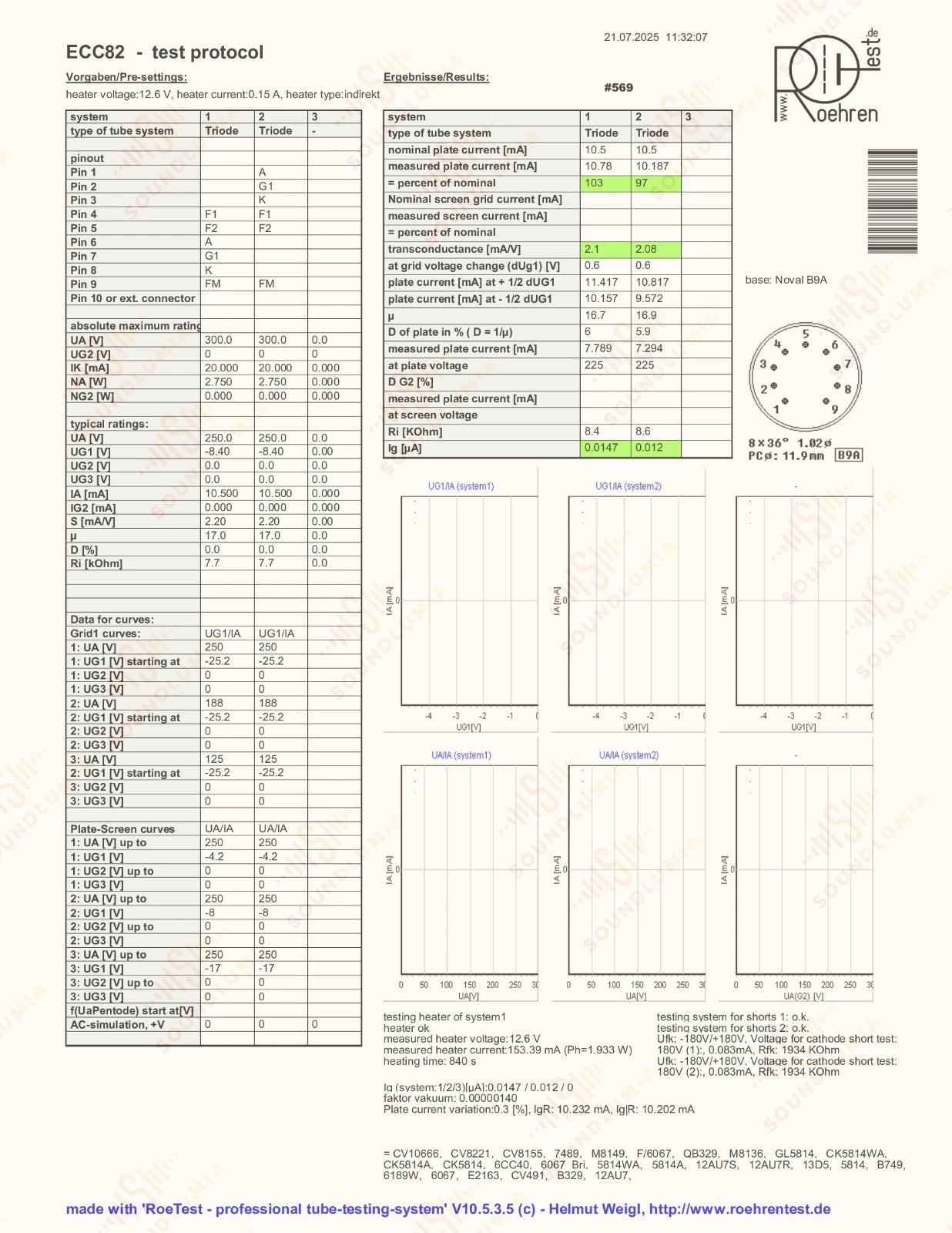

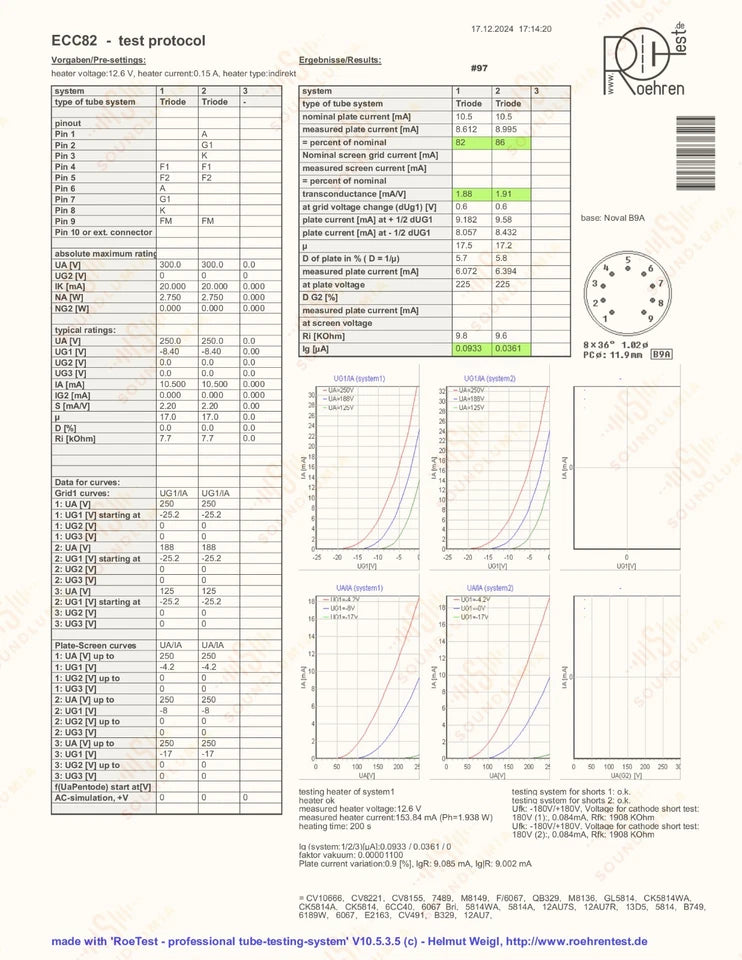

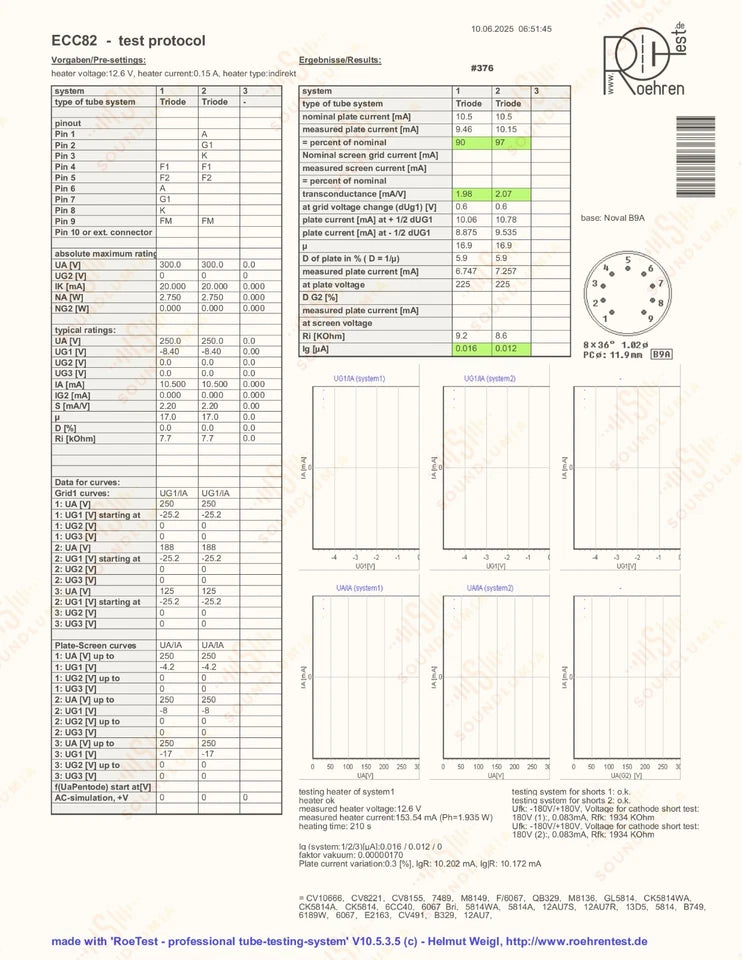

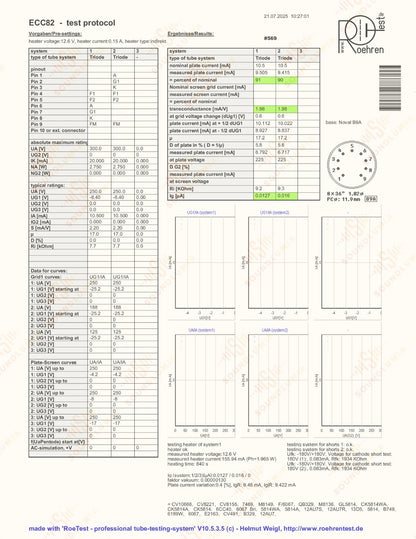

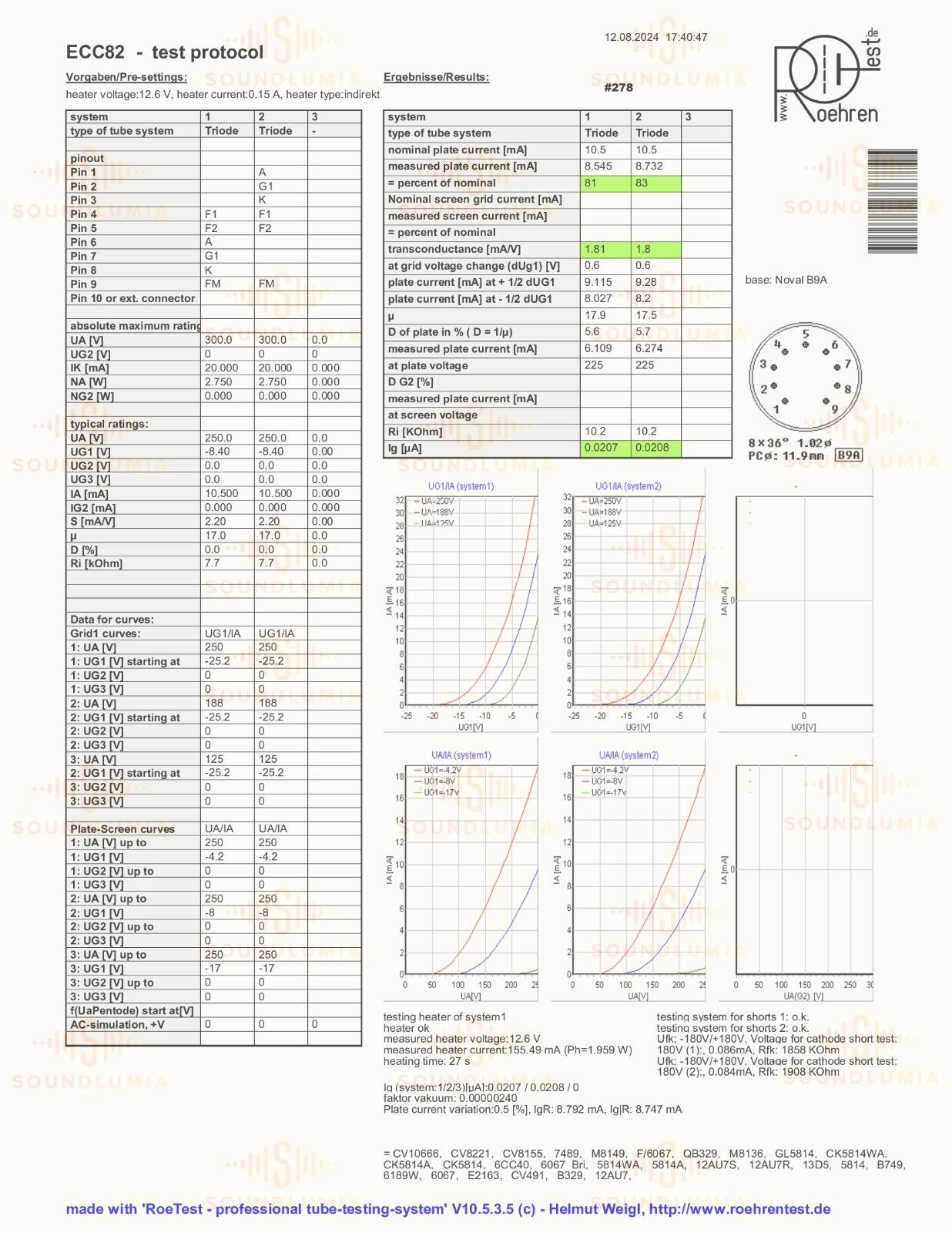

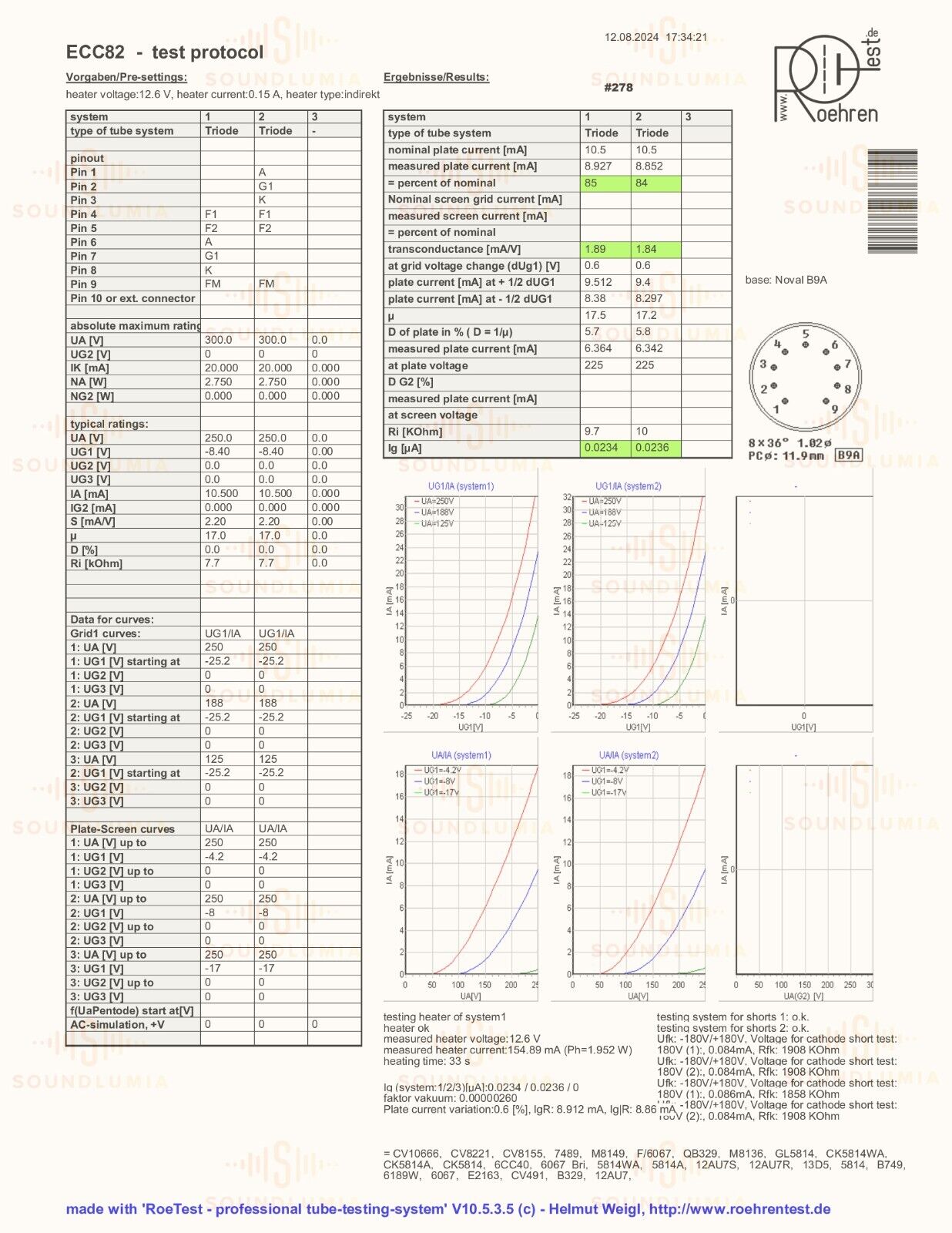

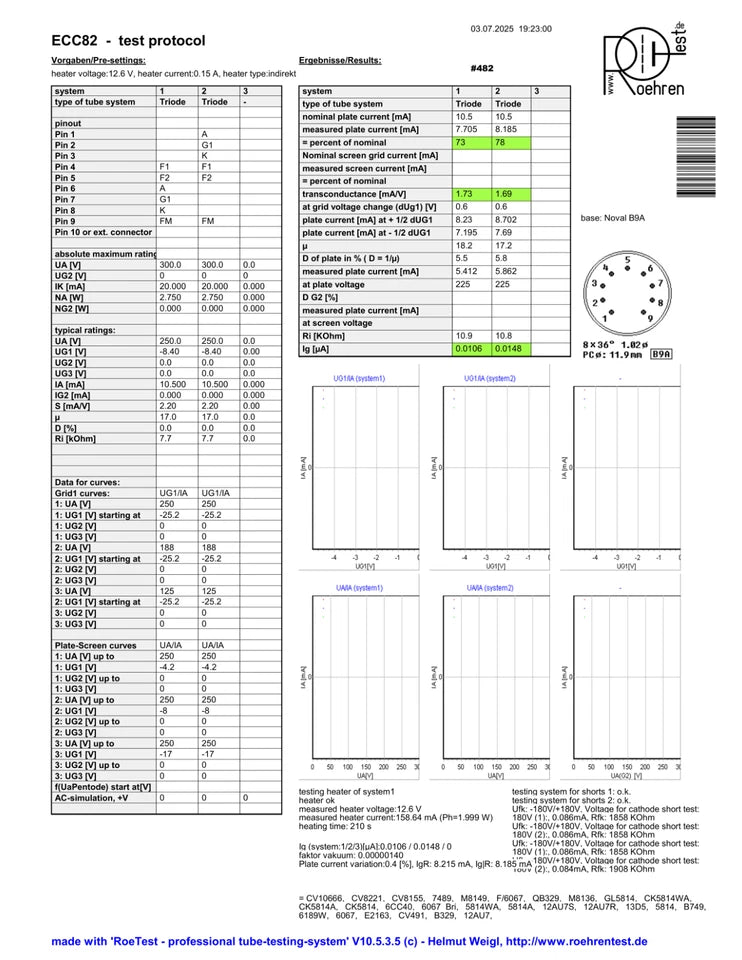

Curve trace is also included in the original RoeTest report.

Appearance & cosmetic condition

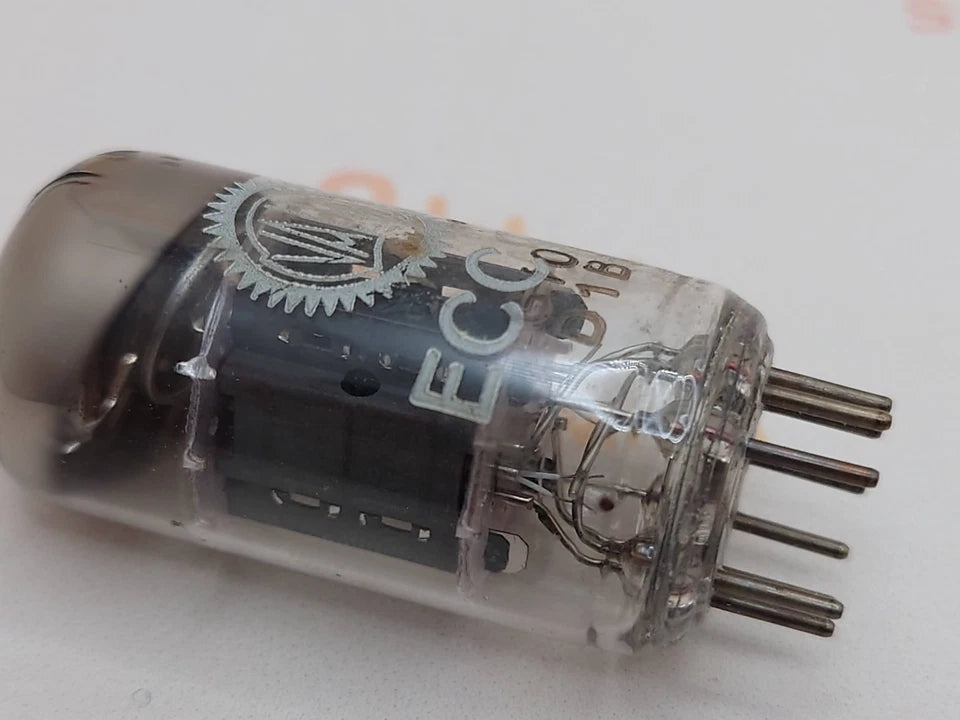

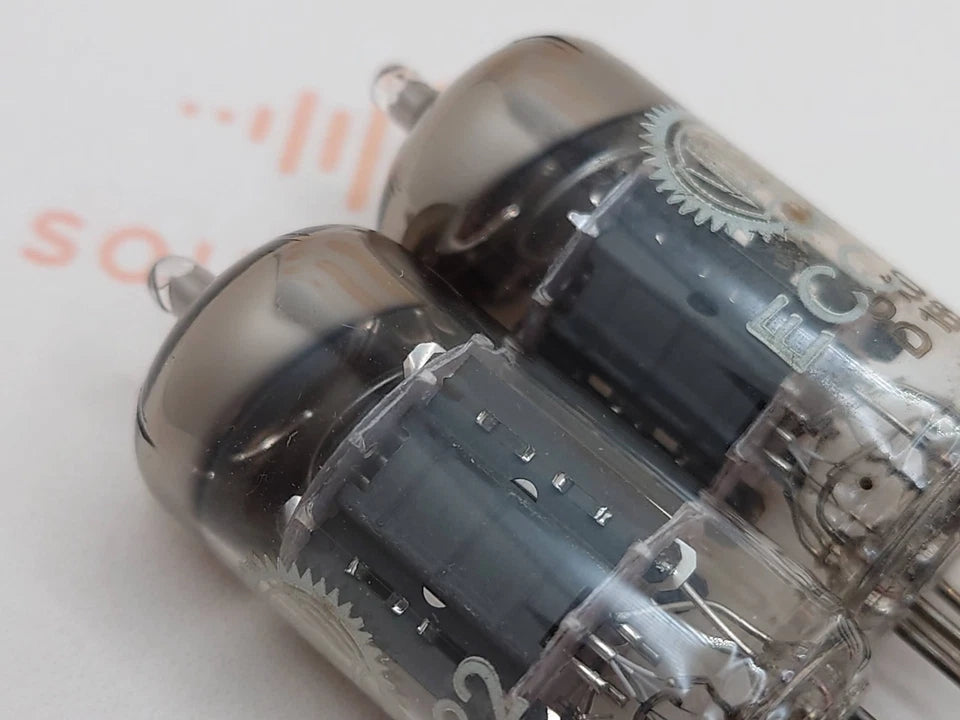

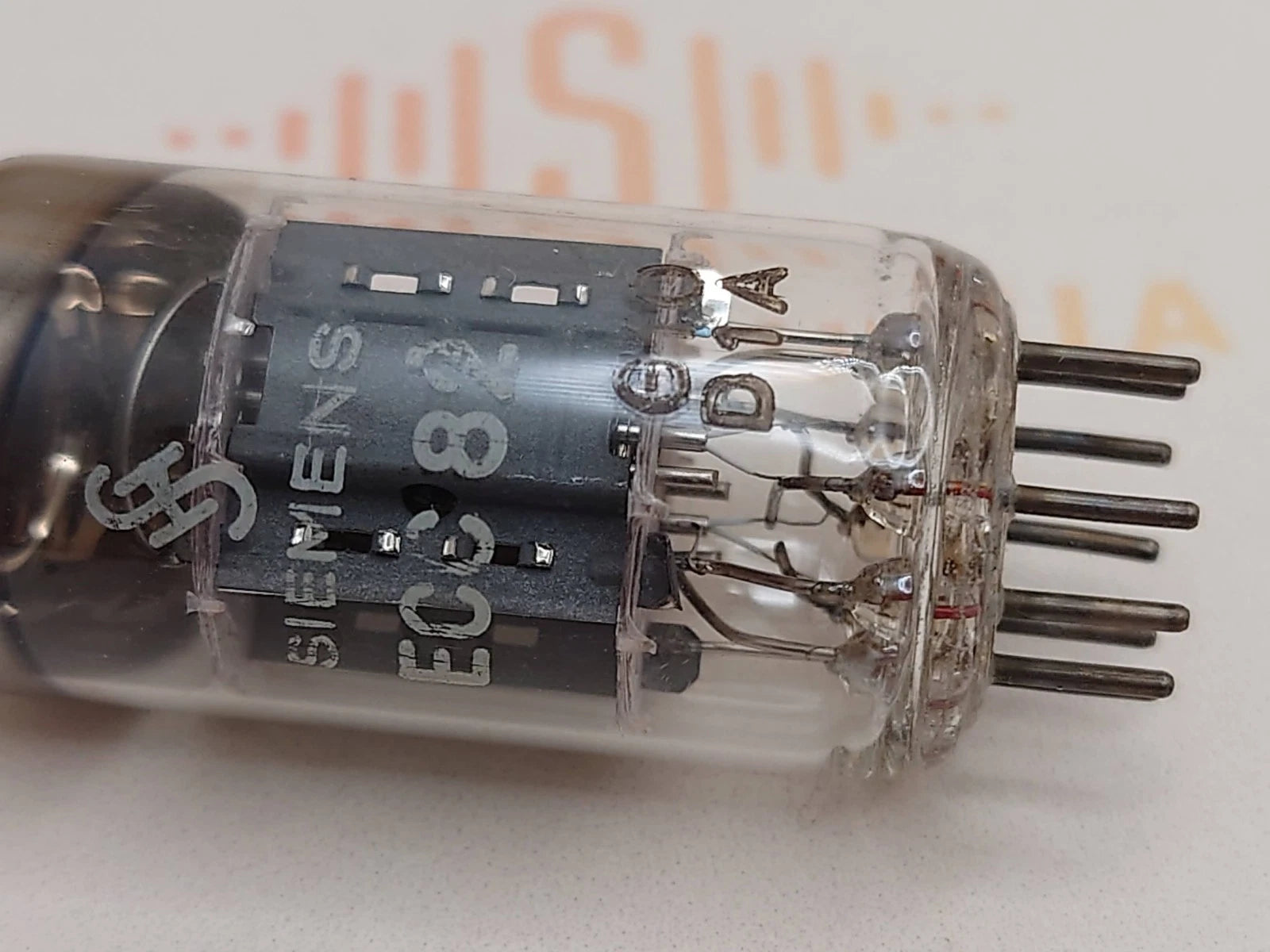

Besides the world-class sound characteristics, we treasure this pair also because the excellent condition of inscriptions on the tubes given its age. The identical 3-letter (Pre-1961 Hamburg date code is 100% visible on both tubes:

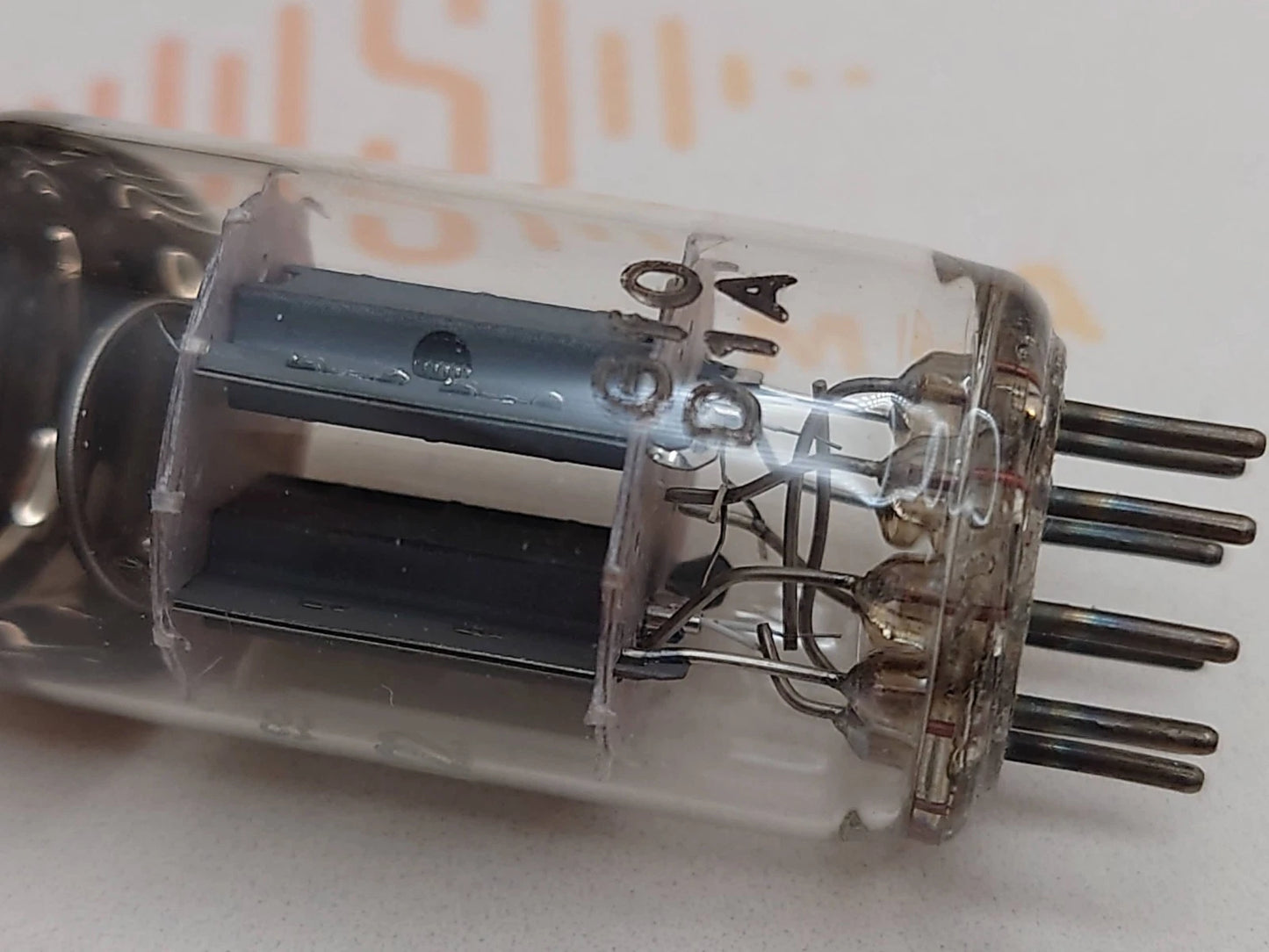

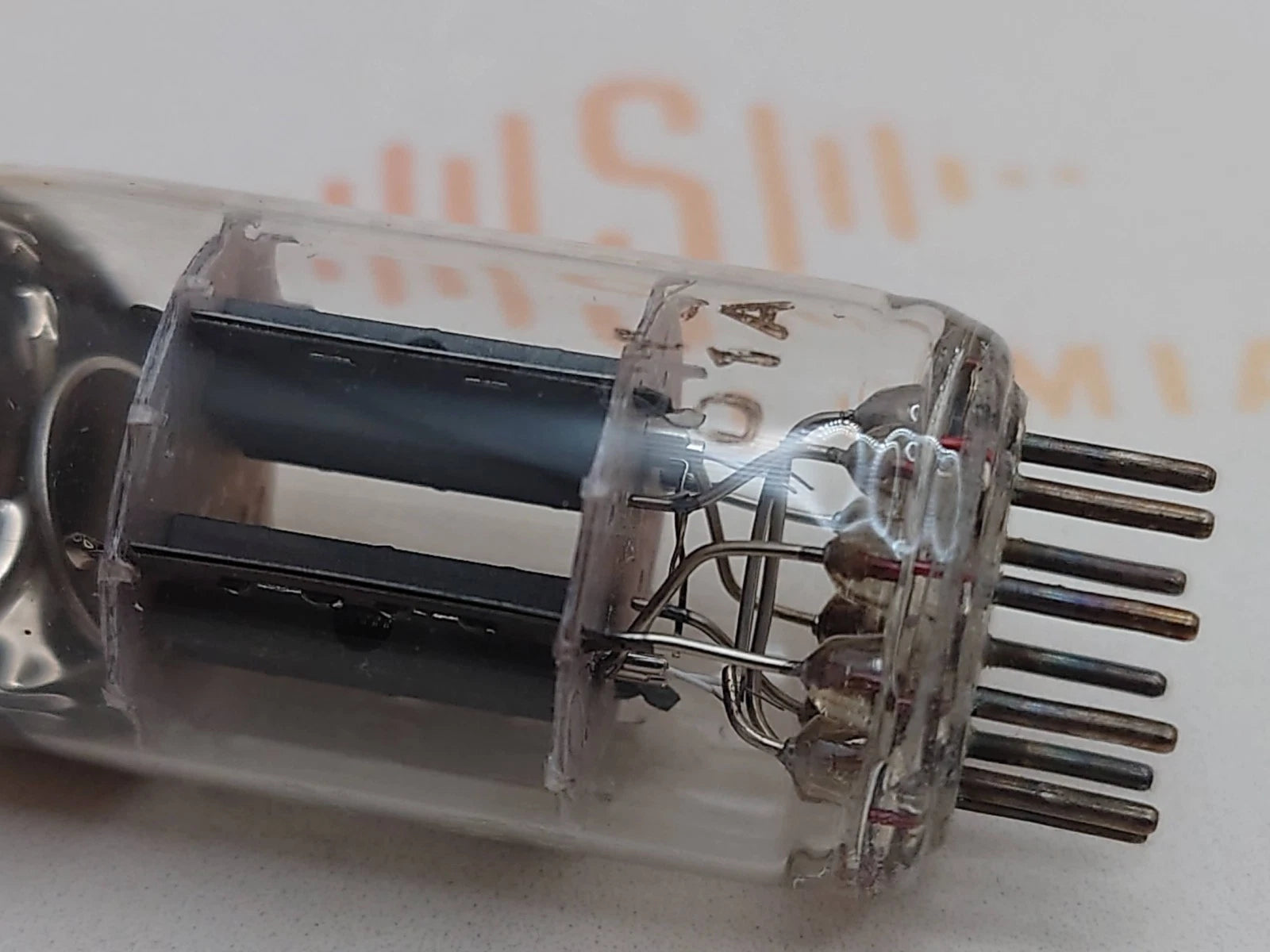

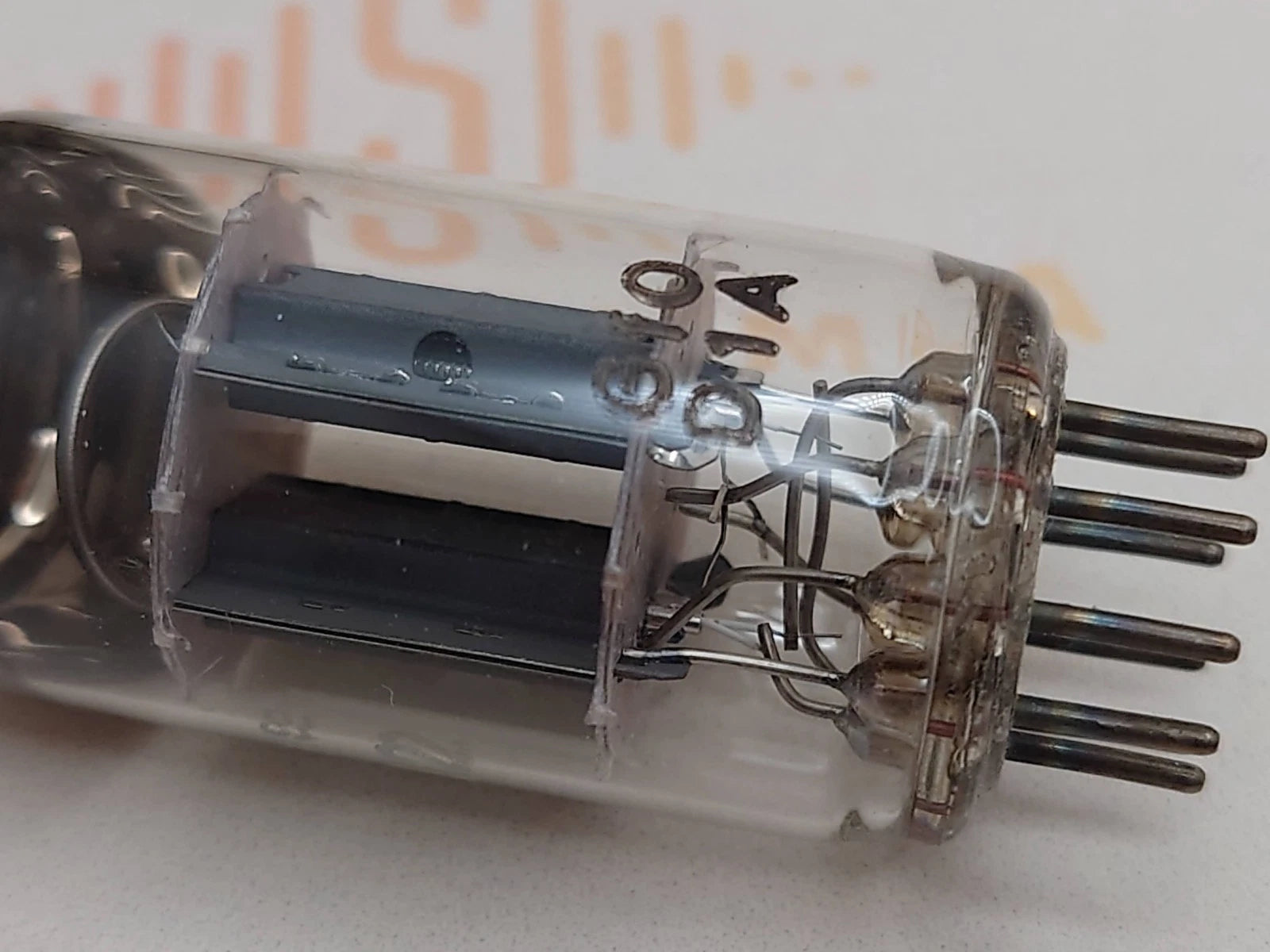

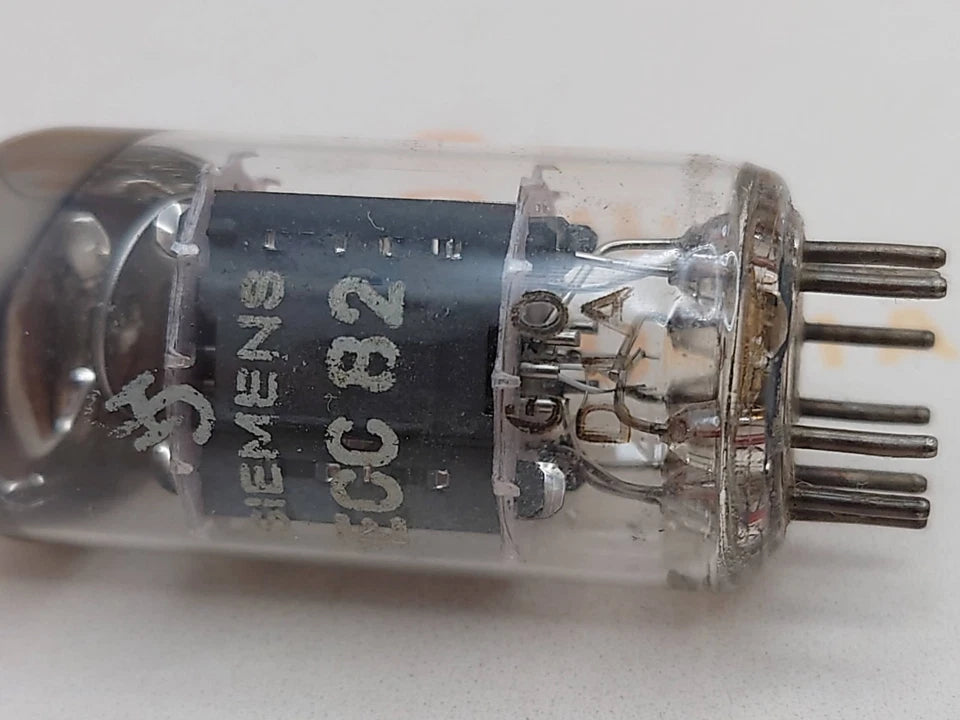

Gf0 D1A (Gf0 = ECC82 Production Gen #0, D = Hamburg, Germany, 1 = 1961, A = January)

Packaging

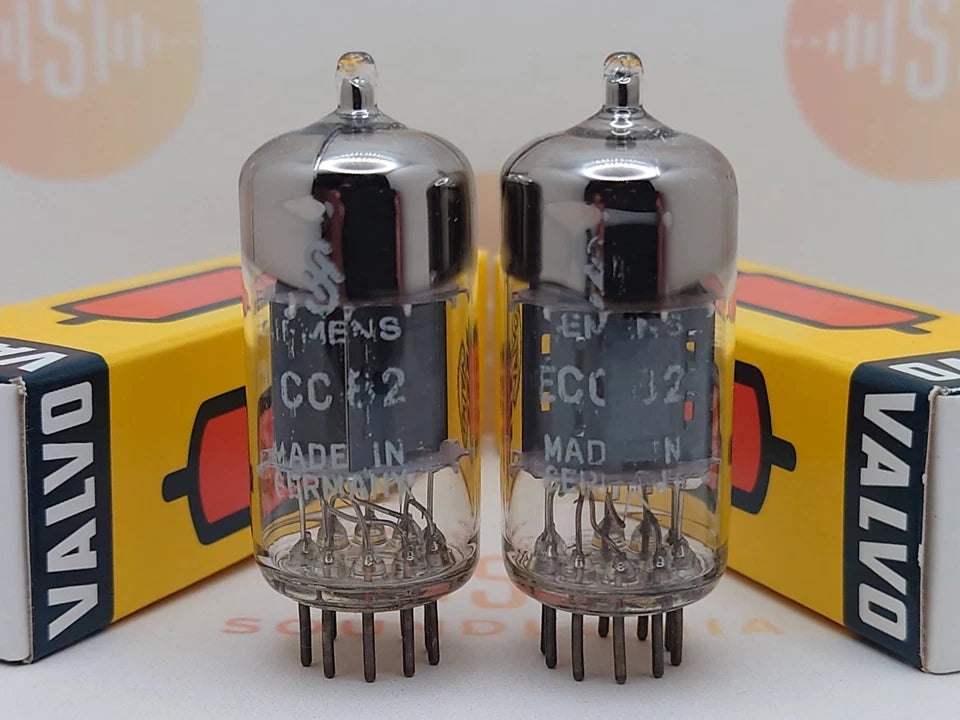

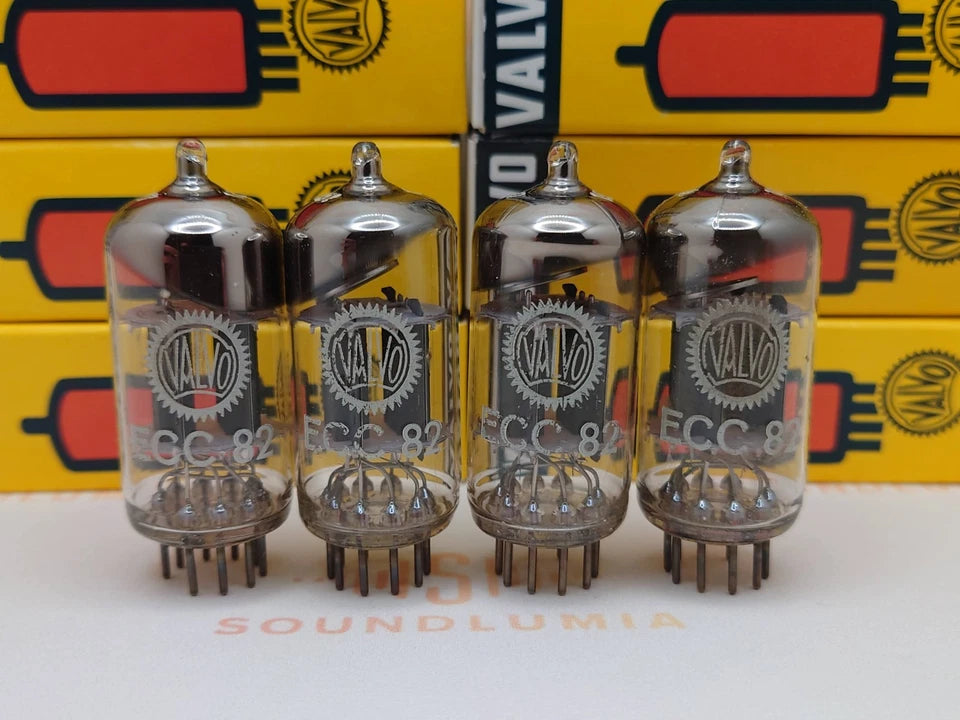

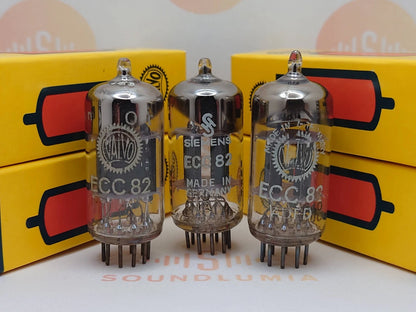

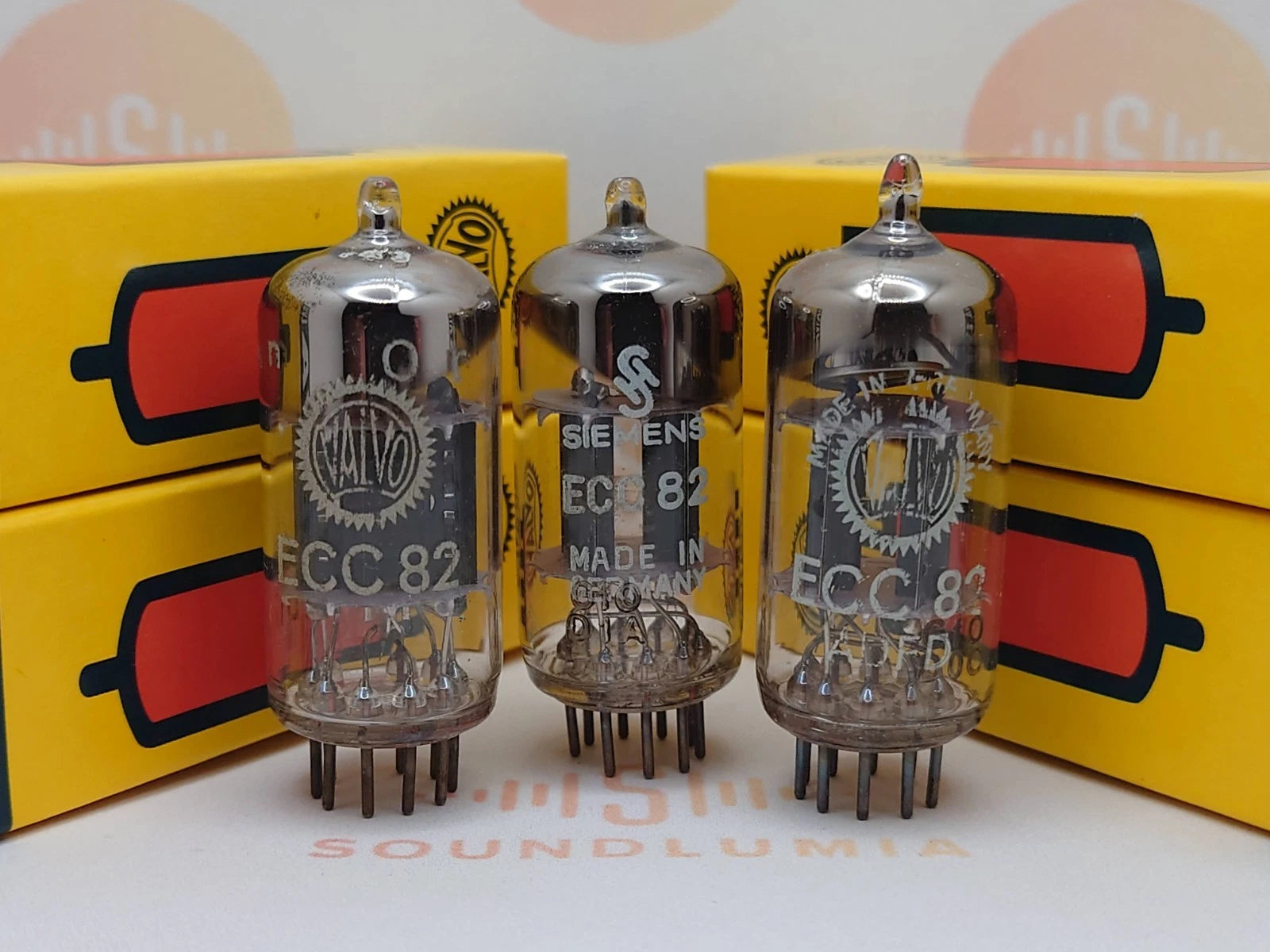

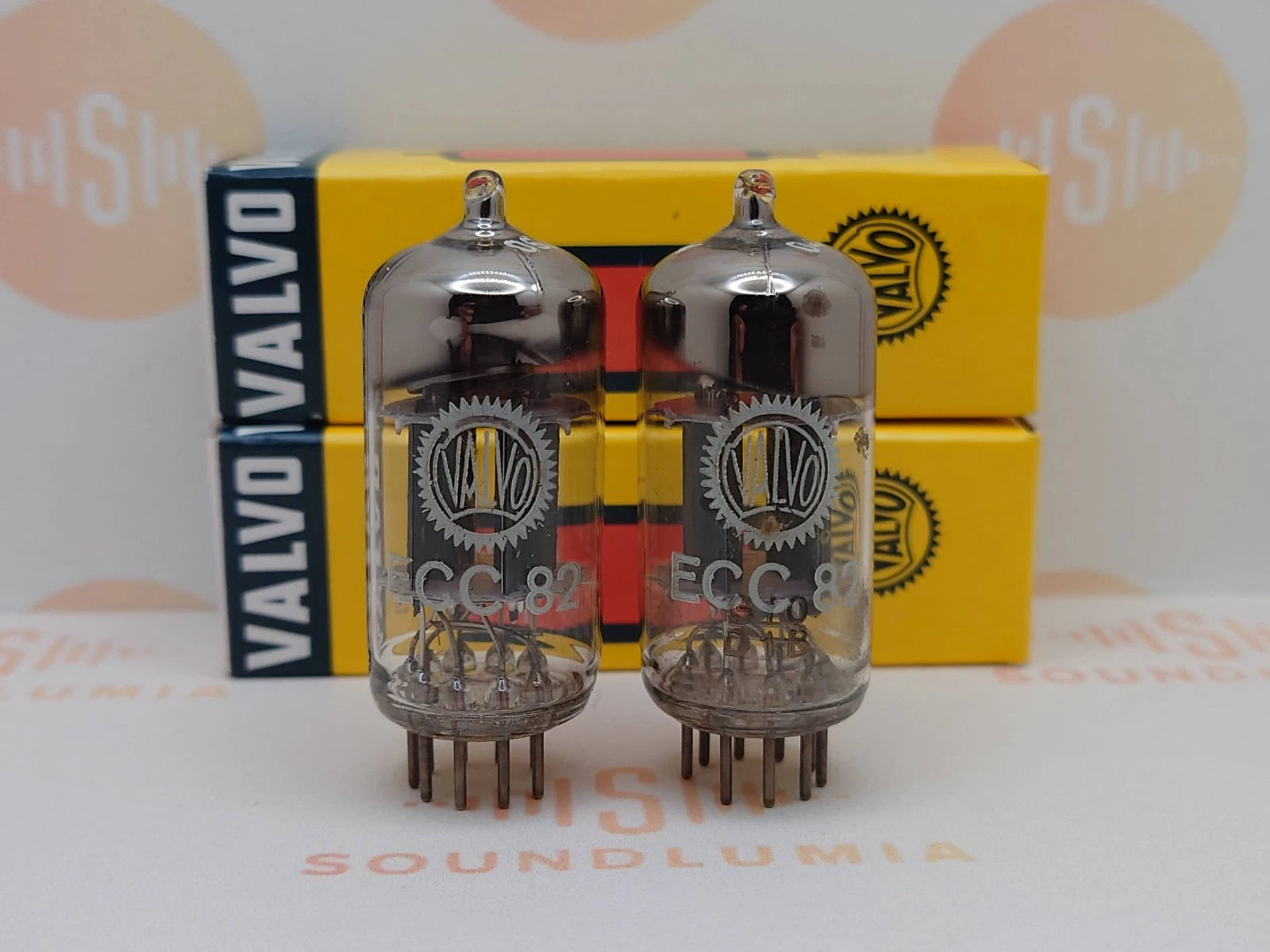

NEW reproduction Valvo tube boxes.

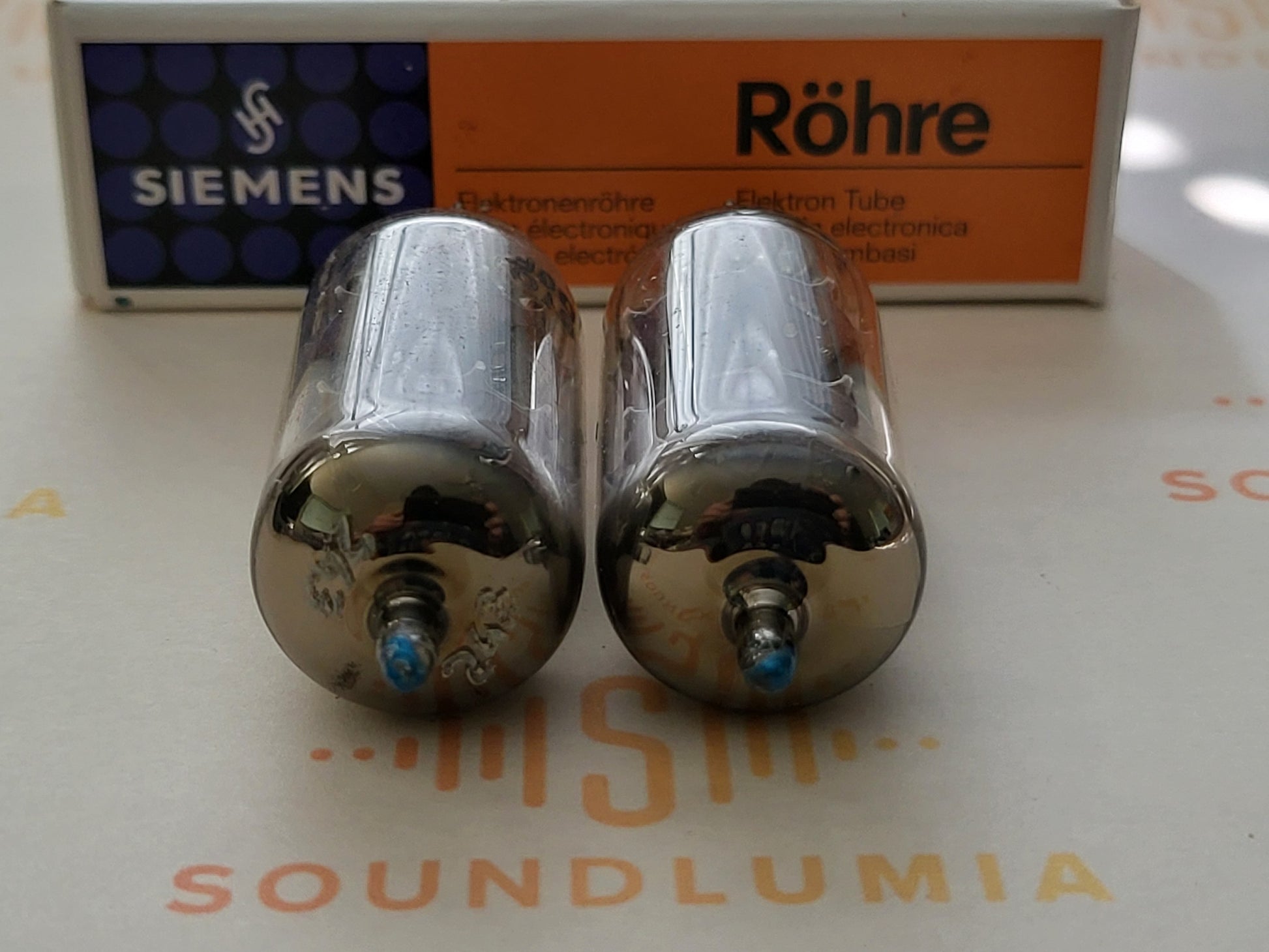

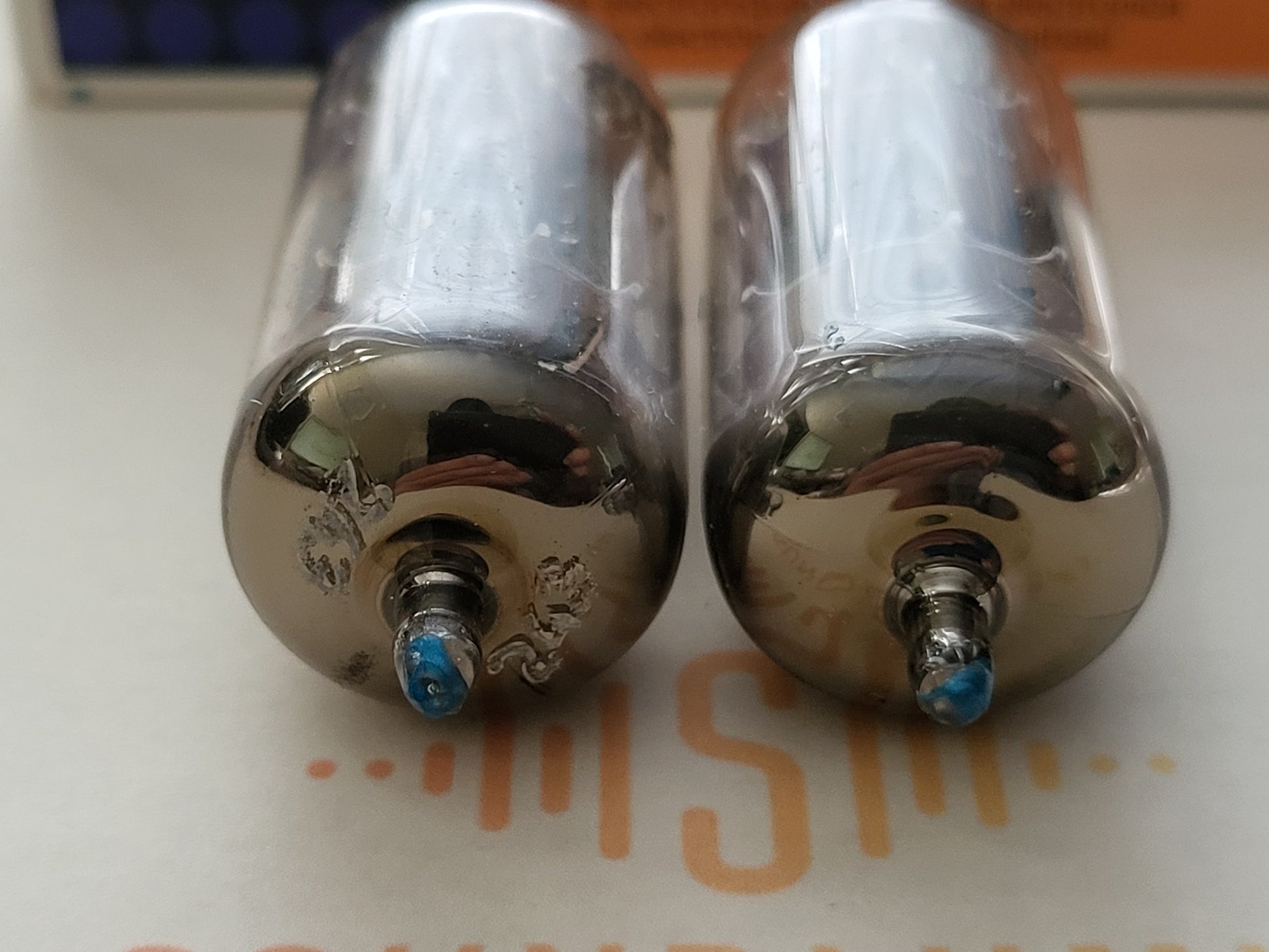

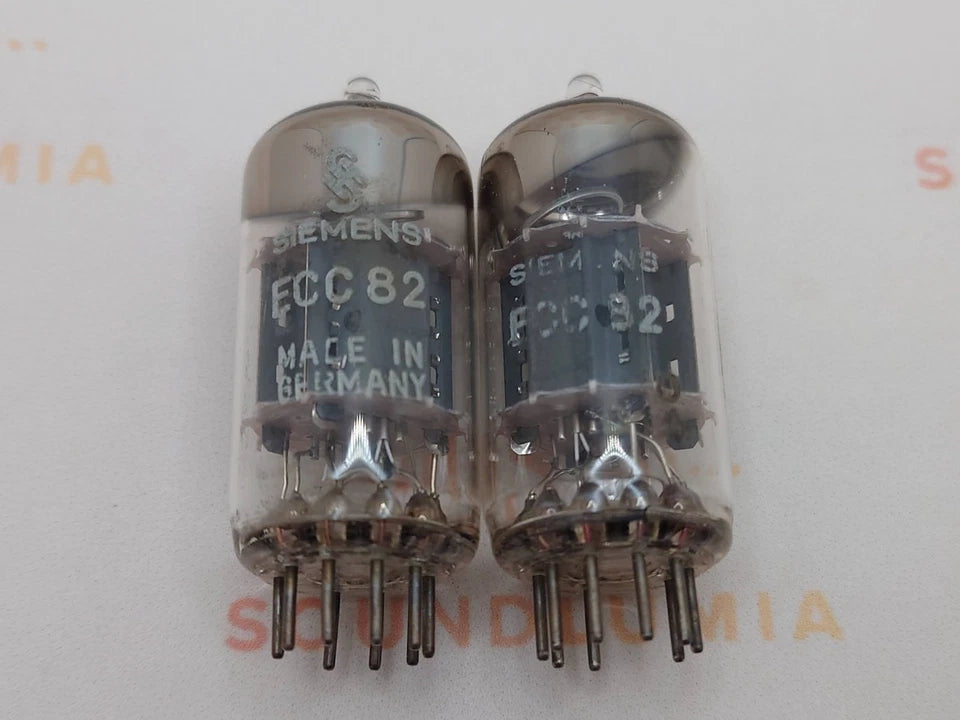

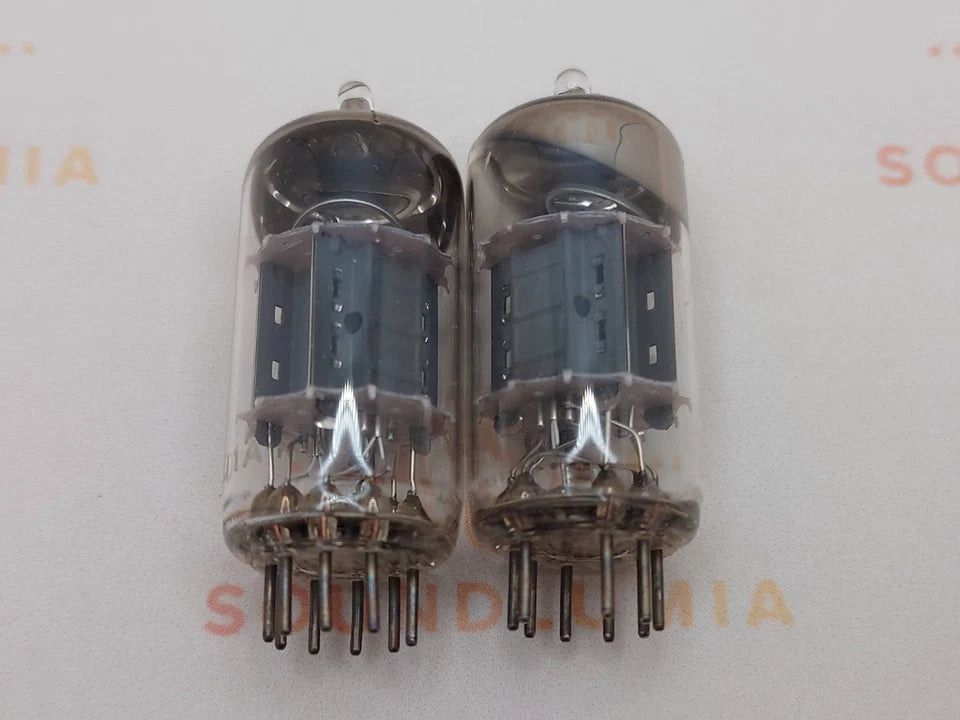

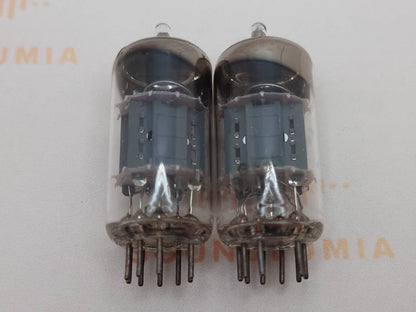

Matched Pair (Blue Tip)

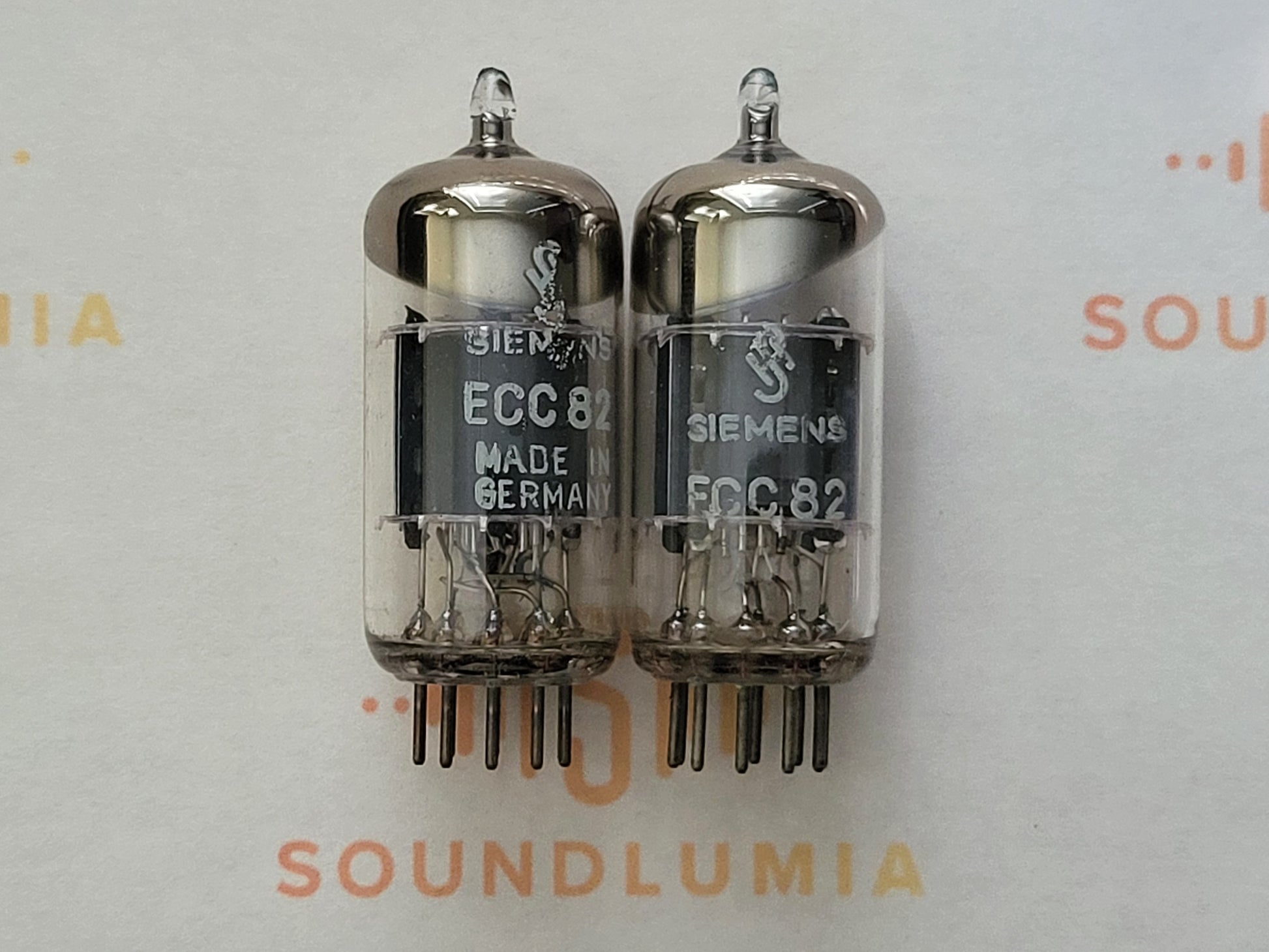

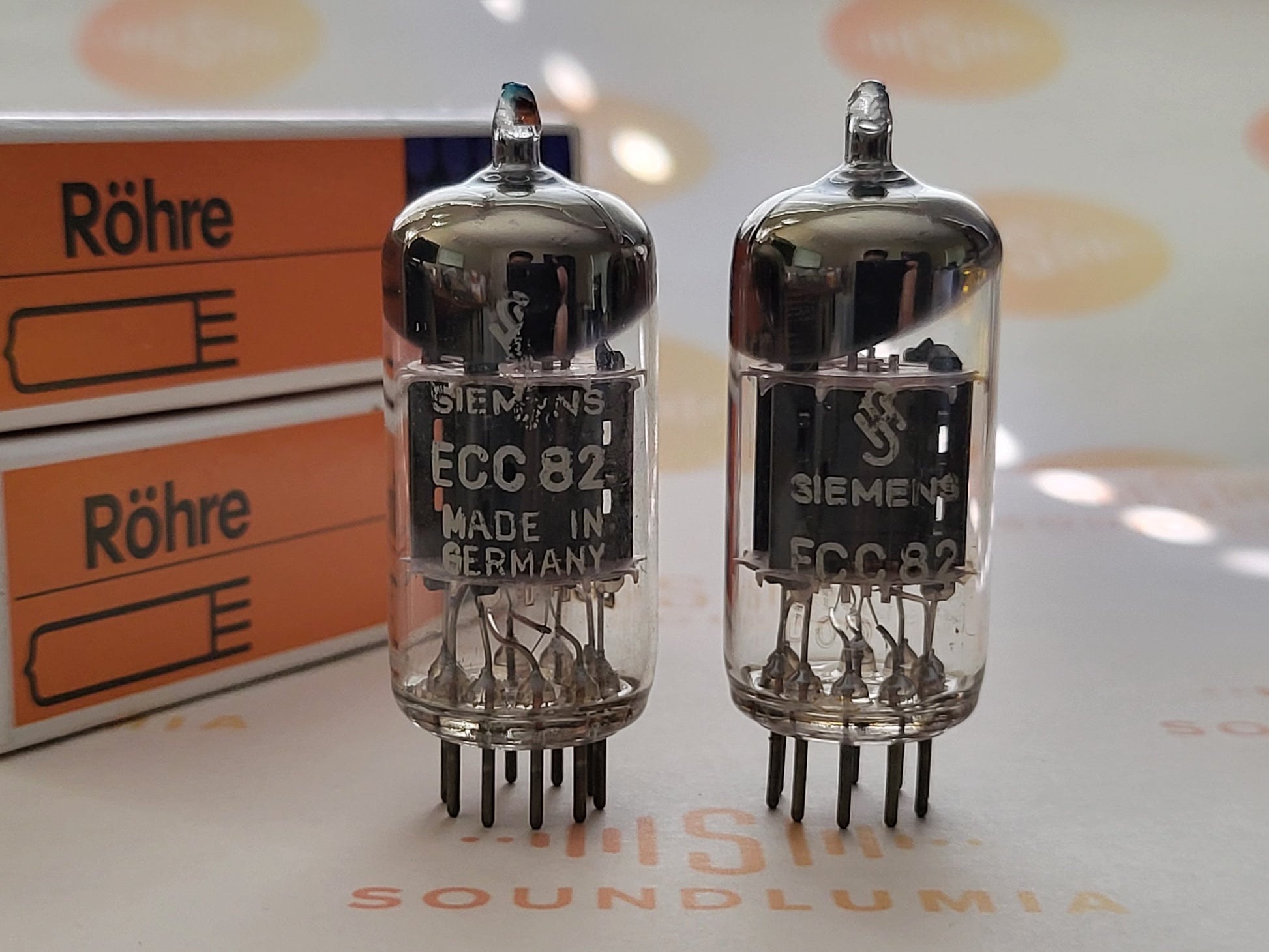

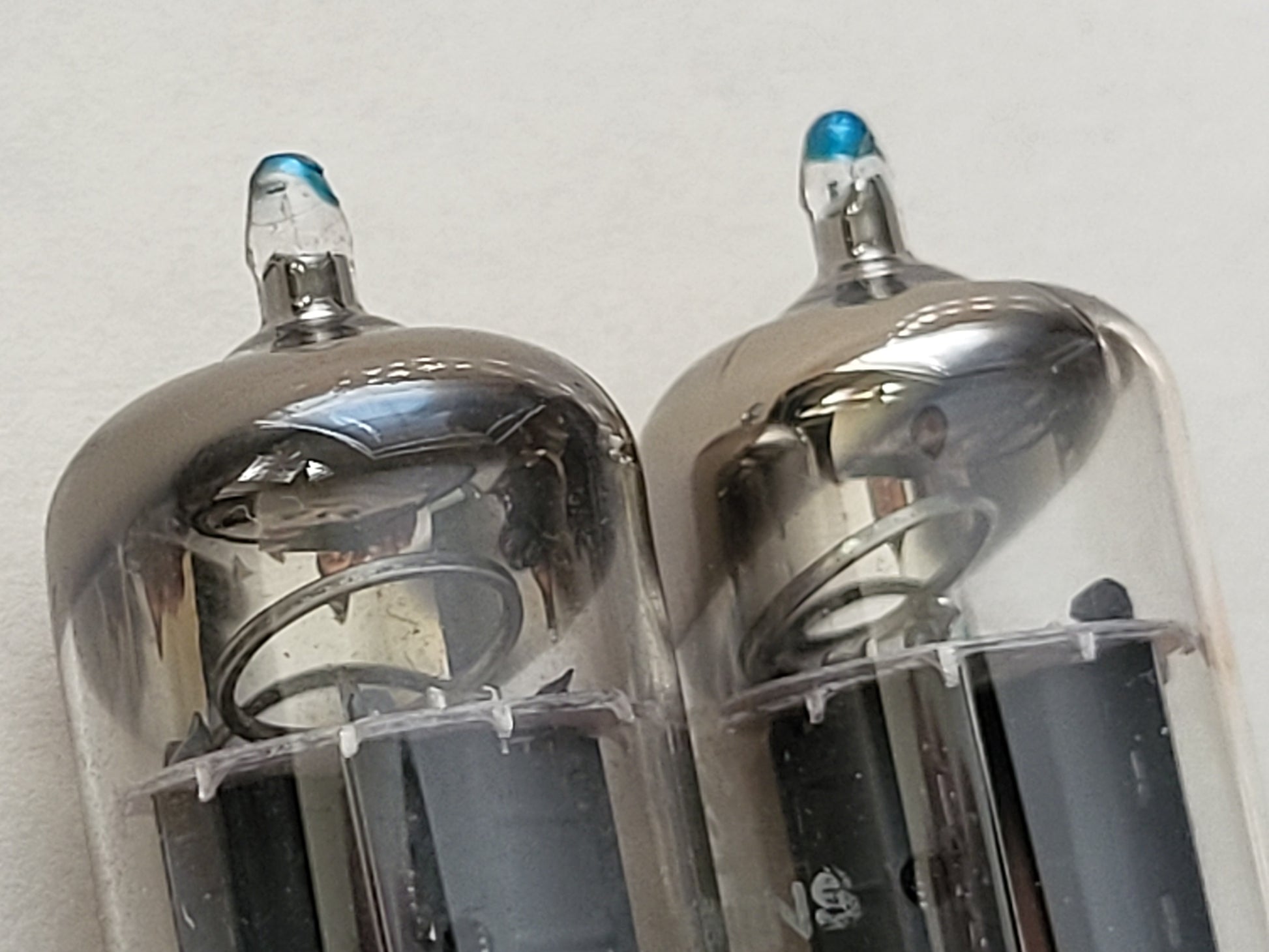

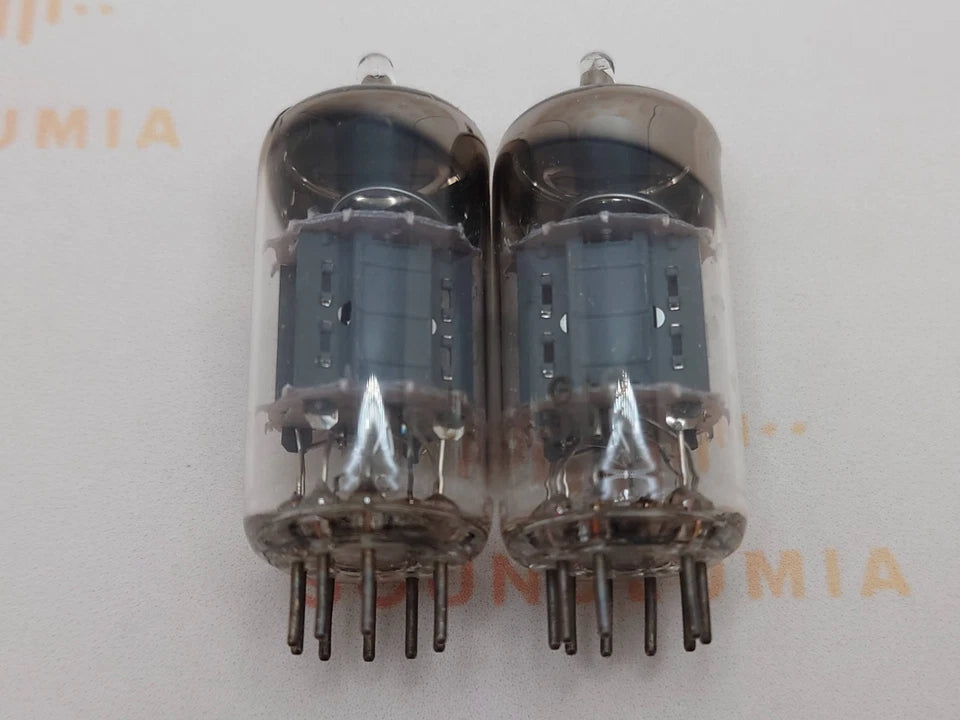

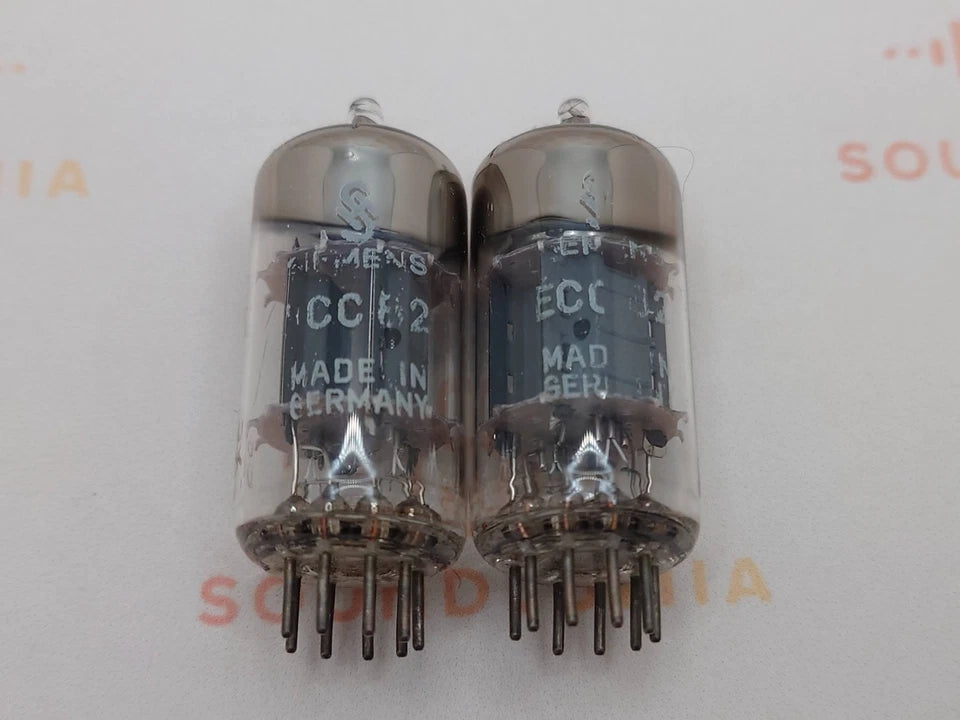

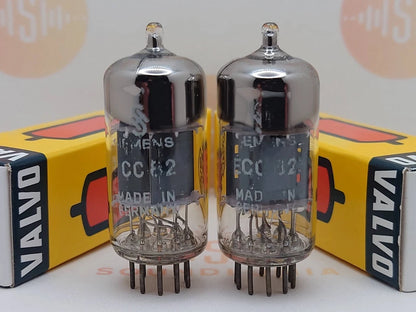

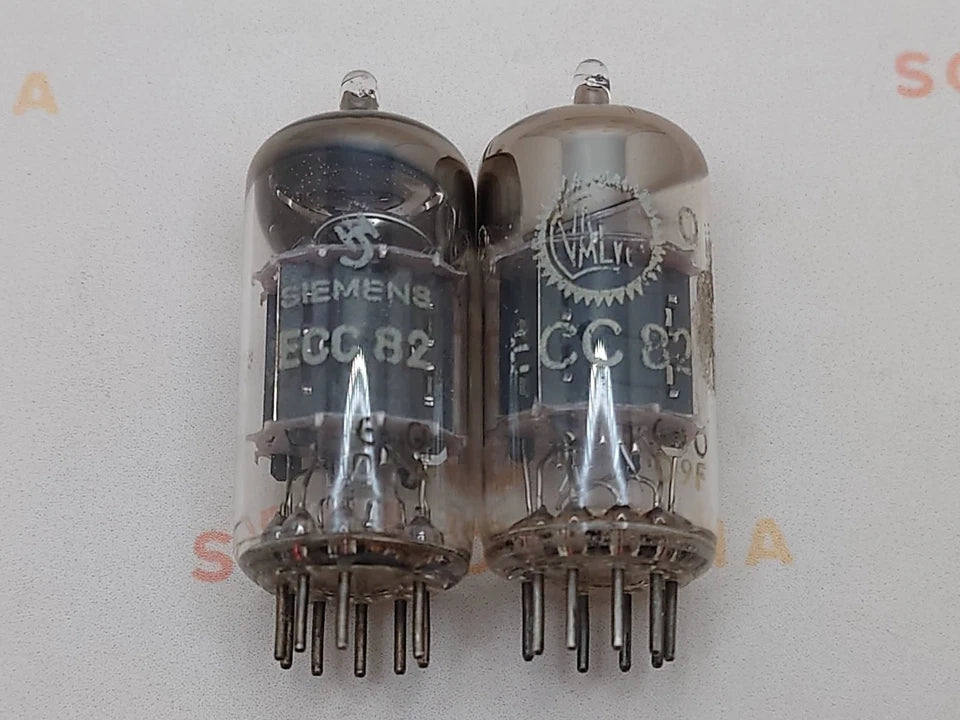

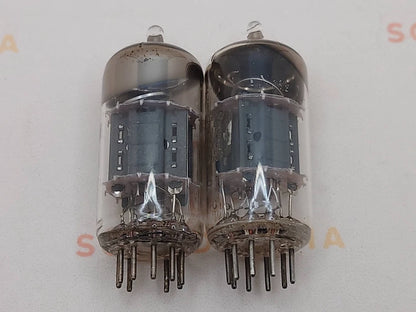

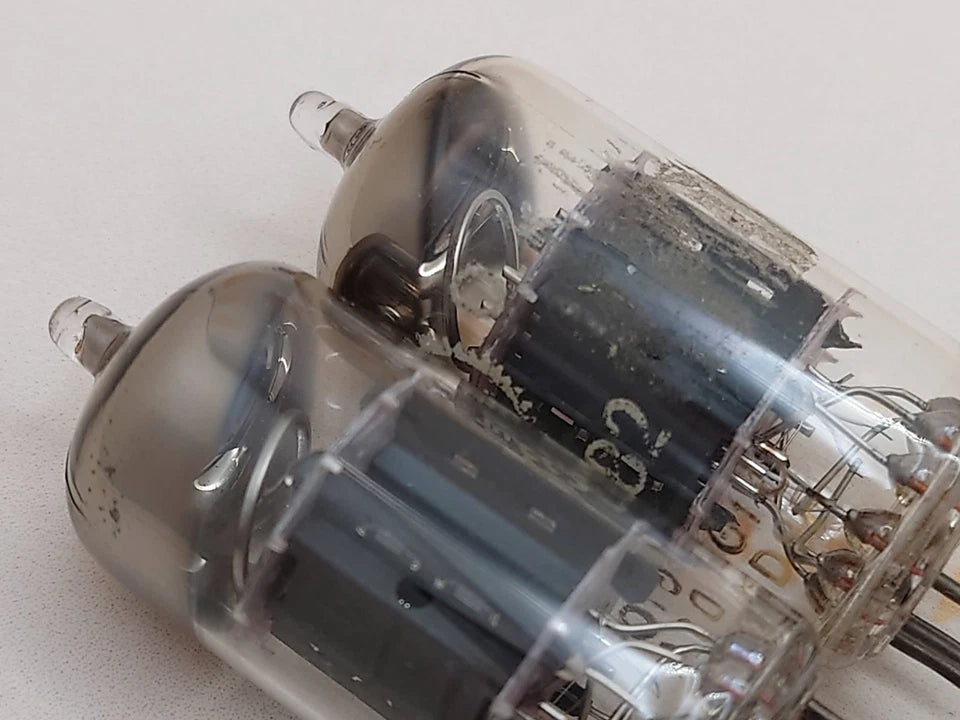

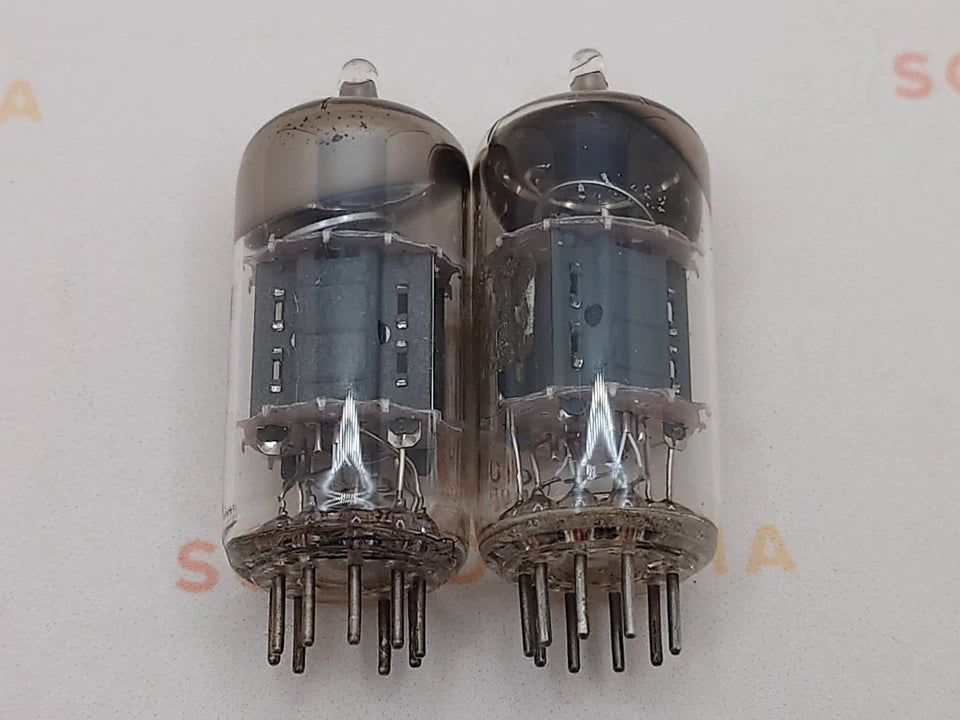

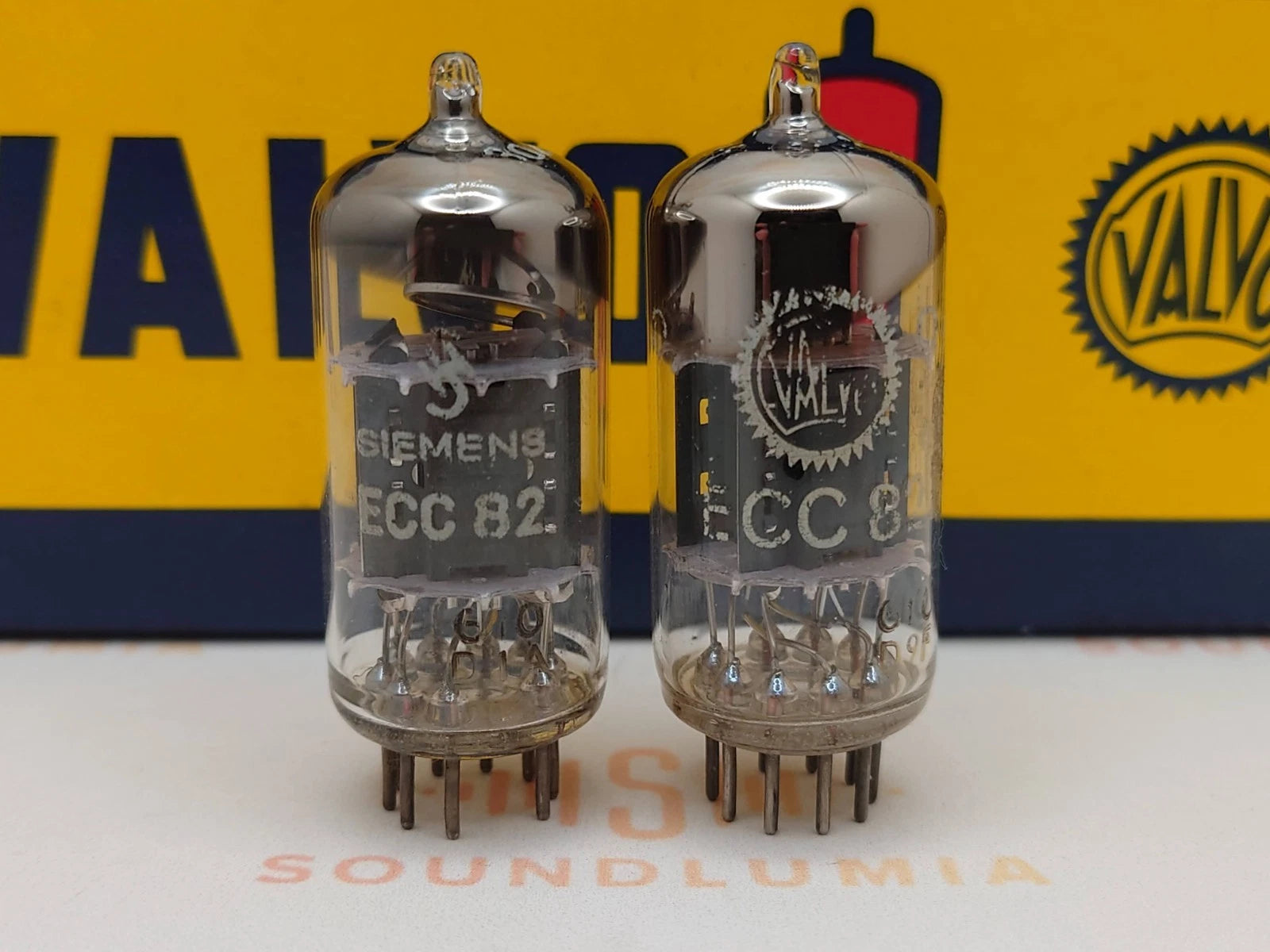

Siemens Valvo ECC82 Short Plates 30° Getter Blue Tip Matched Pair - Hamburg '60

$ 434.25

Professional Tube Testing

This set was tested and certified by RoeTest V11 tester with the following result:

Tube 1:

Measured transconductance(GM): 2.14/2.13 mA/V - 97%/97% (100% = 2.2 mA/V)

Measured plate current(IA): 10.607/10.292 mA - 101%/98% (100% = 10.5 mA)

Tube 2:

Measured transconductance(GM): 2.1/2.13 mA/V - 95%/97% (100% = 2.2 mA/V)

Measured plate current(IA): 10.09/10.33 mA - 96%/98% (100% = 10.5 mA)

NO shorts, leakage or gas. NO noise or microphonics.

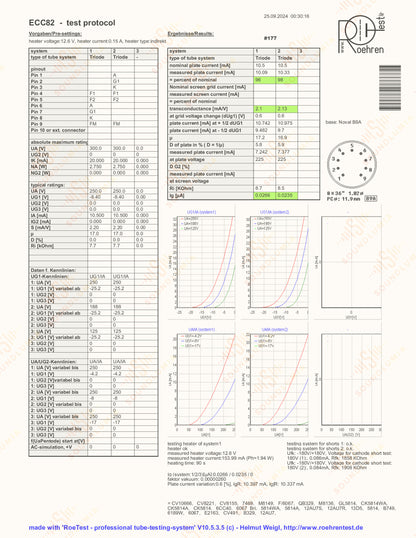

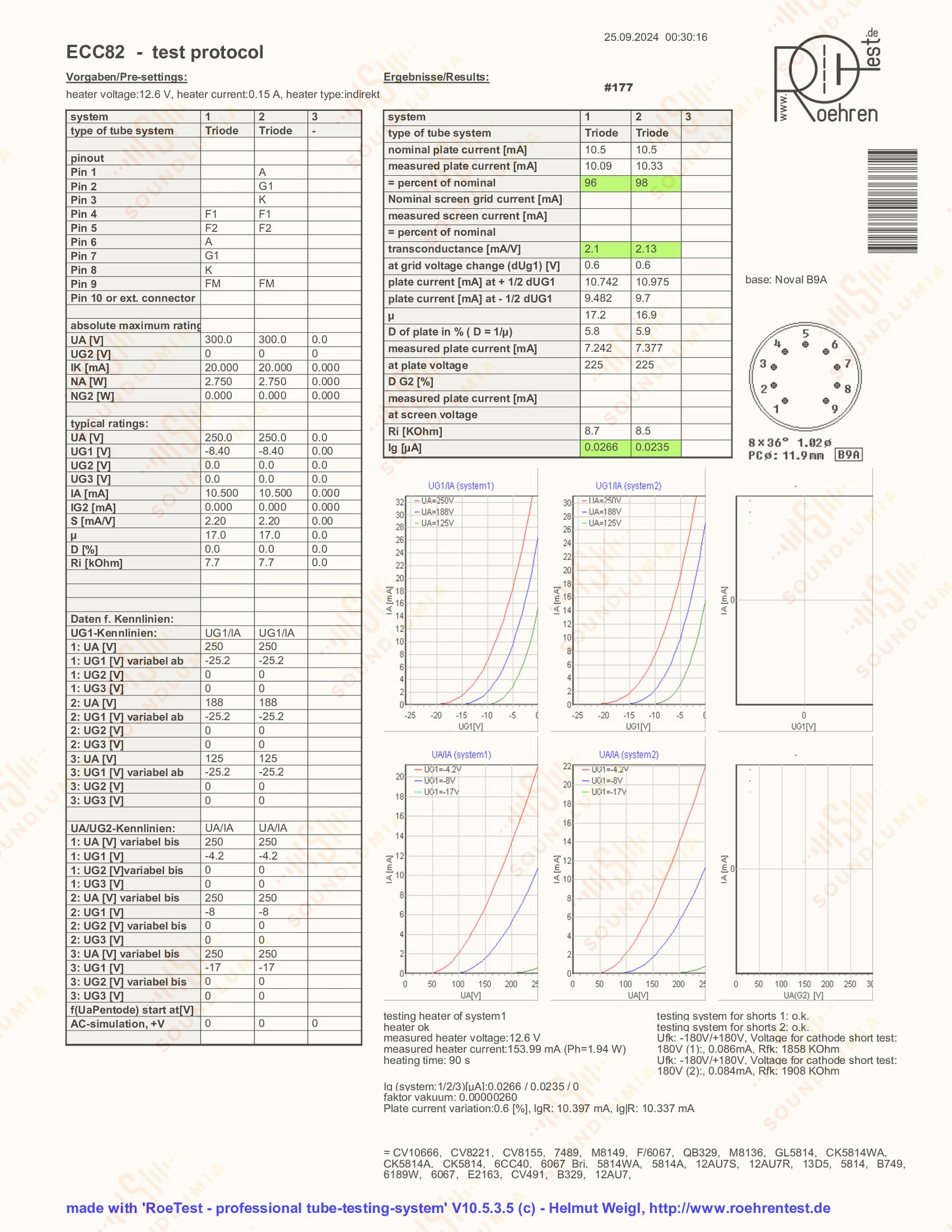

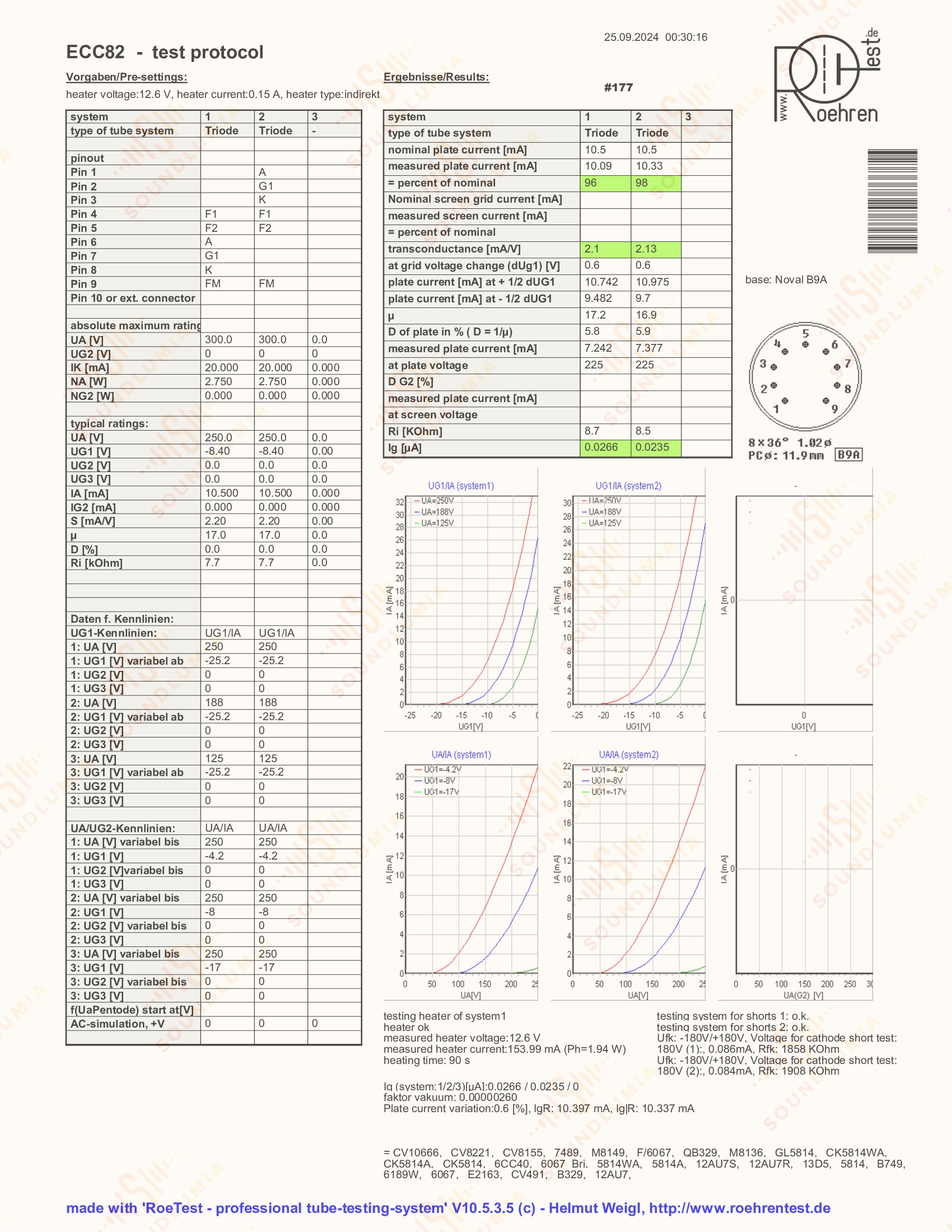

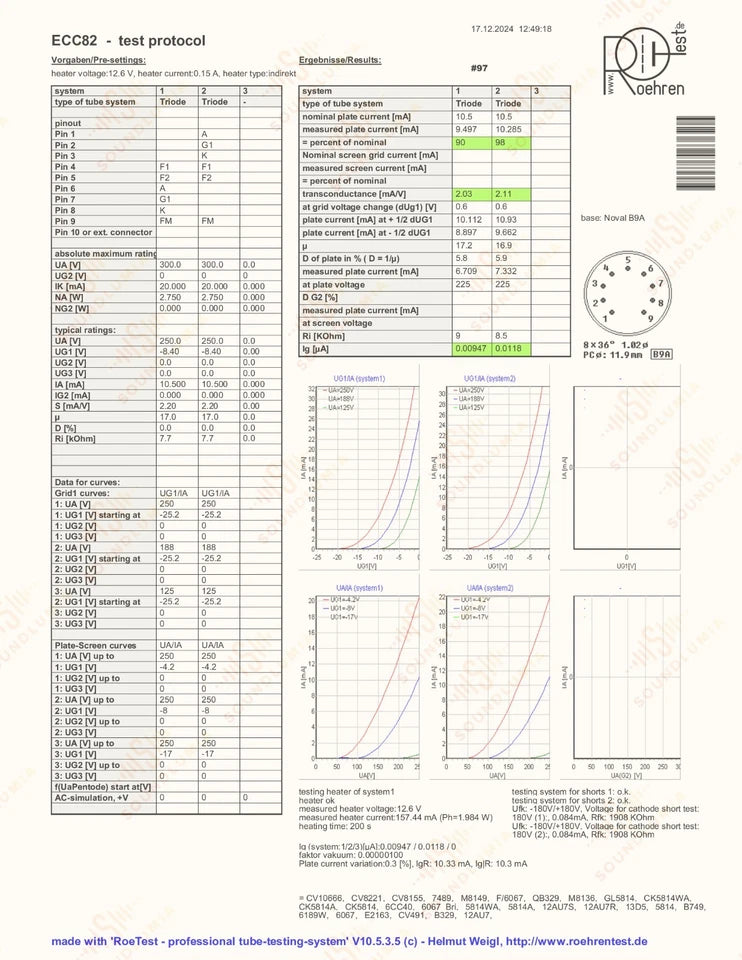

Curve trace is also included in the original RoeTest report.

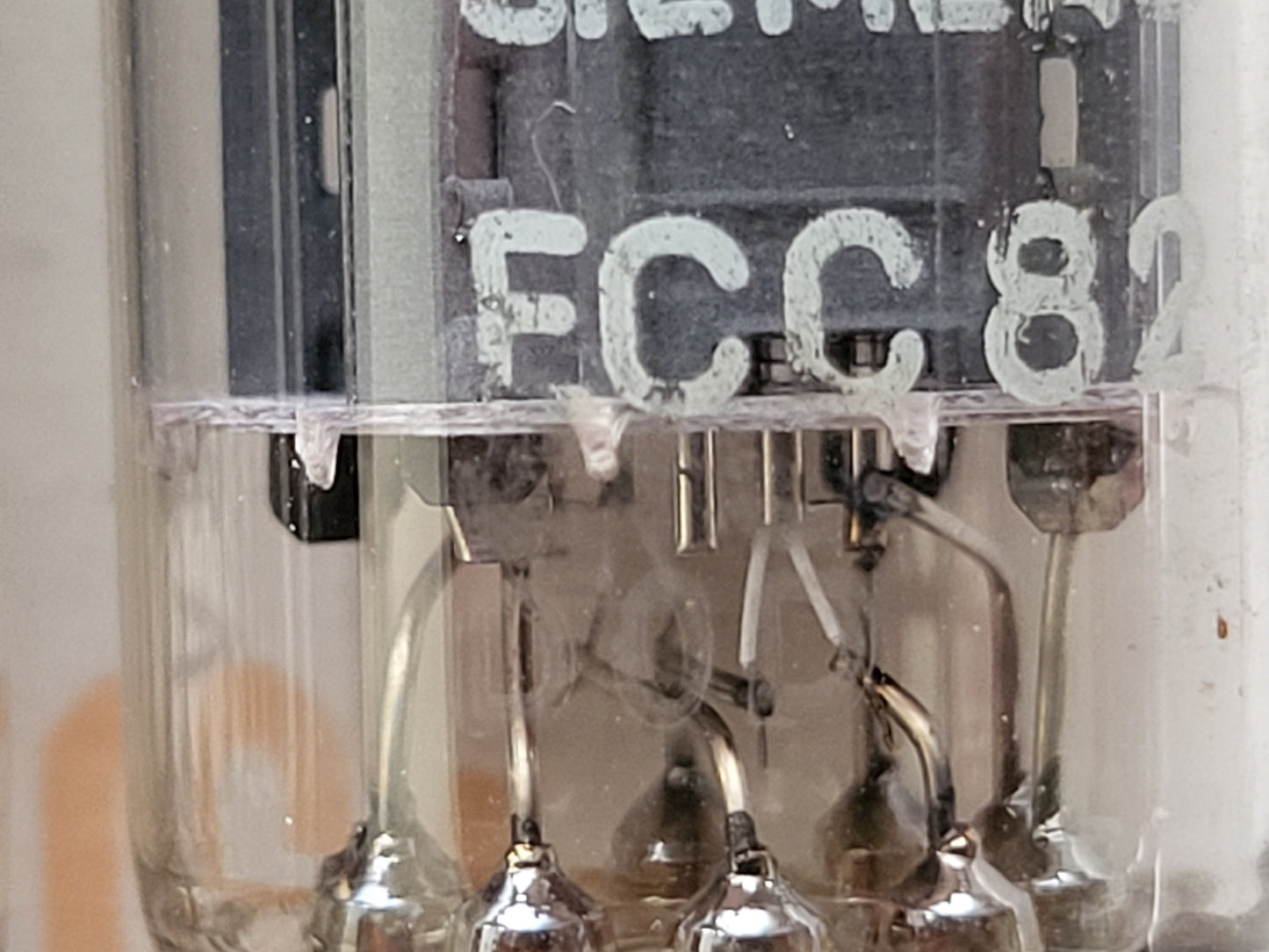

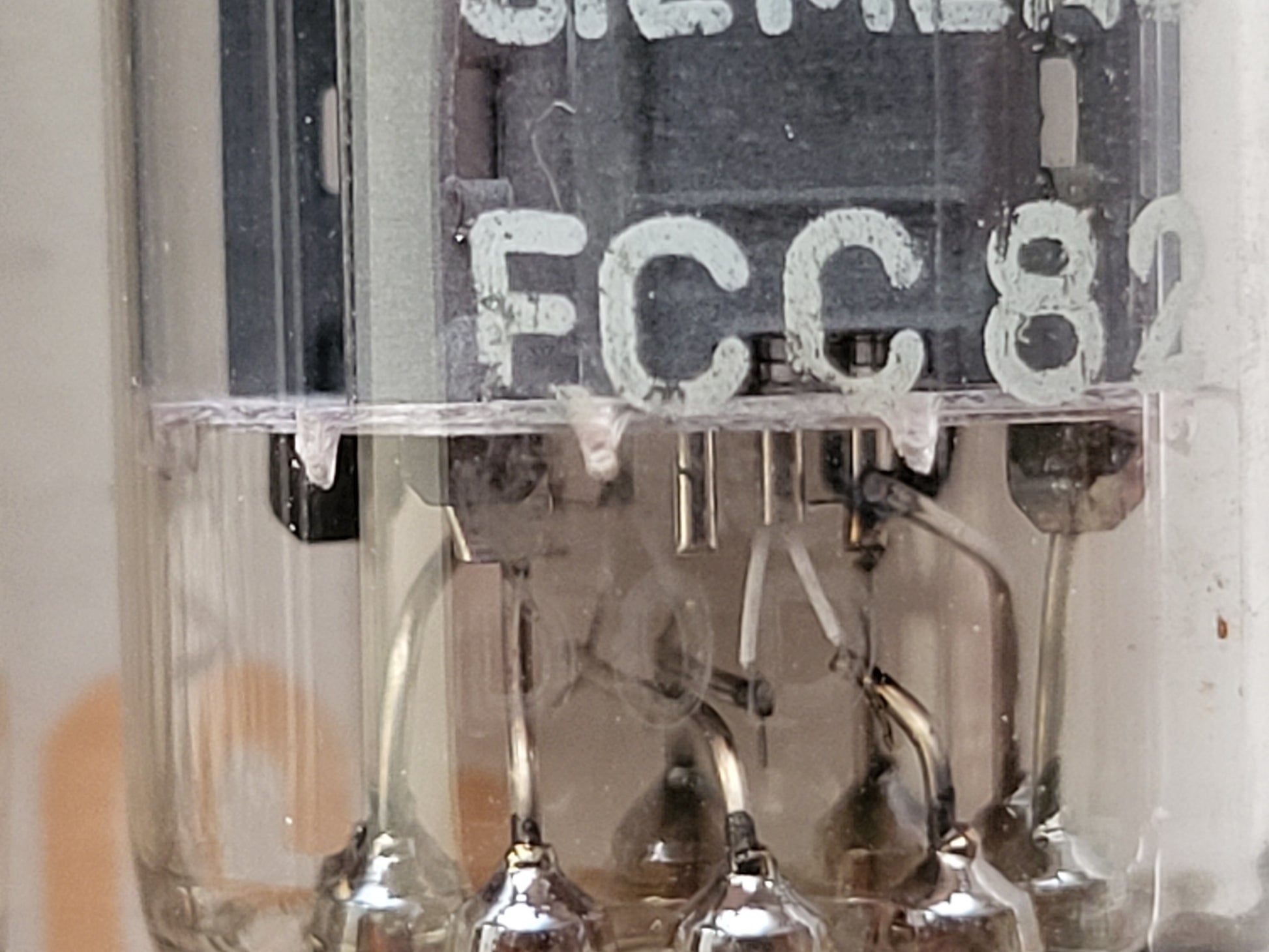

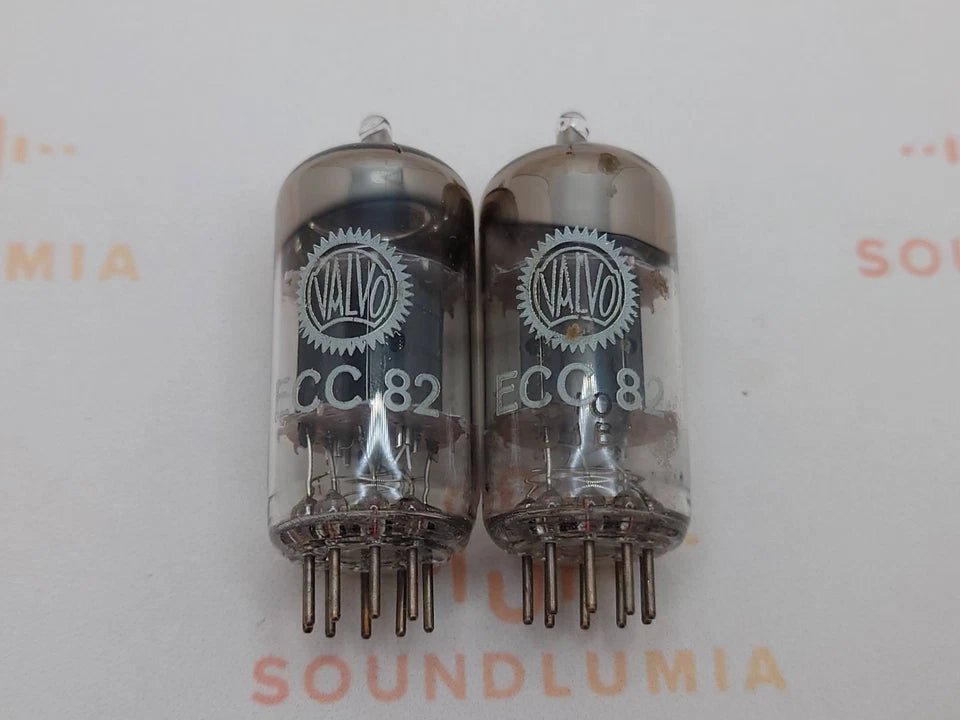

Appearance & cosmetic condition

Silkscreen: 95% - 100%

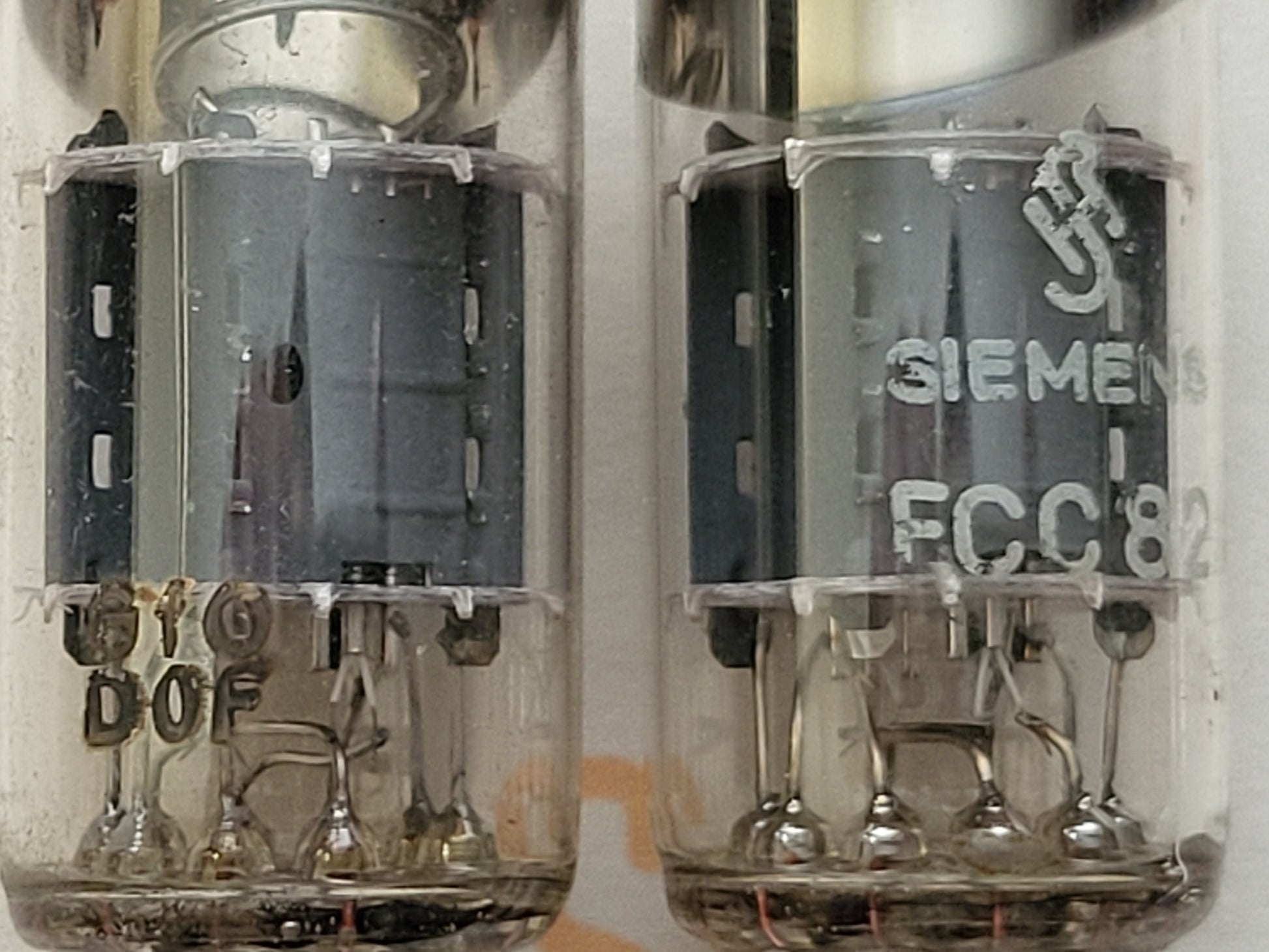

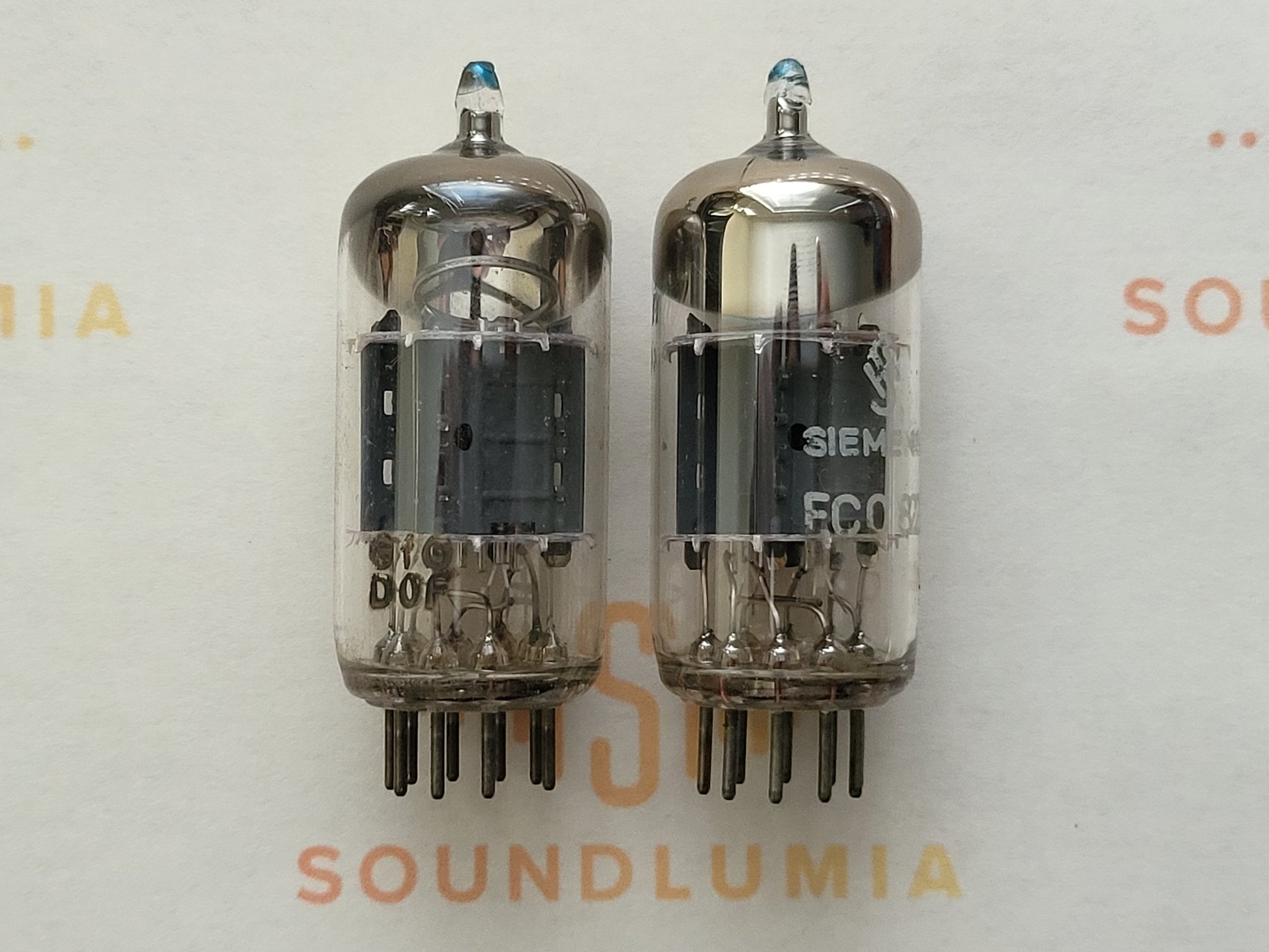

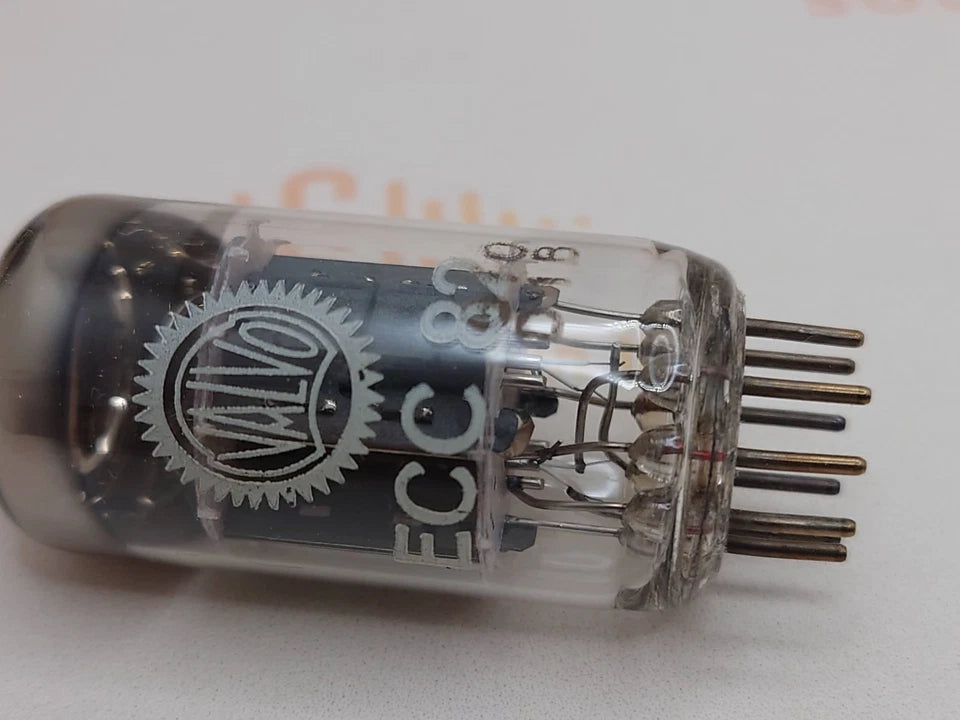

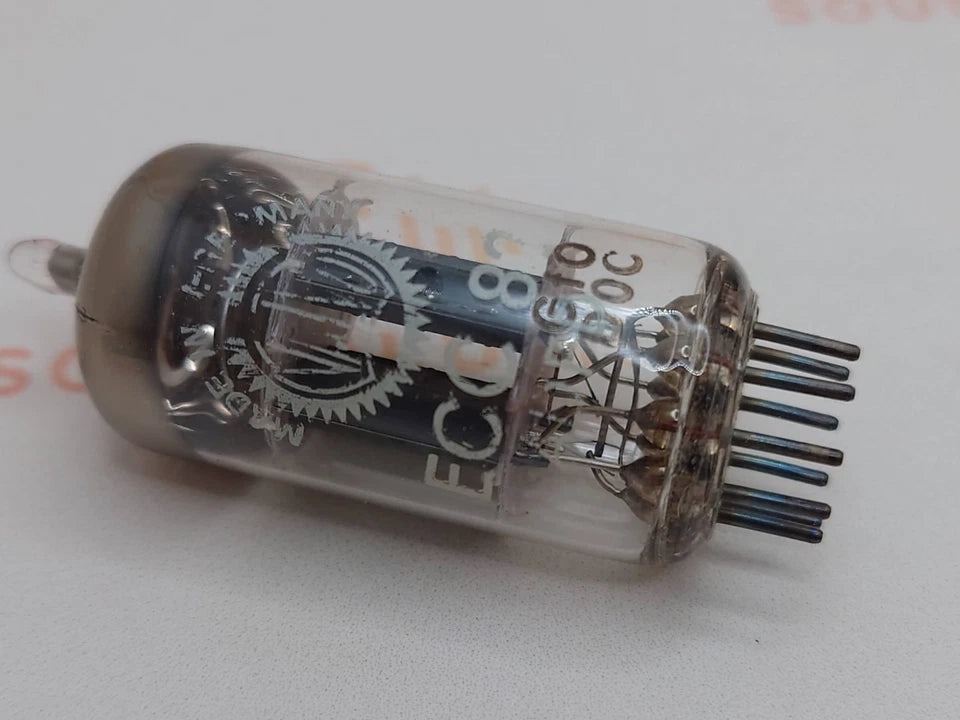

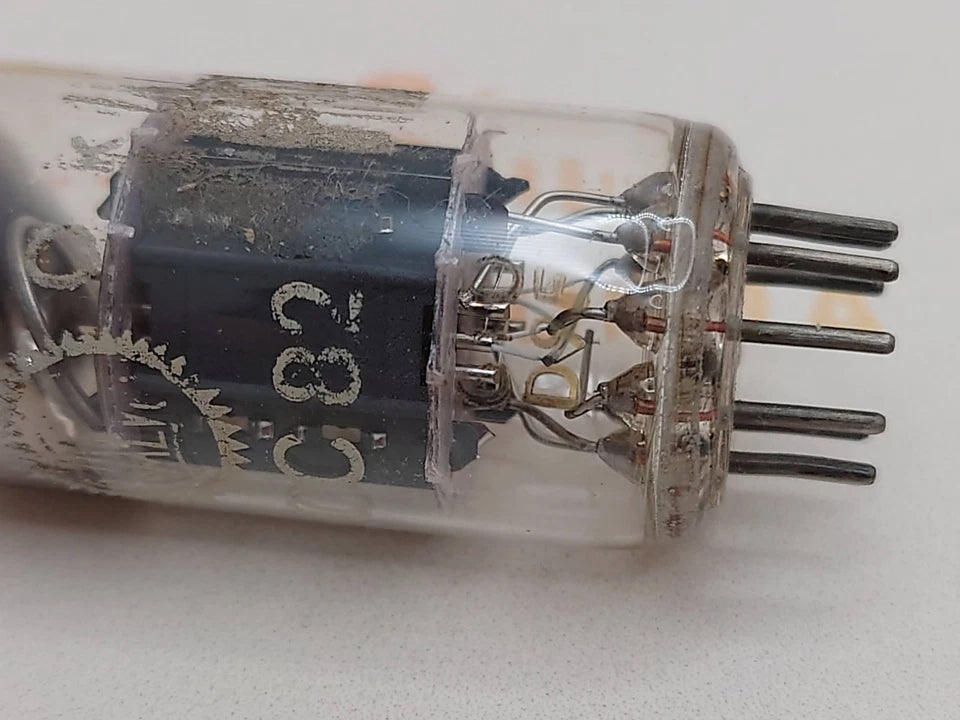

Gf0 D0D (Gf0 = ECC82 Short Plates Production Gen #0, D = Hamburg, Germany, 0 = 1960, D = April)

Gf0 D0F (Gf0 = ECC82 Short Plates Production Gen #0, D = Hamburg, Germany, 0 = 1960, F = June)

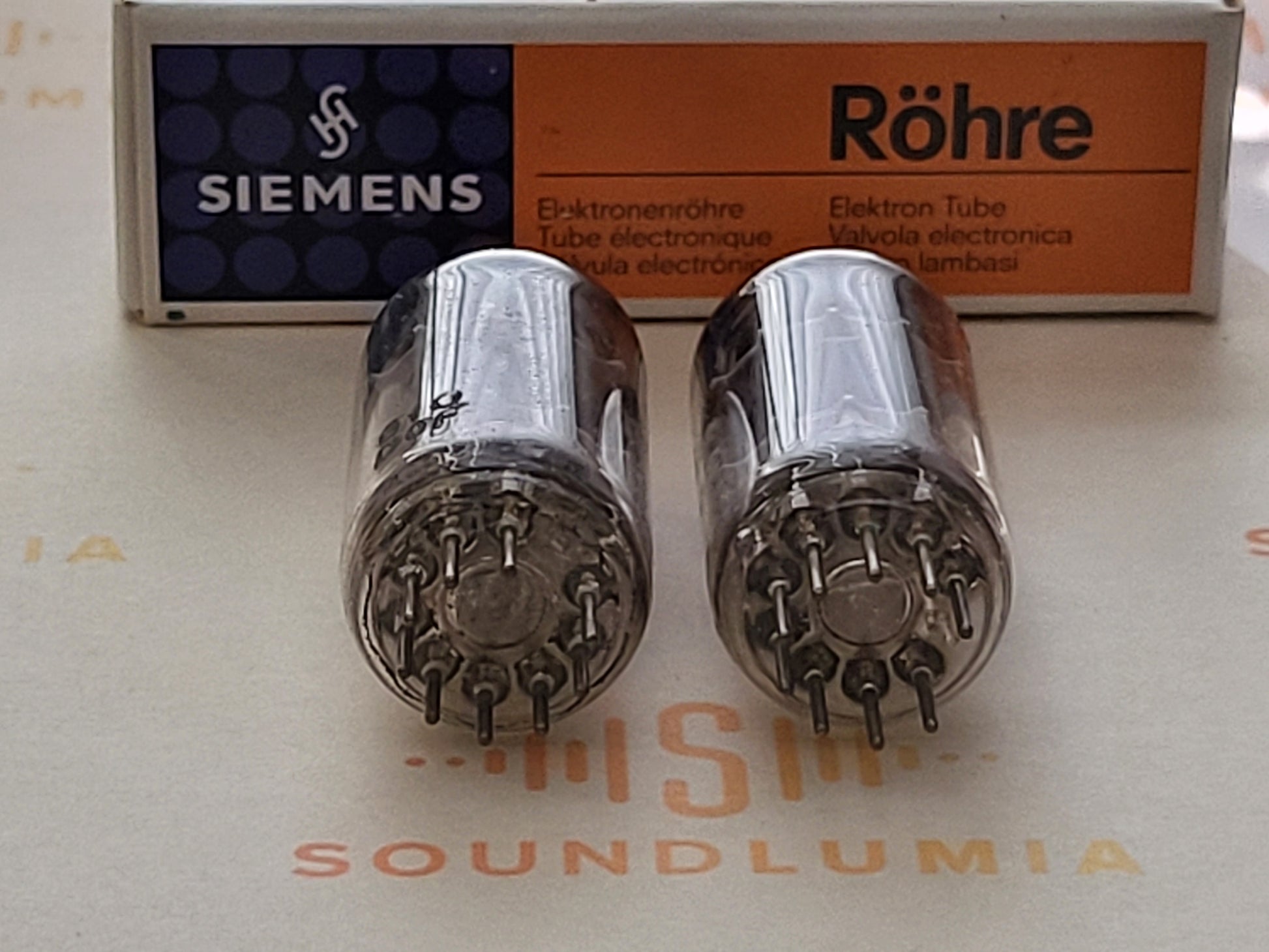

Packaging

NEW reproduction Valvo tube boxes.
