Philips

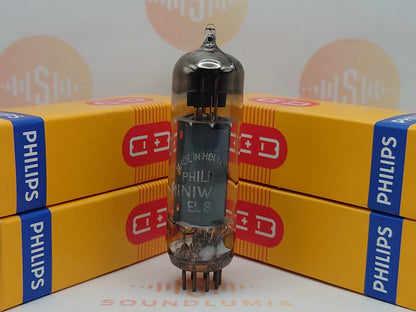

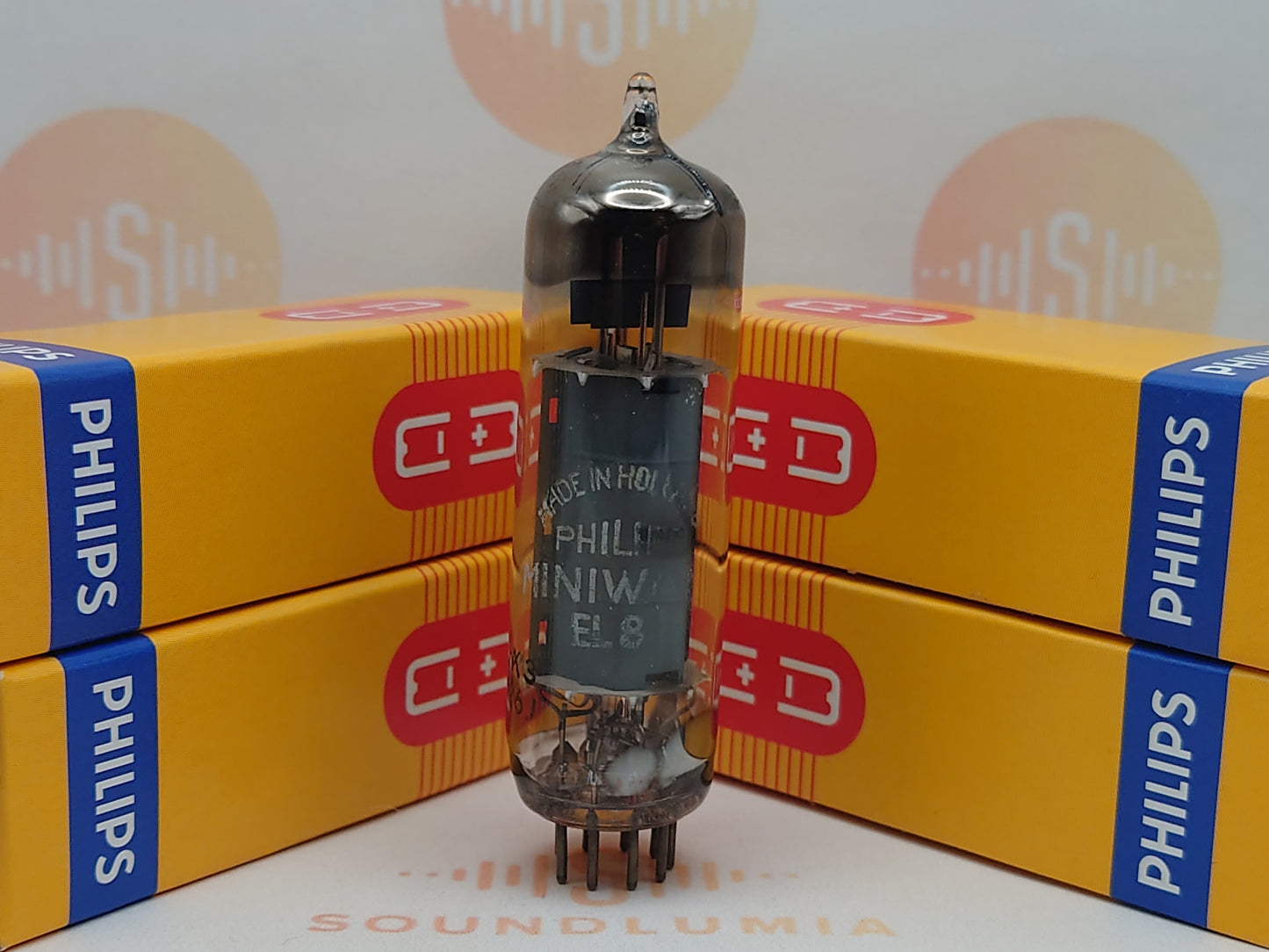

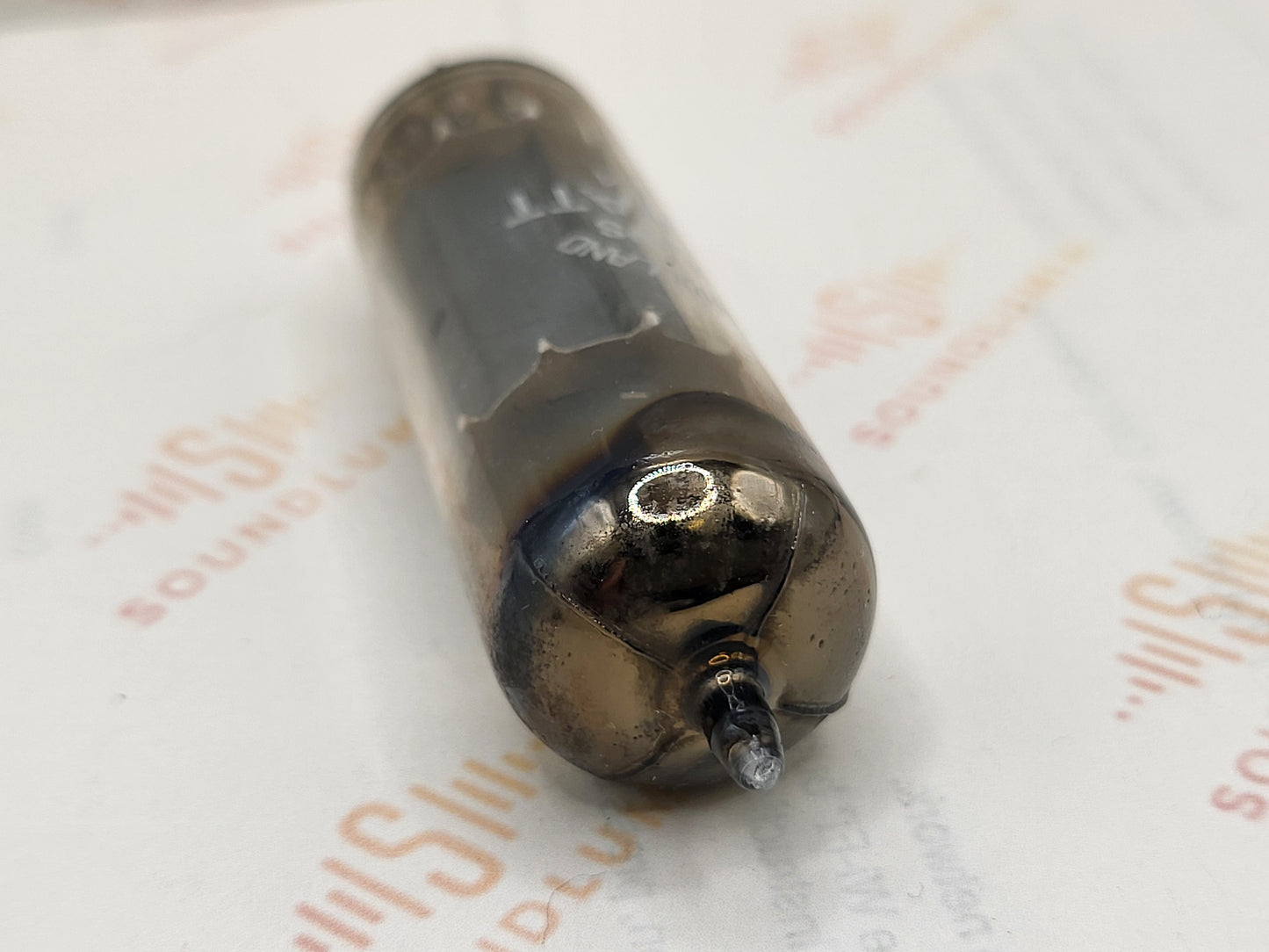

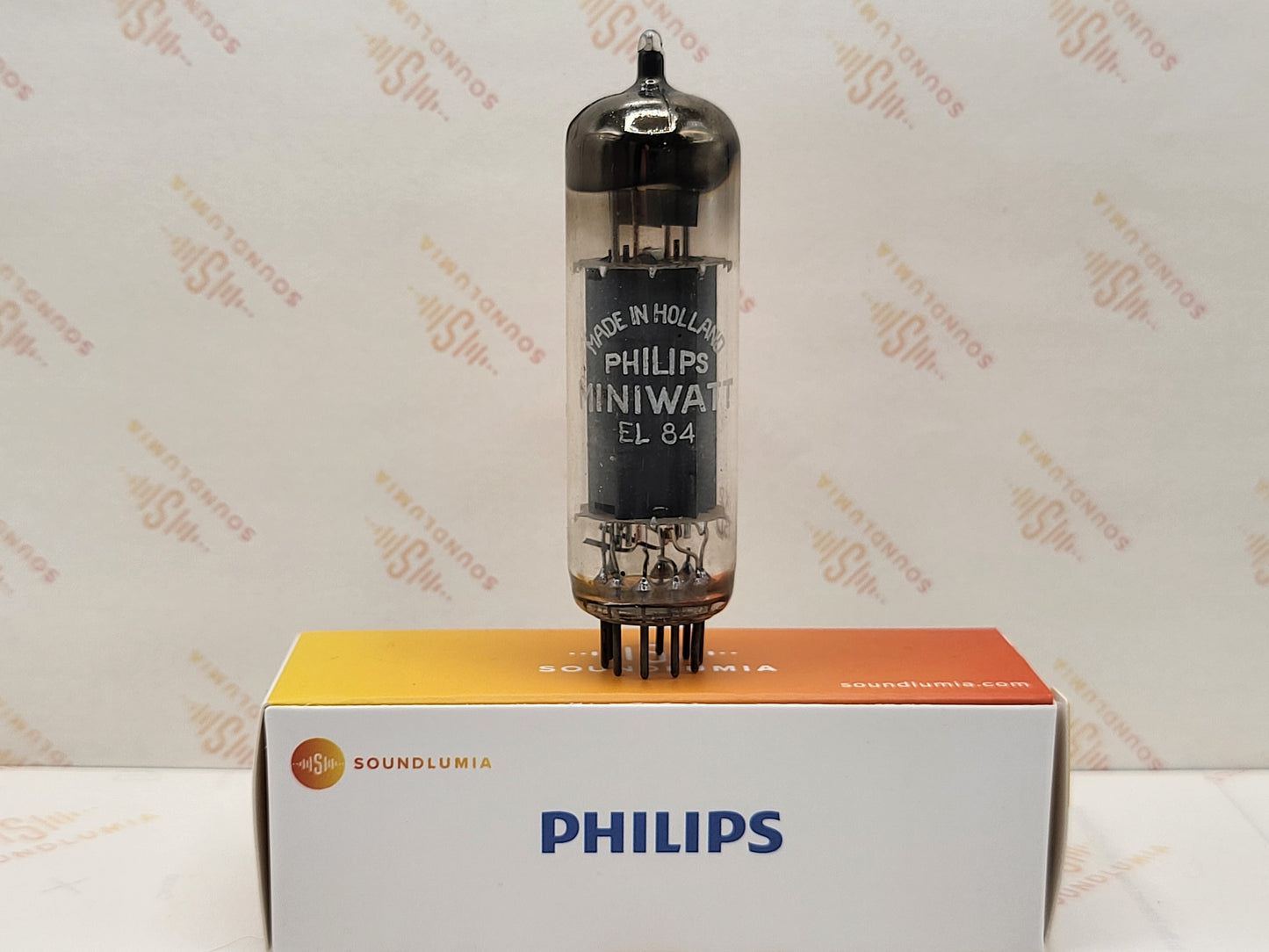

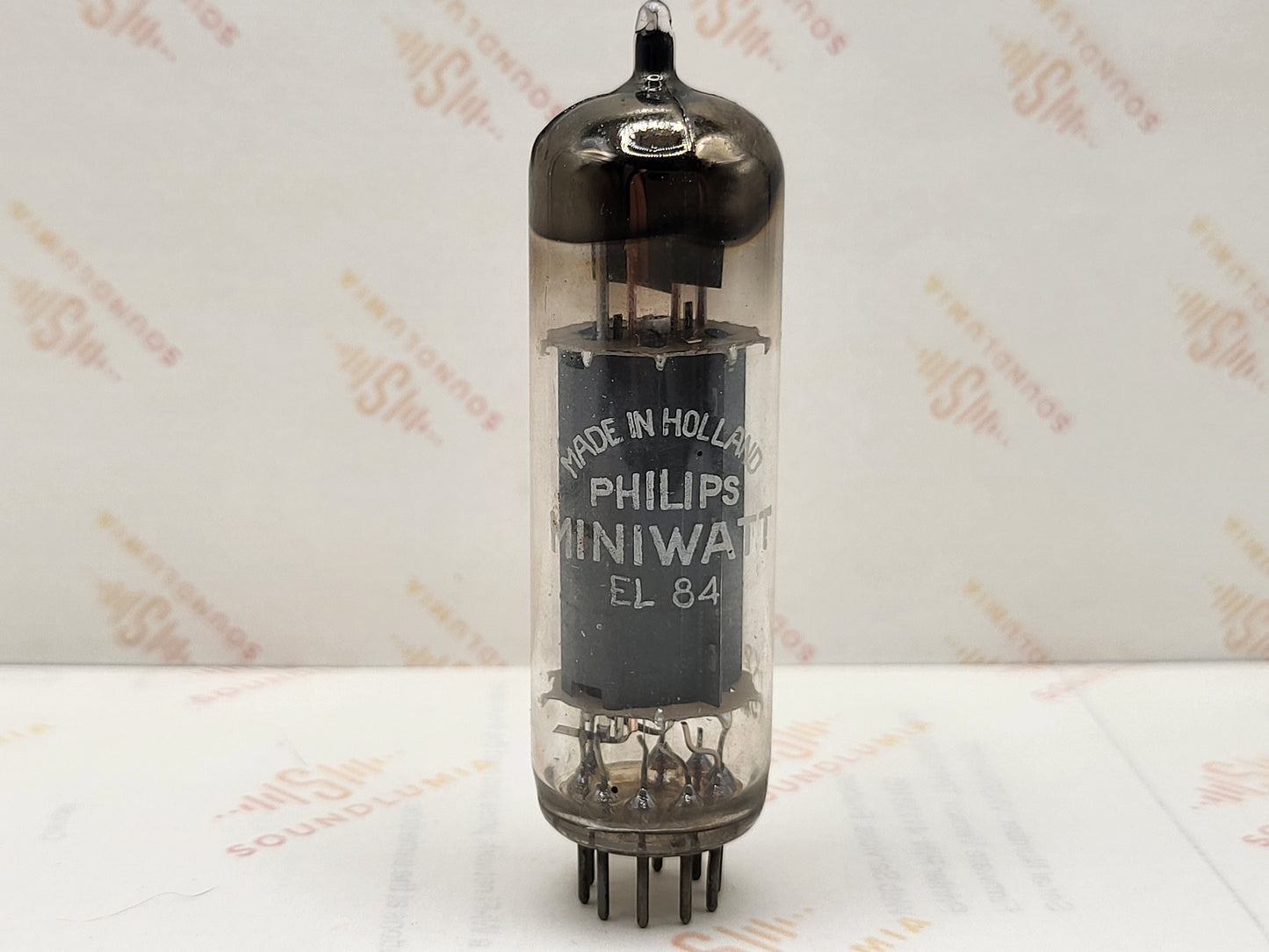

Amperex Holland/Philips EL84 D-Getter, Sittard
Amperex Holland/Philips EL84 D-Getter, Sittard
Regular price
$175.80 USD
Regular price
Sale price
$175.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Matched Pair/Pair ( Matched '60s - Near NOS )

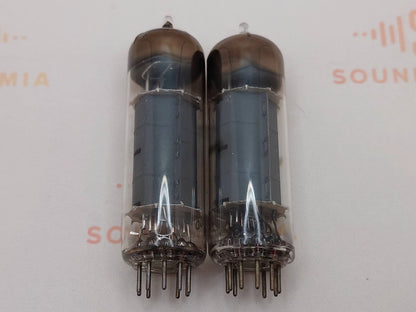

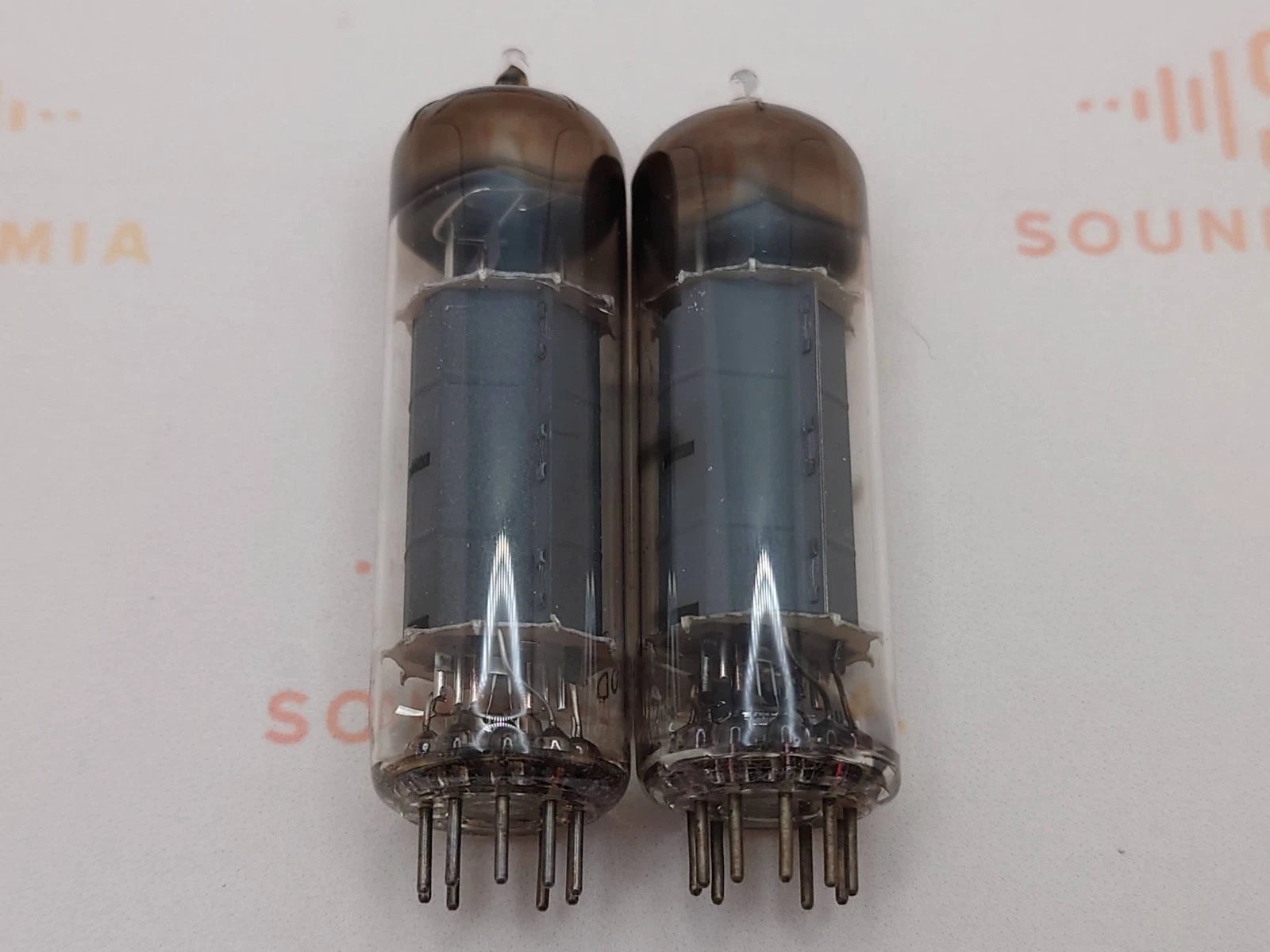

Philips EL84 6BQ5 D-getter Matched Pair - Sittard, NL 1960 - Near NOS
$175.80
Single Tube ( 1956 rX3 Gold Pins )
1x Amperex EL84 6BQ5 D-getter Gold Pins - Sittard, NL 1956 rX3
$90.00
Matched Pair/Pair ( 2x rX2 1956 Same Code - Strong )
2x Philips EL84 6BQ5 D-getter - Sittard, NL 1956 rX2 - Same Code - Strong
$166.00

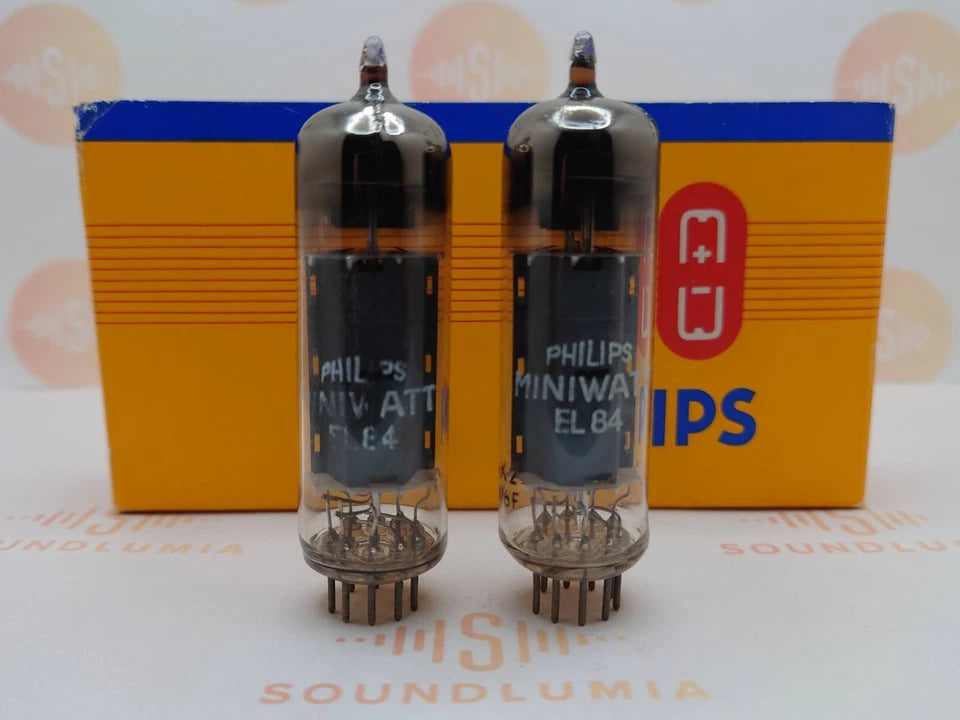

Matched Pair/Pair ( '55 Philips Label,Sittard - NOS )

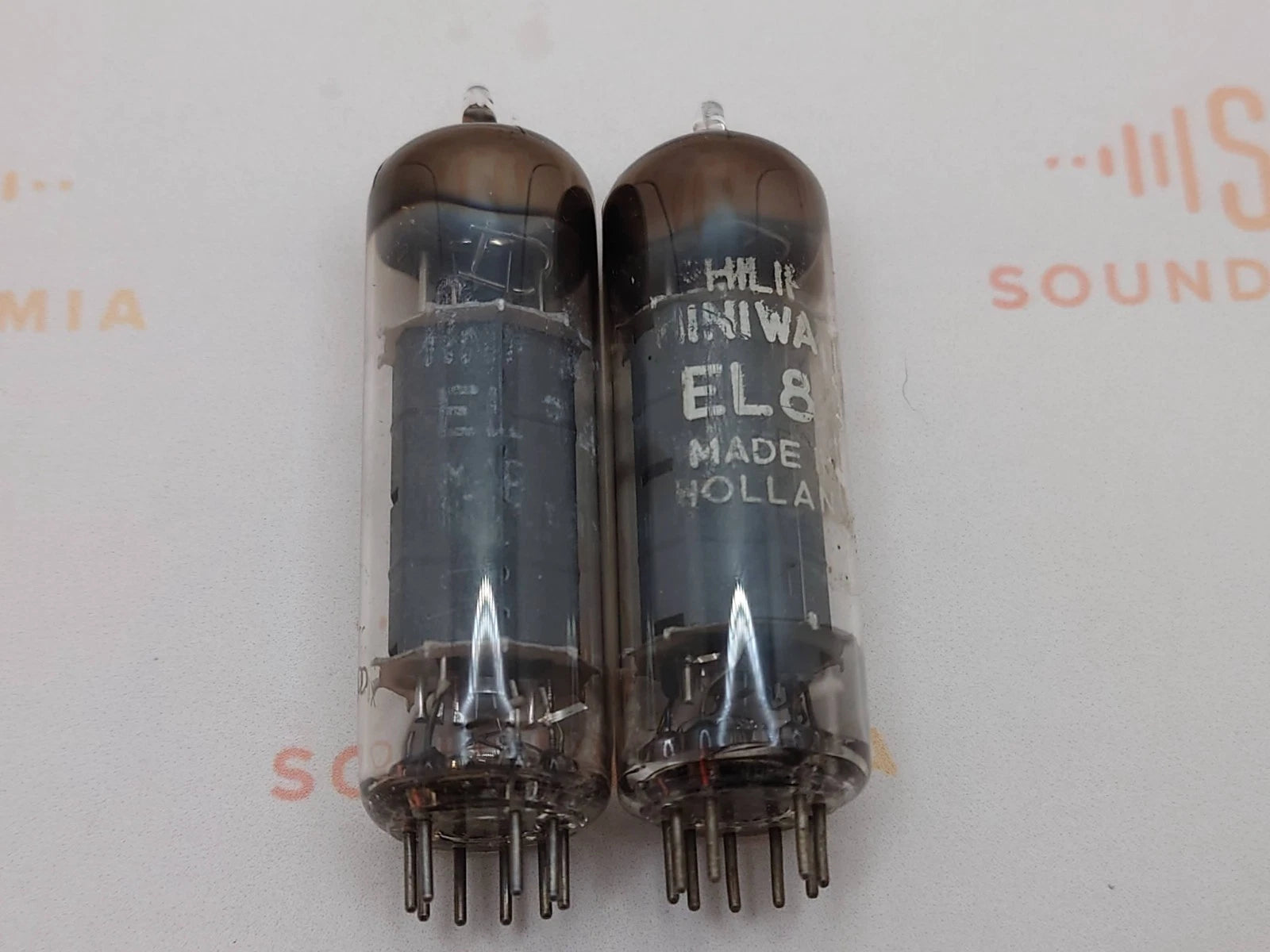

2x Philips Miniwatt EL84 6BQ5 D-getter Tubes - Sittard, NL 1955 rX1/rX2 - NOS
$249.50
Product Summary
Model: 1955 Philips EL84 6BQ5 (Made in Holland)
Soundlumia Tube Sound Rating: 9.0/10 - Outstanding
Date codes:

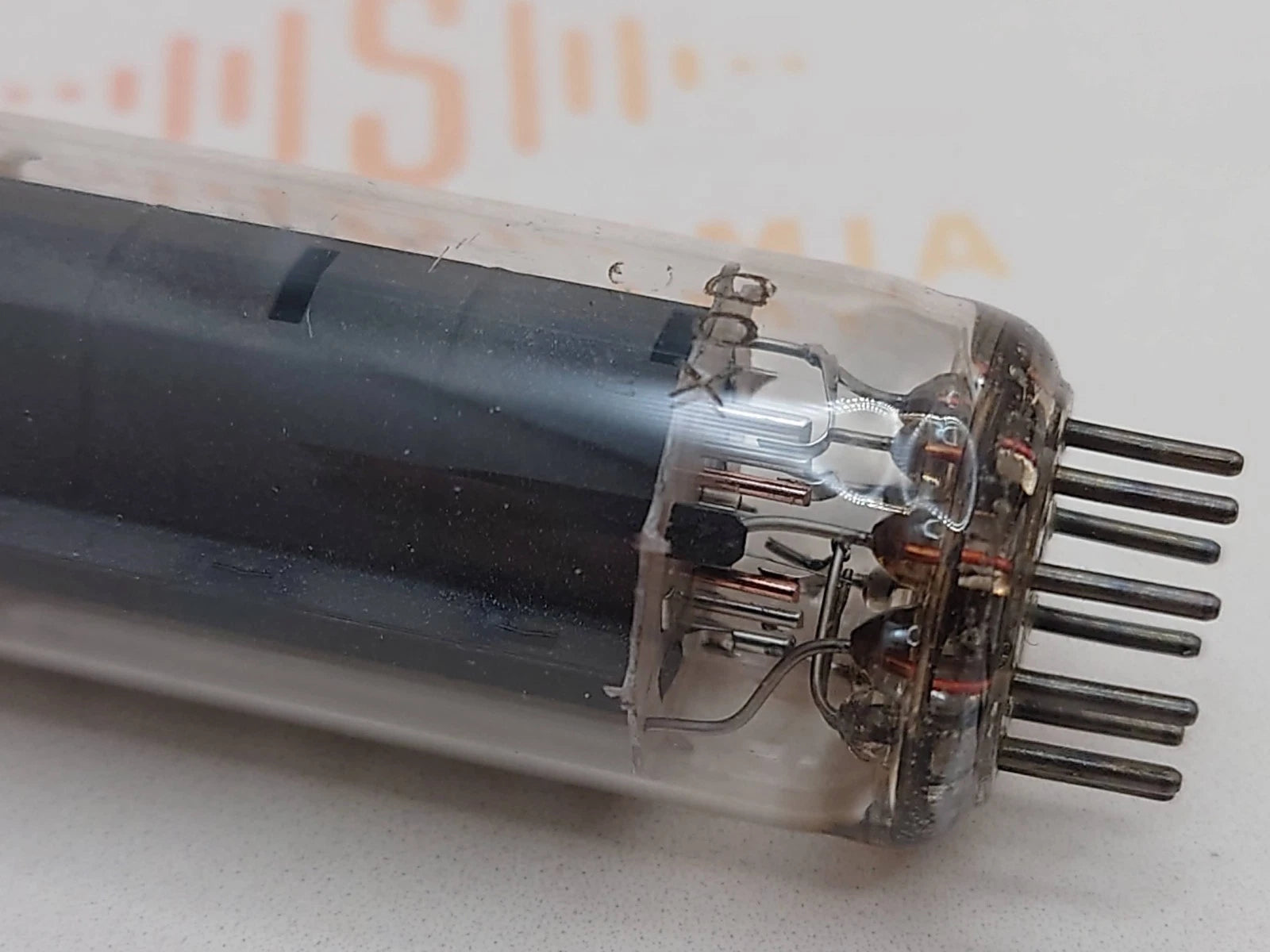

rX1 X5B (rX1 = EL84 Production Gen #1, X = Sittard, NL, 5 =1955, B = February)
rX2 X5F (rX2 = EL84 Production Gen #1, X = Sittard, NL, 5 =1955, F = June)
GM (Mutual Conductance) test result: 104%/120% of NOS/NEW
Silkscreen: 90% - 100%
Packaging: New white box
Professional Tube Testing
NO shorts, leakage or gas. NO noise or microphonics.
This tube tested NOS (100%+ mutual conductance value for NOS/NEW) on a reliable Mercury 2000 tube tester with the following result (mutual conductance both in uMhos and in percentage of NOS/NEW value):
Tube 1: 2,600 (104%)
Tube 2: 3,000 (120%)
Good tubes start at 1,200 and new tubes (incl. NOS/NIB) 2,500, and the Mercury 2000's rated mutual conductance for new EF86 tube is 2,500. Test result can also be seen in the pictures. In case you wonder what all these numbers mean to your sound experience, it's actually quite straightforward: mutual conductance directly translates to a tube's ability to amplify sound, so the higher the numbers the better.

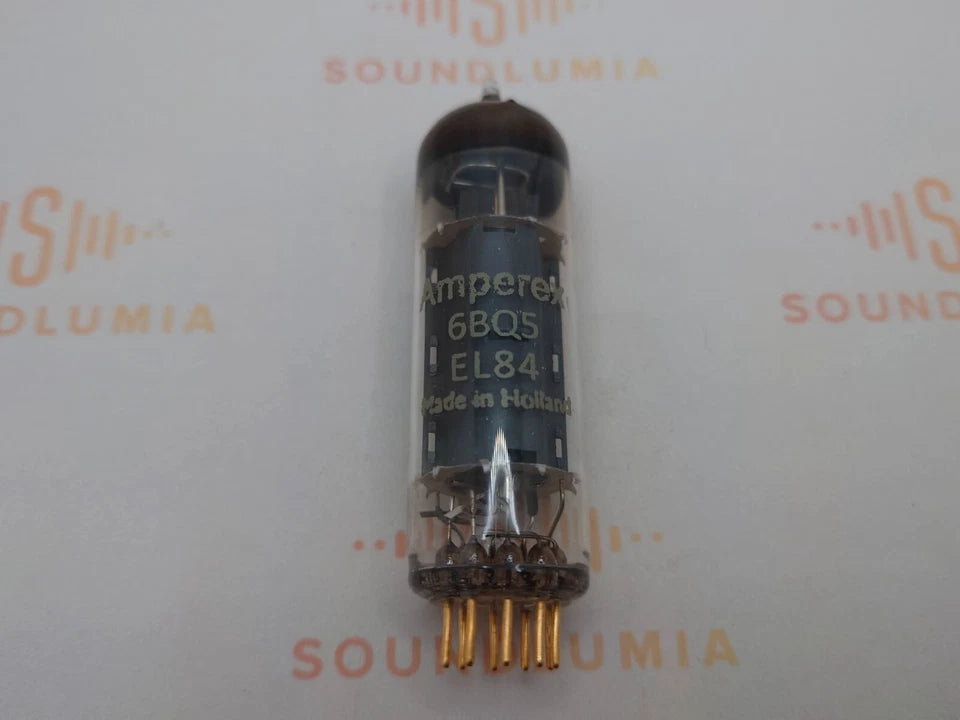

Single Tube ( '57 Amperex rX3, Sitterd - NOS )

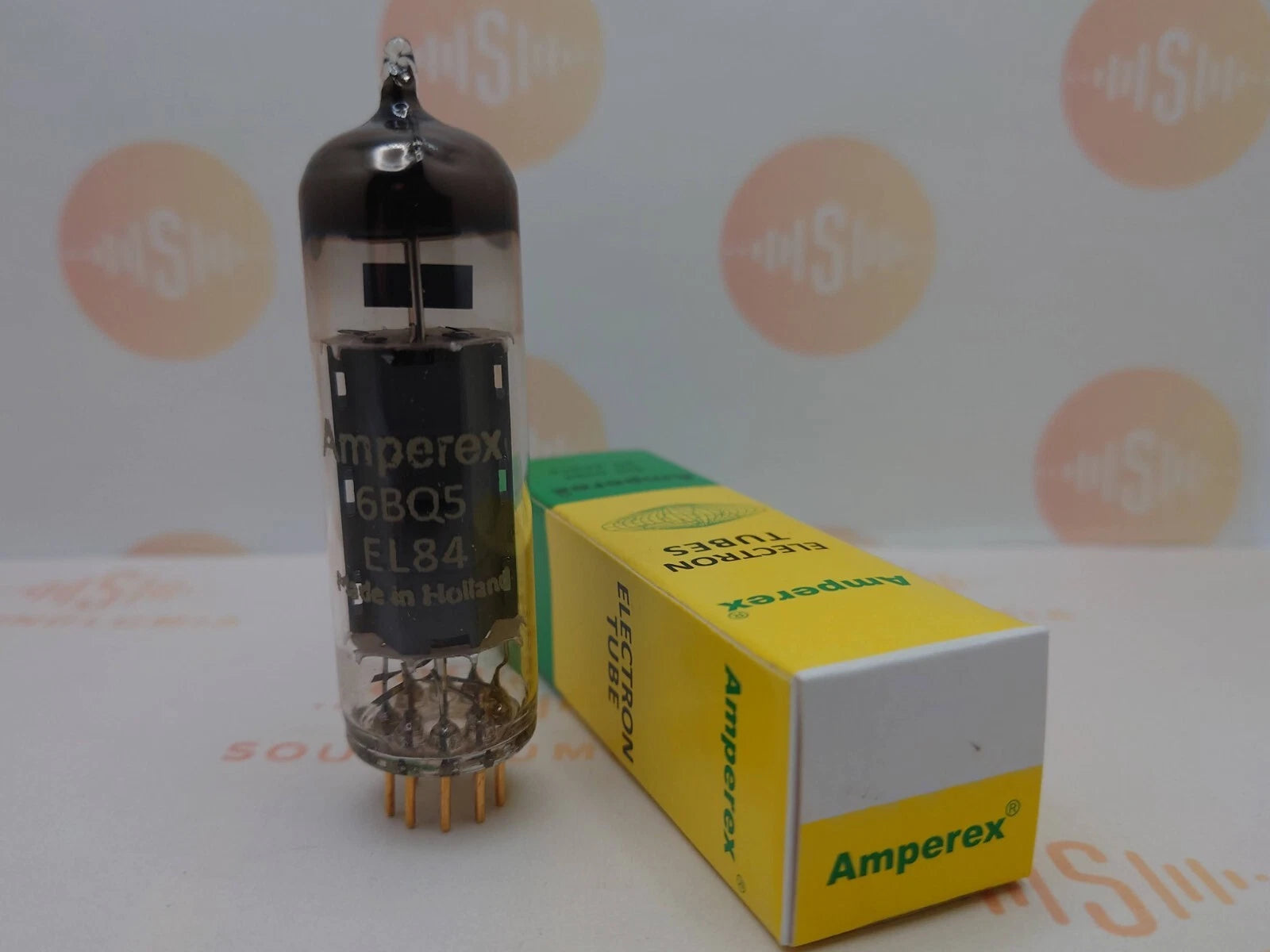

1x Amperex EL84 6BQ5 D-getter - Sittard, NL 1957 rX3 - Test NOS
$101.00
Product Summary
Model: 1957 Amperex EL84 6BQ5 (Made in Netherlands)
Soundlumia Tube Sound Rating: 9.5/10 - Outstanding
Professional Tube Testing

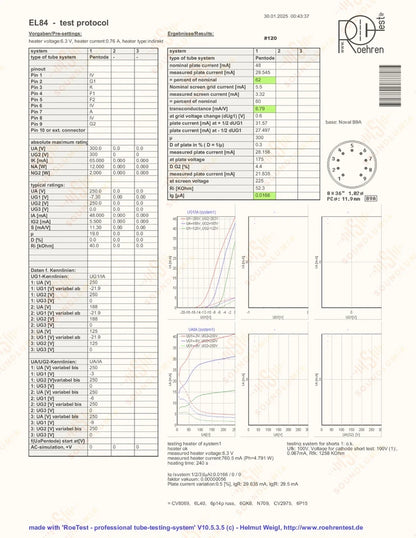

This set was tested and certified by RoeTest V11 Professional Tube Testing System with the following result:
Tube 1:
Measured transconductance(GM): 11.37 mA/V - 101% (100% = 11.3 mA/V)
Measured plate current(IA): 47.84 mA - 100% (100% = 48 mA)
NO shorts, leakage or gas. NO noise or microphonics.

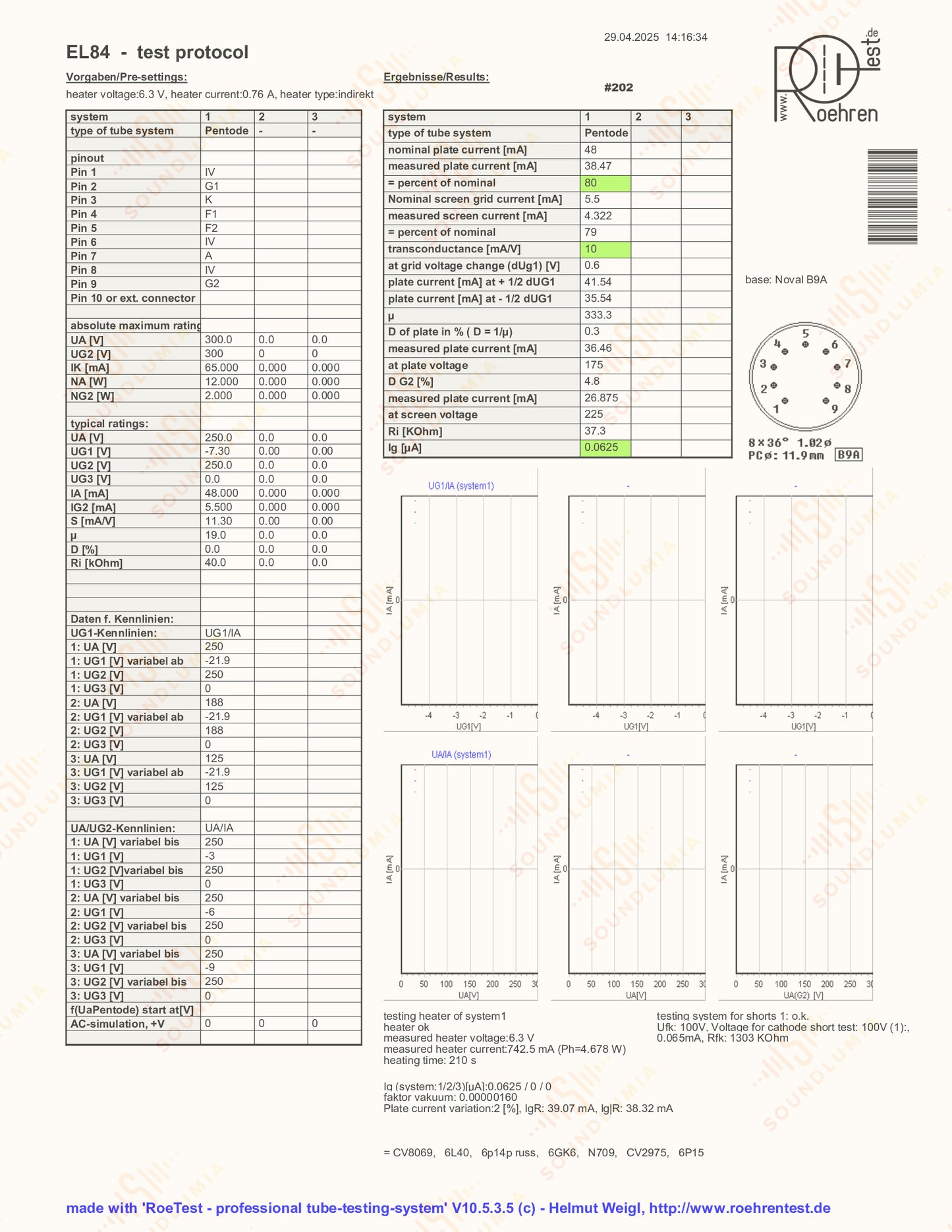

Curve trace is also included in the original RoeTest report.
Appearance & cosmetic condition
Silkscreen: 95%
Date code(s):
rX3 X7B (rX3 = EL84 Generation #3, X = Sitard, NL, 7 = 1957, B = February)
Packaging
NEW white tube box.
Single Tube ( '58 Philips rX3, Sitterd - Strong )

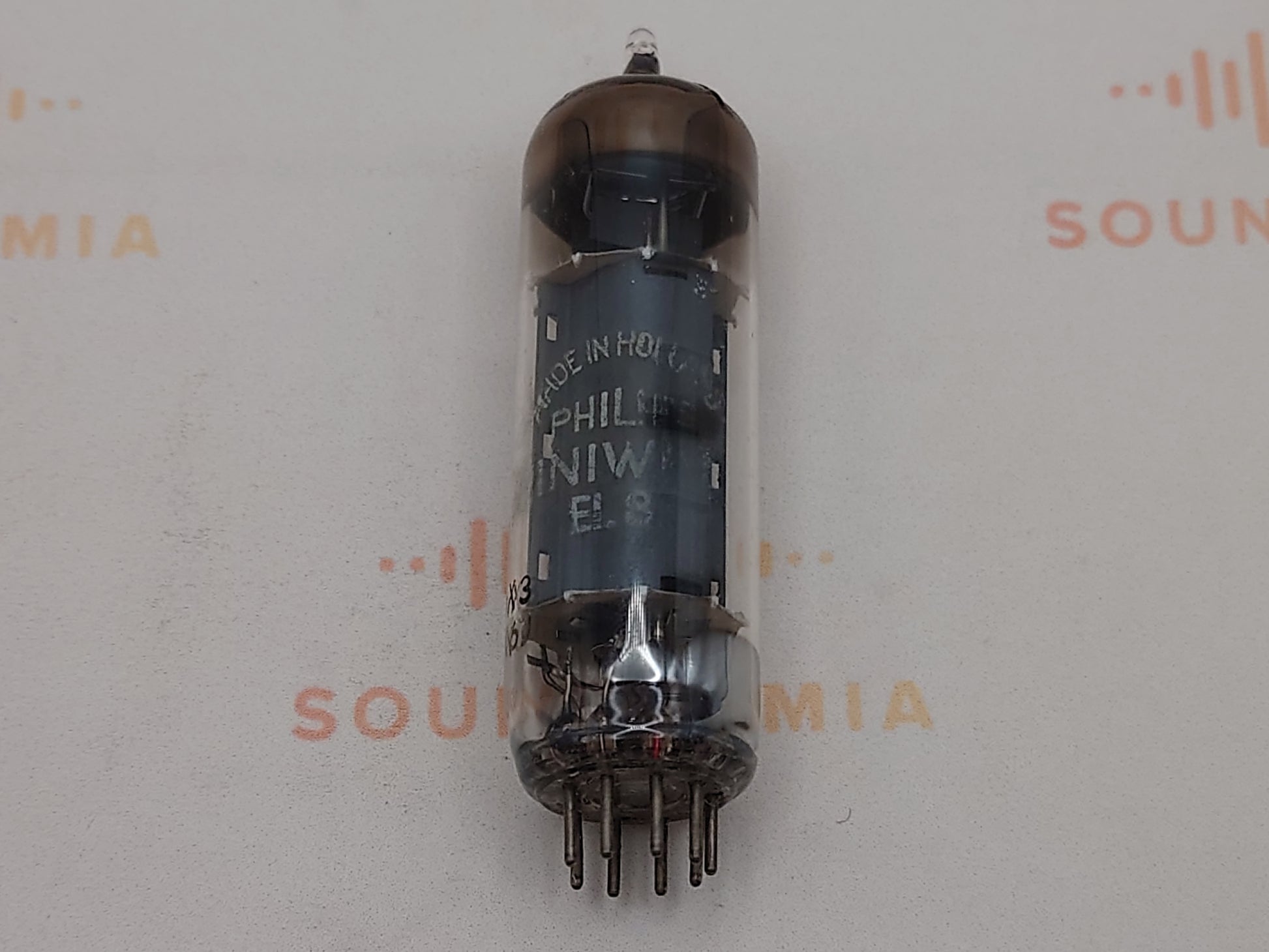

1x Philips Miniwatt EL84 6BQ5 D-getter - Sittard, NL 1958 rX3 - Strong
$88.50
Product Summary
Model: 1958 Philips EL84 6BQ5 (Made in Holland)
Soundlumia Tube Sound Rating: 9.0/10 - Outstanding
GM (Mutual Conductance) test result: 77% of NOS/NEW
Professional Tube Testing

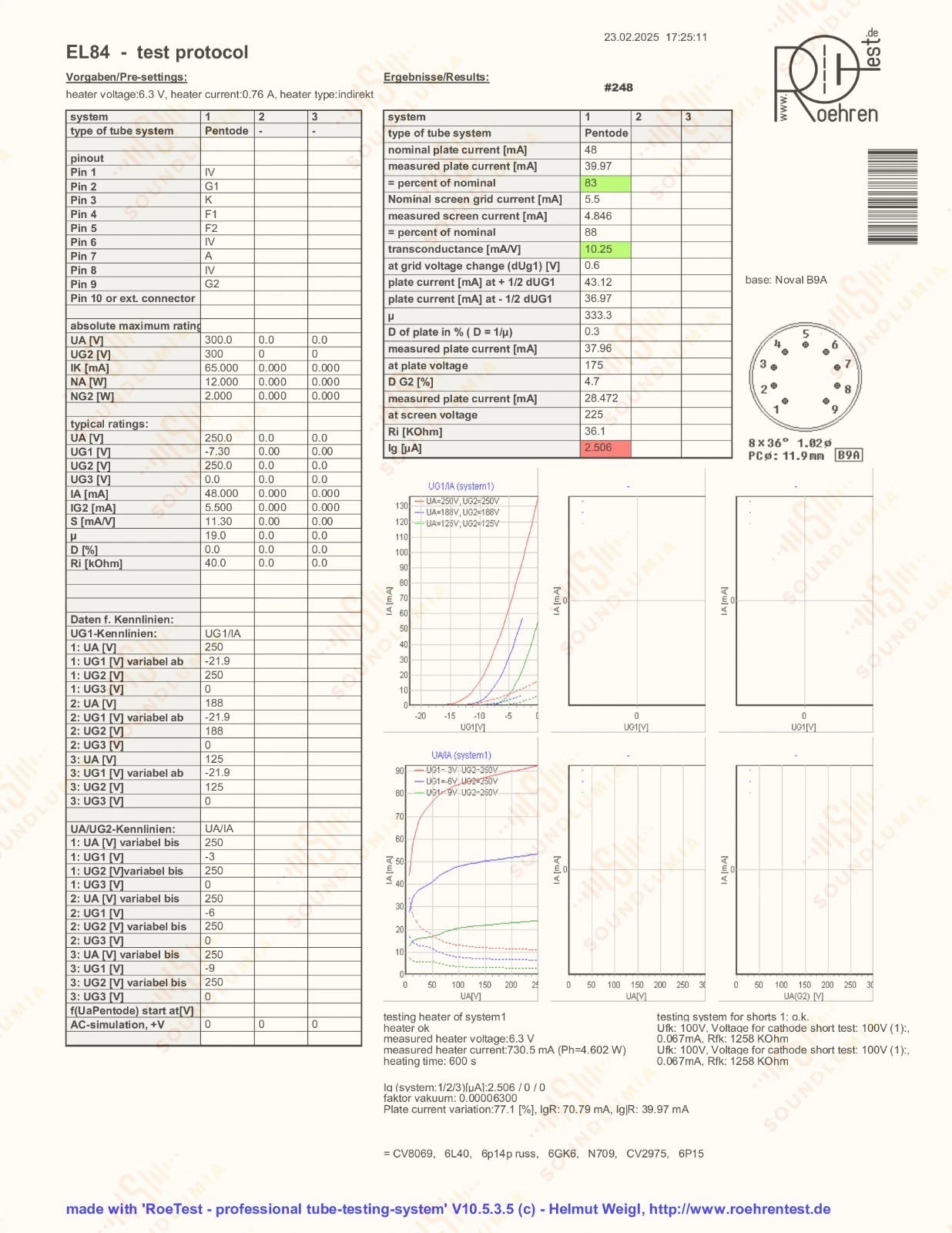

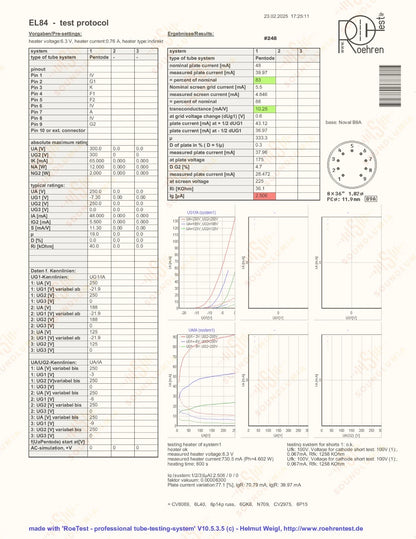

This set was tested and certified by RoeTest V11 tester with the following result:
Measured transconductance (GM): 8.75 mA/V - 77% (100% = 11.30 mA/V)
Measured plate current (IA): 38.17 mA - 80% (100% = 48mA)
NO shorts, leakage or gas. NO noise or microphonics.

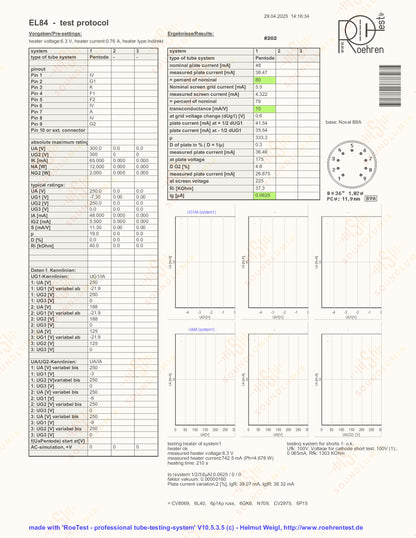

Curve trace is also included in the original RoeTest report.
Appearance & cosmetic condition
Silkscreen: 90% - 100%
Date code(s):
rX3 X8L (rX3 = EL84 Production Gen #3, X = Sittard, NL, 8 =1958, L = December)
Packaging: New white box
