4x Siemens ECC83 12AX7 Short Plates - I61 ‡1E/‡0D - Munich 1960s

4x Siemens ECC83 12AX7 Short Plates - I61 ‡1E/‡0D - Munich 1960s

Regular price $429.00 USD
Regular price Sale price $429.00 USD
Sale Sold out
Shipping calculated at checkout.

Sound Sample:

Product Summary

Stronger than time! This is the classic beauty in sound, admired by audiophiles for almost 60 years and will still be our top choice in the next 60 years. Particularly, the early '60s Siemens tone is considered the "reference sound" for serious classical listeners who need to upgrade the sound quality at phono stage.

Sound Characteristics

The airy and transparent sound produced by these vintage Siemens tubes has been unrivaled even to this day. The magically extended yet never tizzy highs, coupled with the slightly focused upper mid-range, deliver a clear presentation of the entire frequency spectrum, completed by the precise and deep controlled bass. And the most defining sound characteristic of Siemens ECC83 tubes is their ability to retrieve the deepest levels of detail in sound, and these hidden sonic layers can go a long way to revealing the subtle ambient clues that help complete building a truly 3D holographic presentation. While as quiet and analytical as the best Telefunken ECC83 tubes, Siemens ECC88's produce a warmer, smoother and more musical sound. To see how they compare to each other please also see Soundlumia's exclusive Telefunken ECC83 listings.

Professional Tube Testing

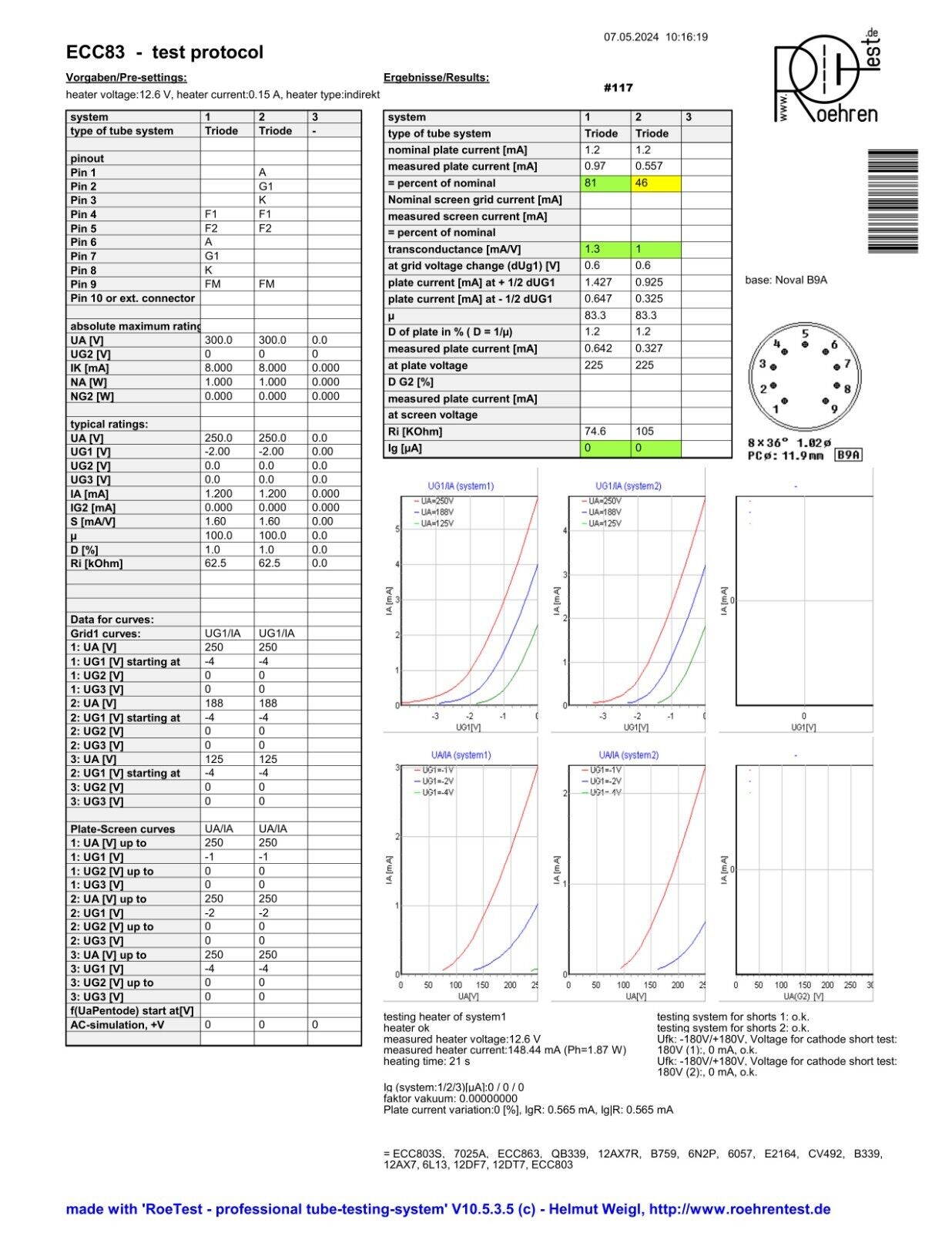

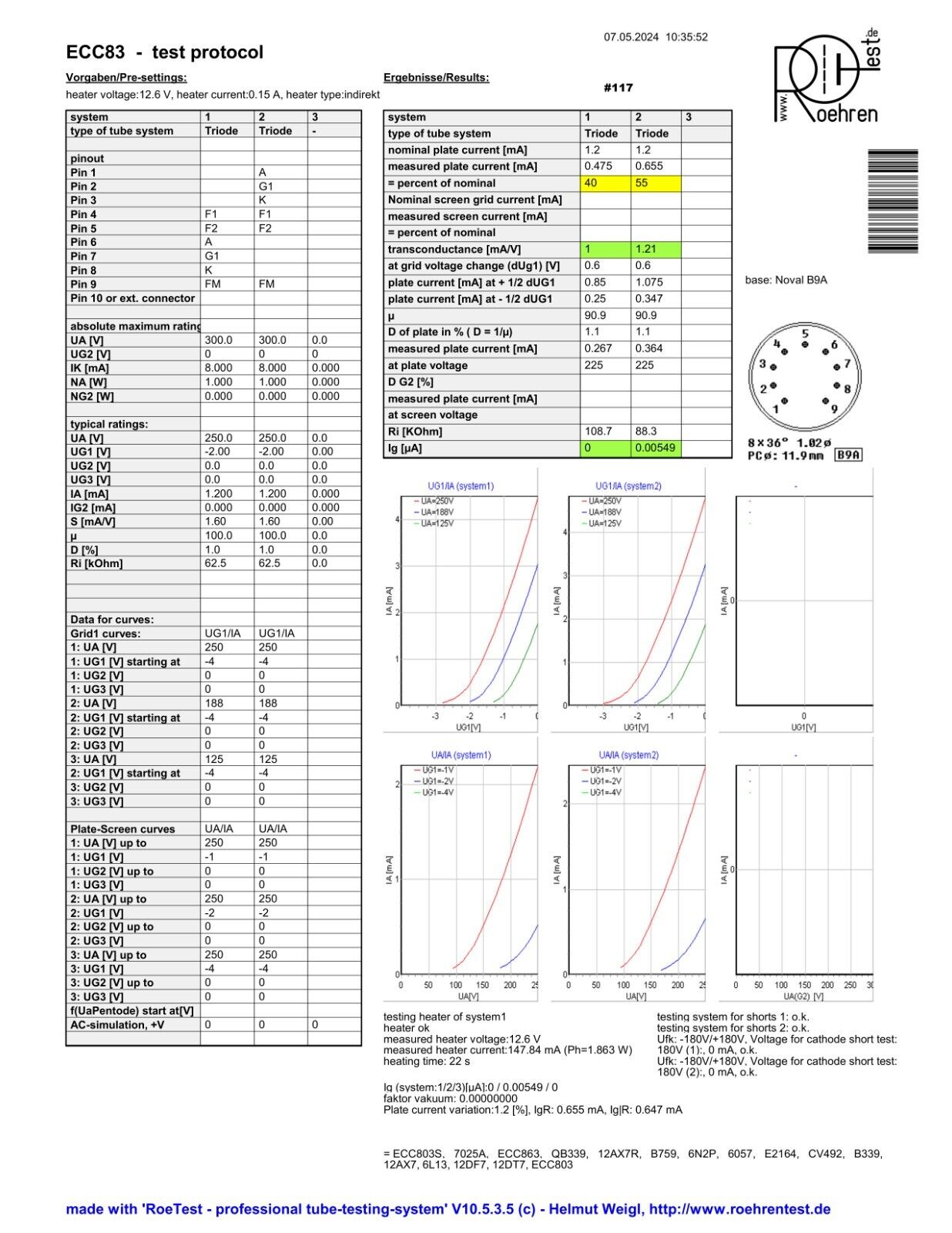

This set was tested and certified by RoeTest V11 tester with the following result:

Tube 1:

Measured transconductance (GM): 1.21/1.61 mA/V  - 76%/101%  (100% = 1.60 mA/V)
Measured plate current (IA): 0.715/1.135 mA  - 60%/95%  (100% = 1.20 mA)

Tube 2:

Measured transconductance (GM): 1.3/1.0 mA/V  - 82%/63%  (100% = 1.60 mA/V)
Measured plate current (IA): 0.97/1.557 mA  - 81%/46%  (100% = 1.20 mA)

Tube 3:

Measured transconductance (GM): 1.0/1.21 mA/V  - 63%/76%  (100% = 1.60 mA/V)
Measured plate current (IA): 0.475/0.655 mA  - 40%/55%  (100% = 1.20 mA)

Tube 4:

Measured transconductance (GM): 1.45/1.31 mA/V  - 91%/82%  (100% = 1.60 mA/V)
Measured plate current (IA): 0.977/0.865 mA  - 81%/72%  (100% = 1.20 mA)

NO shorts, leakage or gas. NO noise or microphonics.

Curve trace is also included in the original RoeTest report.

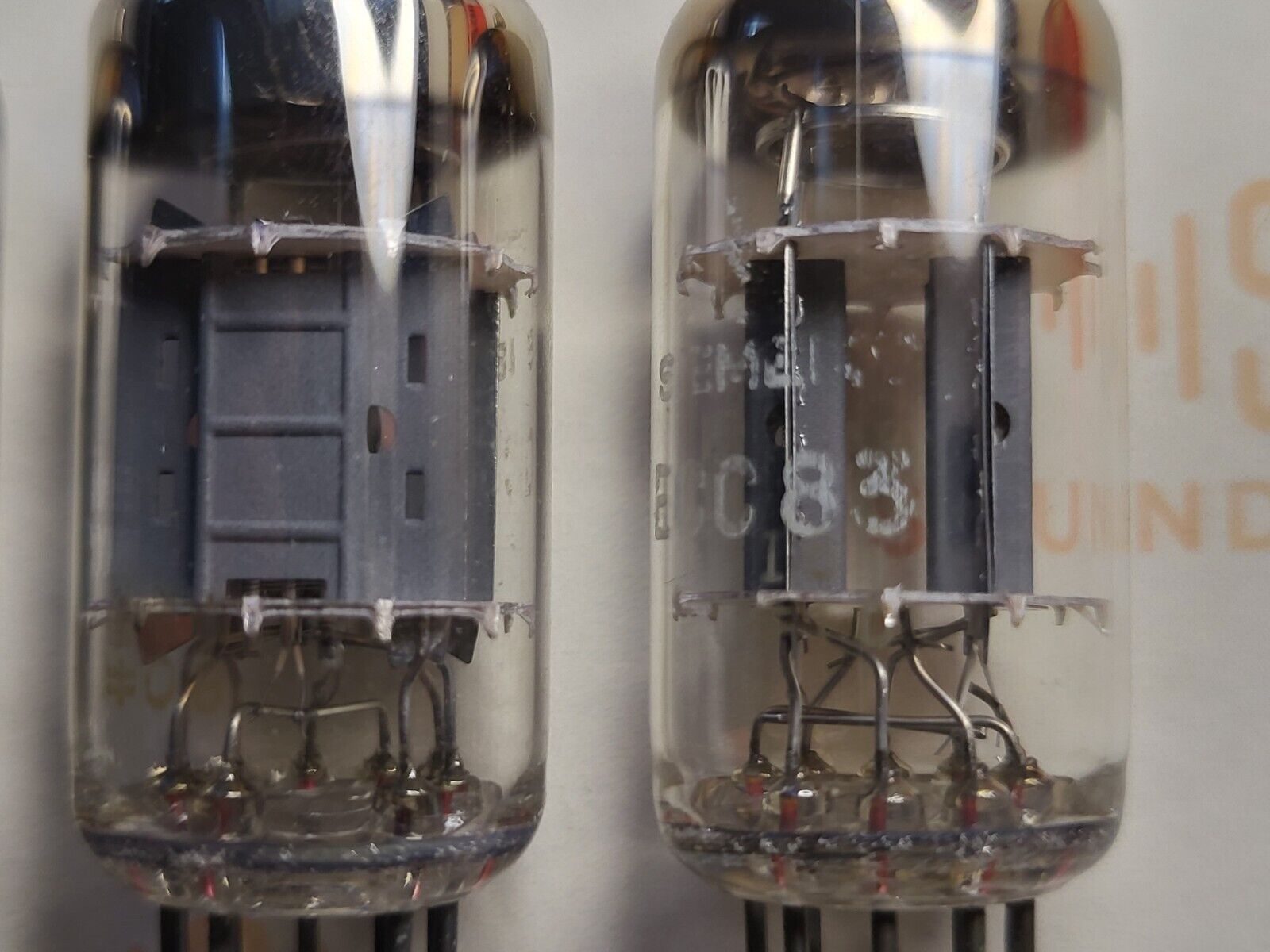

Appearance & Cosmetic condition

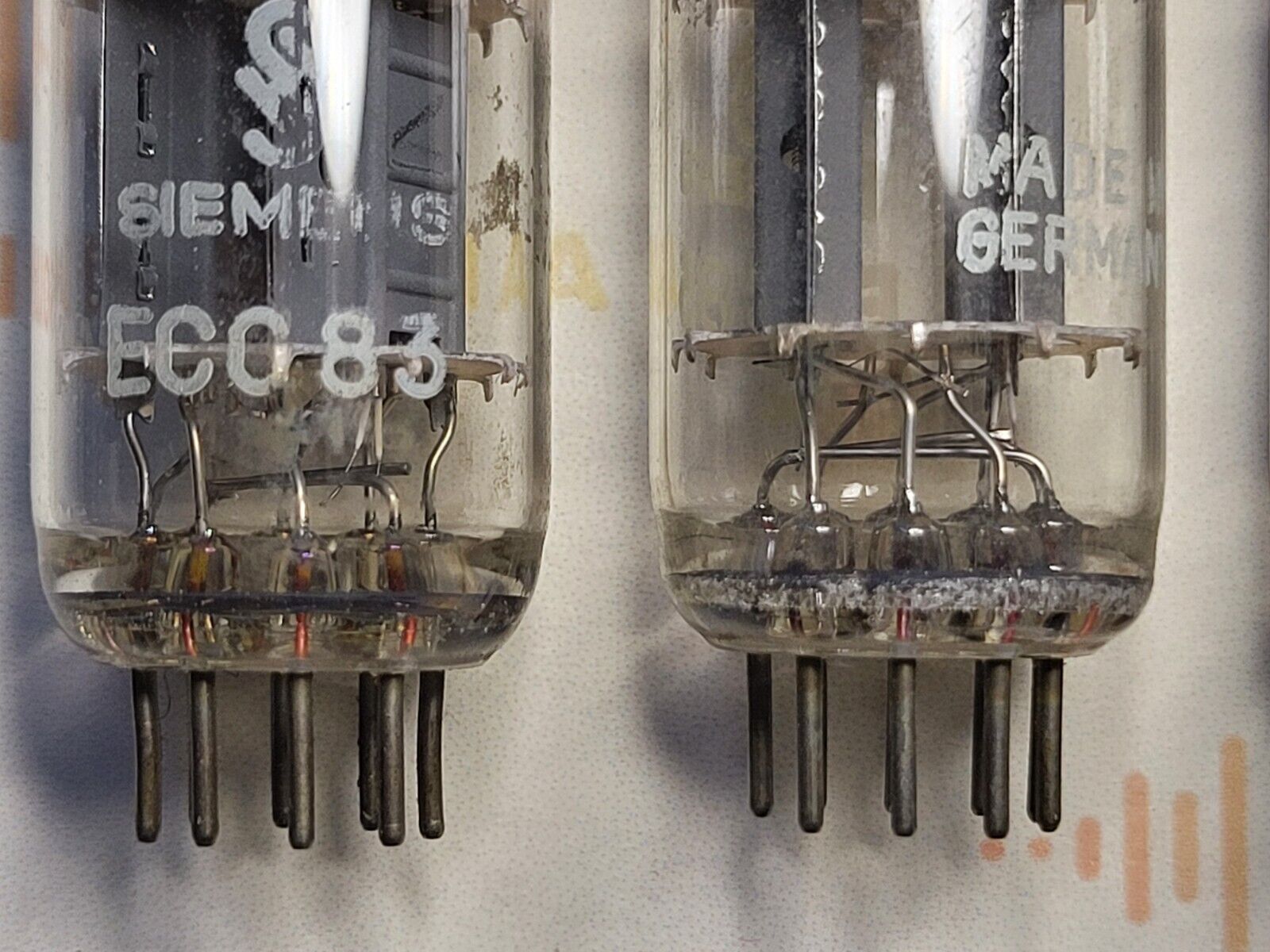

Although most of the silkscreen has worn off, the two-line mC6 date codes etched in glass are perfectly visible on both tubes.

Tubes 1-3: I61 ‡1E (I61 = ECC83 short plates gen #1, ‡ = Munich, 1 = 1961, E = May)
Tube 4:      I61 ‡0D (I61 = ECC83 short plates gen #1, ‡ = Munich, 0 = 1960, D = April)

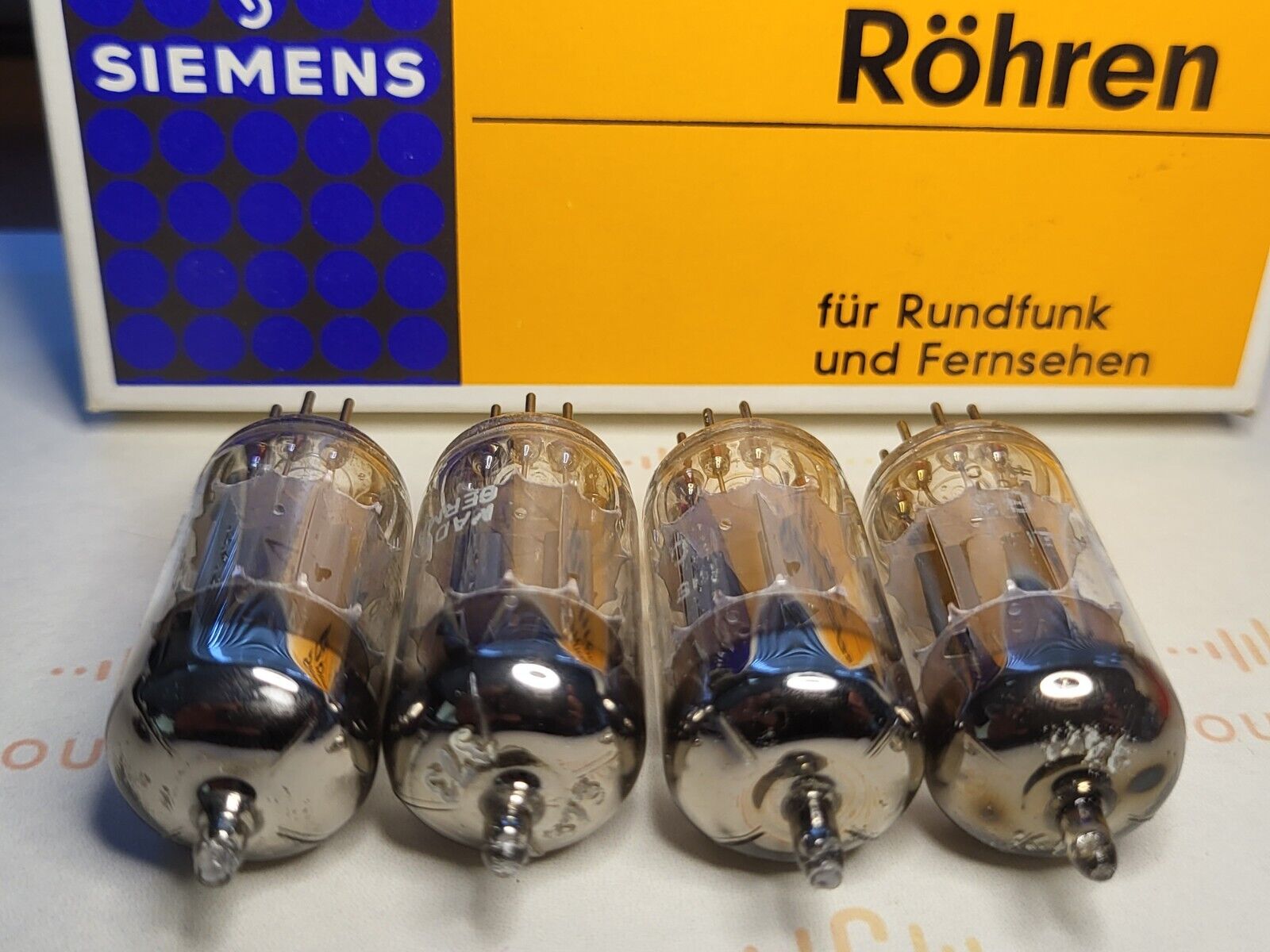

Packaging

NEW reproduction Siemens tube boxes.
